Cyber Power - SL950U - 950VA/510W Slim Line Standby UPS, 8 NEMA 5-15R Outlets, NEMA 5-15P Plug, 5 Ft Cord
Part number:
SL950U
Price:

950VA/510W Slim Line Standby UPS, 8 NEMA 5-15R Outlets, NEMA 5-15P Plug, 5 Ft Cord, 1 USB-A and one USB-C Charging Port, USB, PowerPanel Personal, 3 Yr Warranty. The CyberPower SL950U uninterruptible power supply (UPS) system provides surge protection for lightning-induced surges and other power events that can damage electronic equipment. This unit delivers enough battery backup to connected devices during a utility power failure, so you can perform a graceful shutdown to protect against the loss of data and damage to valuable electronics including computers, gaming consoles, and home networking equipment.

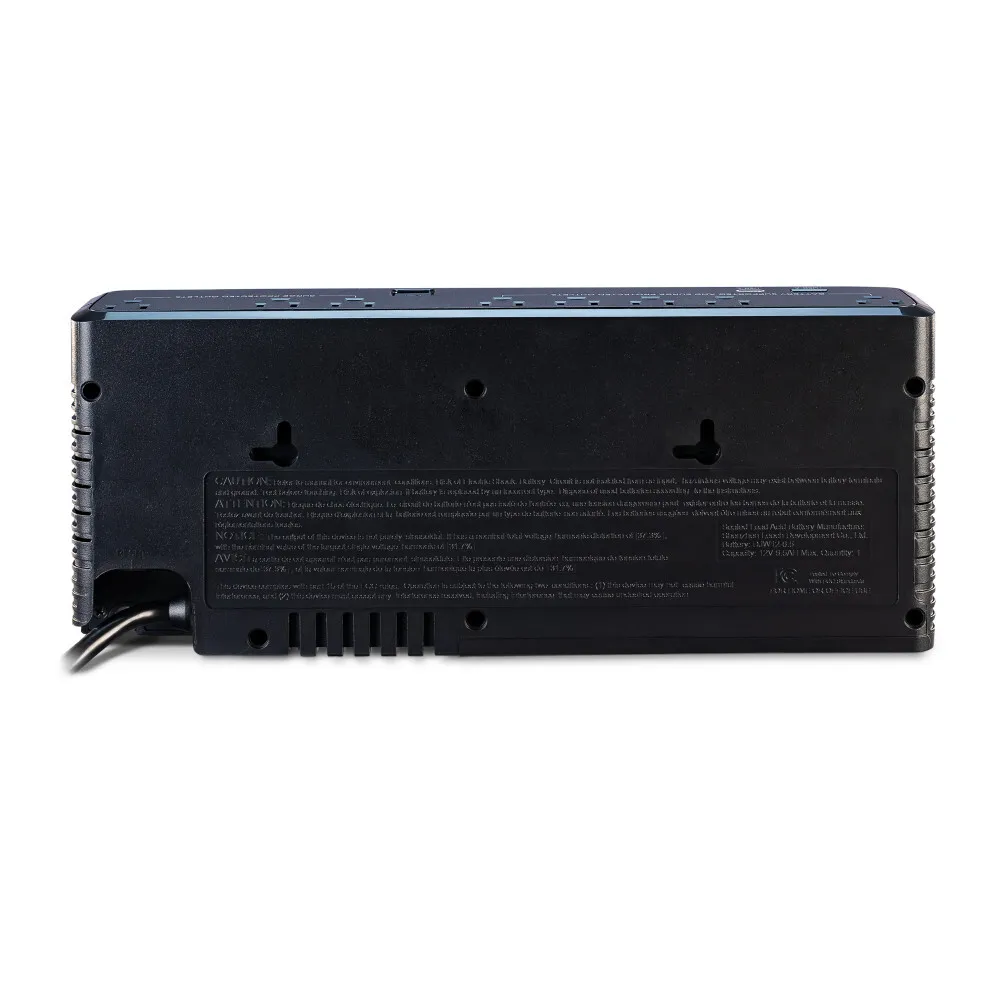

The SL950U has one USB-A and one USB-C charging port with 20W shared total output which gives you a faster charging time and can be used while on battery backup power. The slim profile and full-motion power cord allows for discrete installation and keyhole mounting slots allow for wall-mount applications as well.



With a $125,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the SL950U.

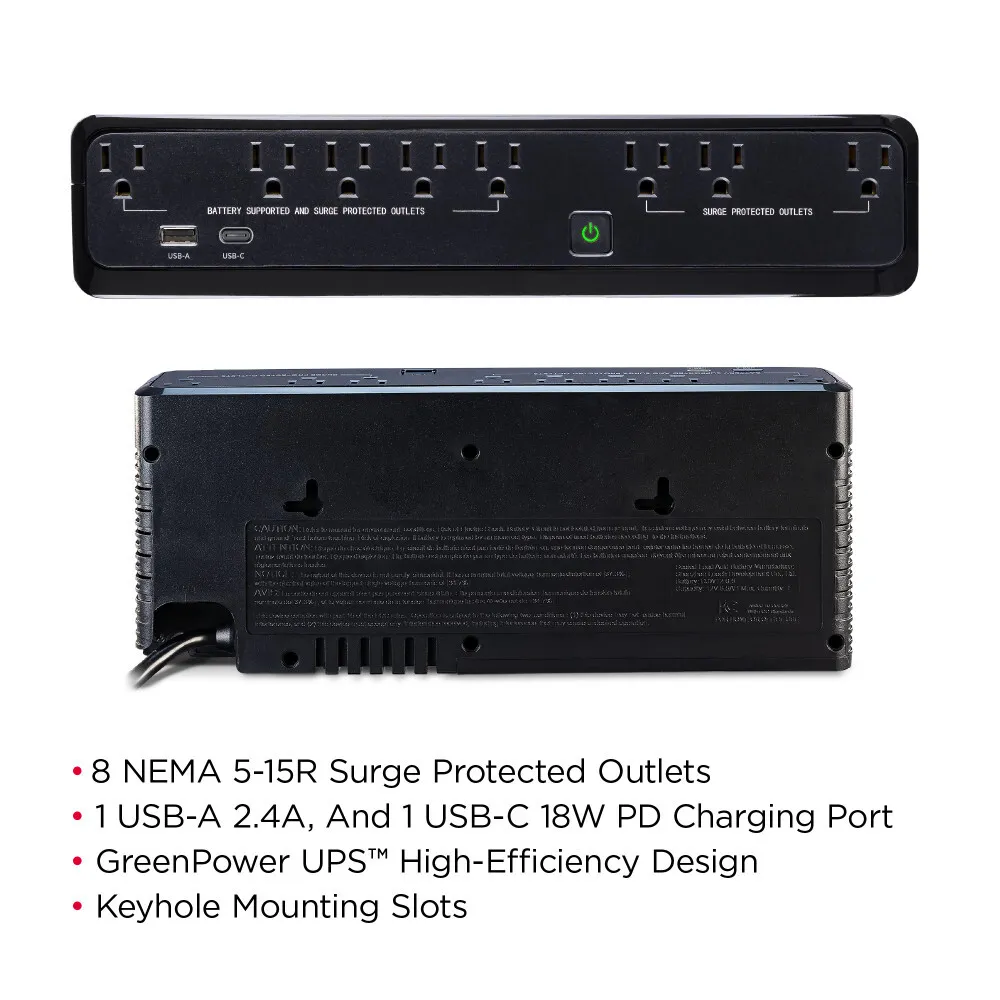

Features:

  • Battery Backup Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • USB Charge Ports Rapidly charge USB devices such as tablets (including iPad), smartphones, MP3 players, and other mobile accessories.
  • Widely Spaced Outlets Accommodates large transformer-based plugs without compromising the access of other outlets.
  • PowerPanel Personal Software Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available here.
  • GreenPower UPS High-Efficiency Design Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
  • ENERGY STAR This model is an ENERGY STAR® qualified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • Simulated Sine Wave Output Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • Three-Year Warranty CyberPower will replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
General
Energy SavingGreenPower UPS™ High-Efficiency
Energy Star CertifiedYes
UPS TopologyStandby
Battery
Battery Quantity1
Battery Size12 V / 6.5 Ah
Battery TypeSealed Lead-Acid Battery
Runtime at Full Load1 min
Runtime at Half Load8 min
Typical Recharge Time8 Hours
User Replaceable BatteryNo
Input
Circuit Breaker15 A
Cord Length5 ft (1.5 m)
Input Frequency Range47 Hz – 53 Hz
57 Hz – 63 Hz
Input Plug TypeNEMA 5-15P
Nominal Input Voltage120 VAC
Plug StyleRight Angle – 45° Offset
Output
On AC WaveFormSine Wave
On Battery Frequency50/60 Hz ± 1% (auto-sensing)
On Battery Voltage120 VAC ± 5%
On Battery WaveformSimulated Sine Wave
Outlet Type8 – NEMA 5-15R
Outlets – Battery & Surge Protected5
Outlets – Surge-Only Protected3
Outlets – Total8
Outlets – Widely Spaced2
Output Power Factor0.53
Overload ProtectionInternal Circuitry Limiting
Circuit Breaker Protected
Typical Transfer Time8 ms
USB Charge PortYes
USB Charge Port Amperage2.4 Amps (Shared)
USB Charge Port Quantity2
USB Charge Port StandardType A and Type C
USB Charge Port Type1 Type A
1 Type C
USB Charge Port Voltage5 VDC
USB Charge Port Watts20 Watts
VA950 VA
Watts510 W
Surge Protection & Filtering
EMI/RFI FiltrationYes
Surge Suppression (Joules)890 J
Management & Communications
Audible AlarmsBattery Mode
Low Battery
Overload
Fault
HID Compliant USB PortYes
LED IndicatorsPower On
Wiring Fault
Management CableUSB Cable
Software (Free Download)PowerPanel® Personal
Physical
ColorBlack
Form FactorCompact
Material of ConstructionPlastic

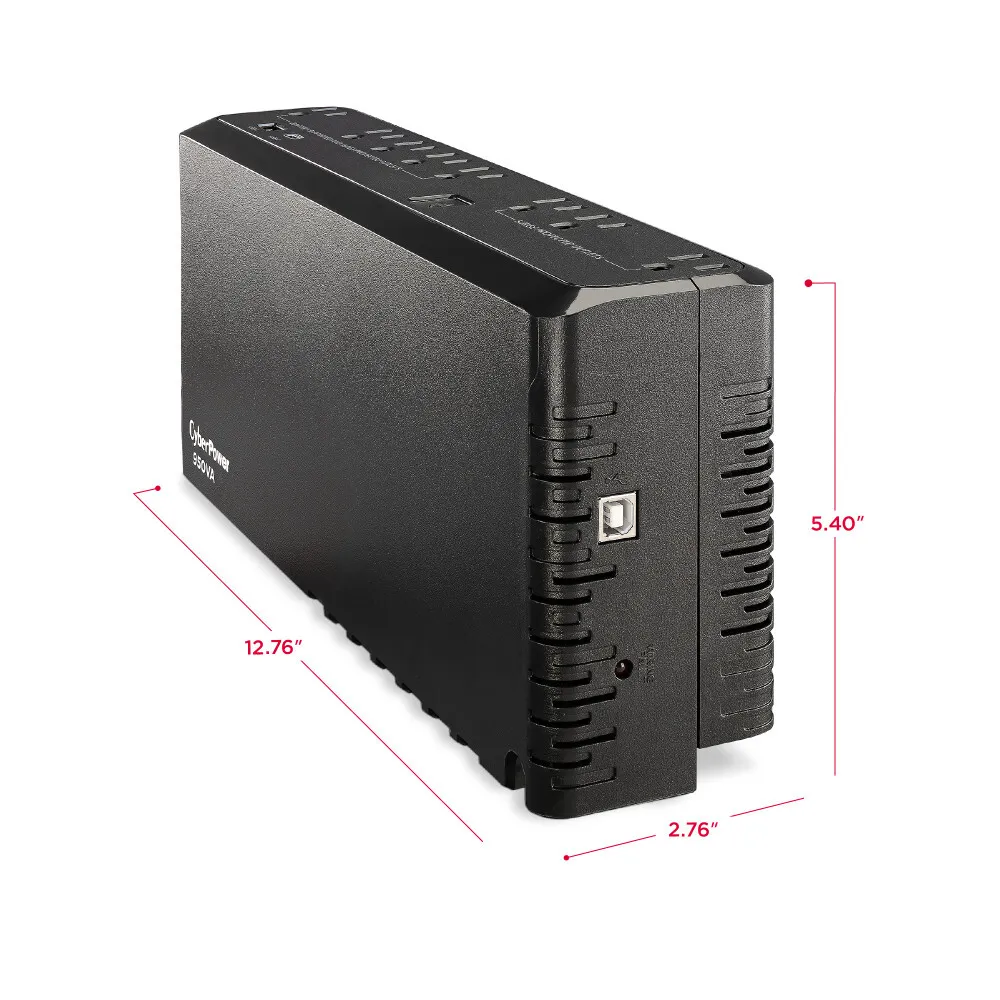

Dimensions
Physical Dimensions – (WxHxD) (cm)32.41 x 13.72 x 7.01 (cm)
Physical Dimensions – (WxHxD) (in)12.76 x 5.4 x 2.76 (in)
Physical Dimensions – (WxHxD) (mm)324 x 137 x 70 (mm)
Physical Weight (kg)3.2
Physical Weight (lb)7.05
Dimensions – Shipping
Shipping – Weight (kg)3.81
Shipping – Weight (lb)8.4
Shipping Dimensions – (WxHxD) (cm)35.88 x 14.92 x 17.15 (cm)
Shipping Dimensions – (WxHxD) (in)14.125 x 5.875 x 6.75 (in)
Shipping Dimensions – (WxHxD) (mm)358.78 x 149.23 x 171.45 (mm)
Environmental
Operating Elevation0 – 10000 ft (0 – 3048 m)
Operating Relative Humidity0 – 95 % (non-condensing)
Operating Temperature32 – 104 °F (0 – 40 °C)
Storage Elevation0 – 50000 ft (0 – 15239 m)
Storage Relative Humidity0 – 95% (non-condensing)
Storage Temperature5 – 113 °F (-15 – 45 °C)
Certifications
EnvironmentalRoHS Compliant
SafetyUL1778
cUL
FCC DOC Class B
CEC
Warranty
CEG Amount$125000
Connected Equipment GuaranteeLifetime
Extended Warranty OptionWEXT5YR-U1B
Product Warranty3 Year Limited Warranty
