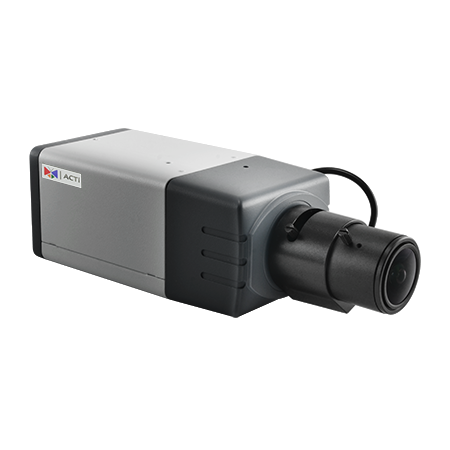

ACTI - E271 - 10MP with D/N, Basic WDR, Vari-focal Lens
Part number:
E271
Price:
10MP Box with D/N, Basic WDR, Vari-focal lens, f3.1-13.3mm/F1.4-4.0 (HOV:100.5°-26.2°), DC iris, H.264, 1080p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE, DI/DO
Features:
- 10 Megapixel
- Day & Night
- Vari-focal Lens with f3.1-13.3mm/F1.4-F4.0, DC iris
- Basic WDR
- Super wide angle
- Event trigger, response and notification
| Device | |
| Product Type | Hemispheric Dome |
| Maximum Resolution | 12MP |
| Product Application | Face, People and Car Detection |
| Application Environment | Outdoor |
| Description | |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.7 " |
| Effective Pixels | 4072(H) X 3046(V) (12.4 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 10m |
| Electronic Shutter | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 3000 TVL |
| Lens |
| Focal Length | Fixed focal, f1.65mm |
| Aperture | F2.8 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 198.5° (overview area) 121.1° (high detail area) |
| Viewing Angle Adjustment | Rotation: -175°-175° |
| Video |
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | (Fisheye View) 30 fps at 3000 x 3000 30 fps at 2048 x 2048 30 fps at 1024 x 1024 30 fps at 640 x 640 (Dewarped View) 30 fps at 4096 x 2160 (4K Ultra HD) 30 fps at 3840 x 2160 (4K Ultra HD) 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 (ePTZ View) 30 fps at 800 x 600 30 fps at 640 x 480 |
| View Mode | Fisheye View Dewarped View 270-degree Corner View Multiple View ePTZ View |
| Multi-Streaming | Simultaneous triple streams based on three configurations |
| Bit Rate | 128Kbps - 12Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | Yes, 4 configurable regions |
| Text Overlay | Yes |
| On-Screen Graphics | Yes |
| Built-in Analytics | People Detection, Car Detection, Face Detection*, Crowd Detection*, Tampering Detection |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror |
| Audio |
| Audio Type | 2-way, Built-in Microphone, Mic-in, Line-in, Line-out |
| Network |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
| Video Analytics |
| Analysis Source Type | Video |
| Metadata Accuracy | Standard |
| Event |
| Event Trigger | Video motion detection (3 regions), External device through digital input, Sound detection, Tampering detection, Intelligent event detection, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file* (* To be available through future firmware upgrade), Push notification to mobile device, Save video to local storage, Upload video to NVR server* (* To be available through future firmware upgrade), Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| GPS Position | Manual setting |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile Q |
| Web Browser | IE 11 |
| Interface |
| Analog Video Output | 1 x CVBS, Terminal block |
| Local Storage | MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB) |
| Digital Input/Output | 1/1 (Terminal block) |
| General |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 12.95 W (PoE) |
| Weight | 954g (2.103lb) |
| Dimensions | (Ø x H): 152.00mm x 71.00mm (6.0" x 2.8") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Mount Type | Surface, Rough Surface, Gang Box, Pendant, Tilted Mount, Wall Mount, Pole Mount, Corner Mount |
| Starting Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Approvals | CE, FCC, IP68, NEMA 4X, IK10 |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * To be available through future firmware upgrade |
