N95S1RW86LFD32D
Part number:
N95S1RW86LFD32D
Price:

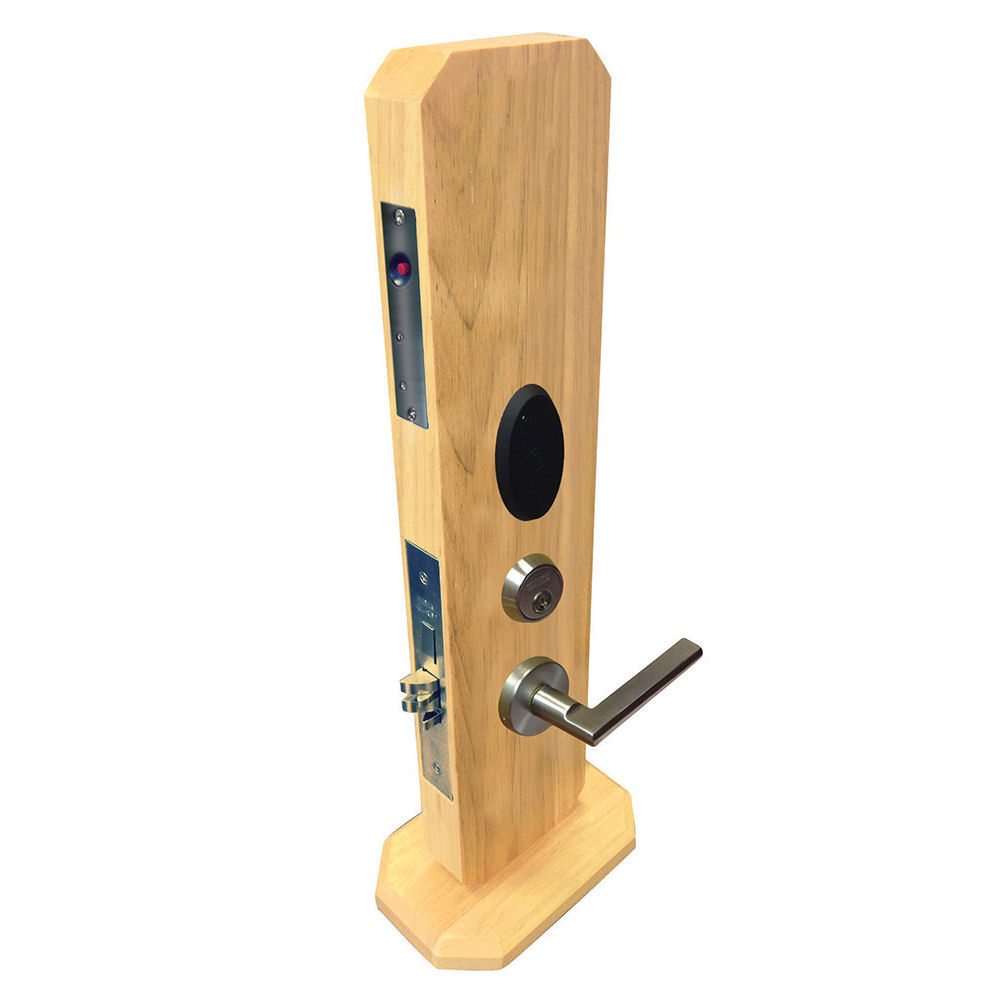

Door Lock, Electronic, Mortise, Surface Mount, Prox Oval, Left Hand, 5000 User Code, Satin Chrome Plated, With 2-9/16" x 7/16" Rose, 2-9/16" x 3-1/8" Crescent Trim



ArchiTech Series Networx Locks are an ideal access control solution; elegantly blending advanced wireless access control convenience within any décor, in an attractive, infinitely customizable designer locking form factor, in choice of trims and finishes. Ideal for educational, commercial office or multi-dwelling residential settings, these stylish, durable locks, leveraging proven Trilogy Networx™ access control technology, offer a choice of ID credential technology, and can be used to control access a door at a time; across a wireless network; or as an integral part of a new or existing enterprise security system spanning a few, or thousands of doors, in one building, a campus or multiple sites around the world.



Features:

  • Architechtural style - whether your new or existing building's style is fresh, clean and contemporary or resplendent with old world charm, there are over 300+ architectural finishes, cylindrical and mortise locks, levers and trims to choose from, to make a custom look all your own.
  • Models for any door & andy application - Architech is available in cylindrical and mortise models for wood and metal doors, with wireless surface mount or mortised-in electronics and batteries
  • Easy Keyless Credentials - ArichTech's Prox ID Reader, in oval or rectangular styles, will adapt to multiple access control credentials technologies, today and tommorrow: Prox, Mag Stripe, Smart Cards, PIV, keyfobs and remote buttons, etc. - so those those who use them will always do so with simplicity and superior security
  • Flexible System Management - The ArchiTech Series Access System can be programmed and managed locally using a USB Gateway or remotely across a wireless network (using free Alarm Lock DL-WINDOWS Windows-based software) or integrated on an enterprise class IT environment, using either Continental Access CA4K, or Lenel OnGuard
Cylinder Type6-PIN STD CYLINDER
DesignCURVED-IN LEVER
FinishUS32D SATIN STAINLESS STEEL
FunctionAPARTMENT
GradeANSI GRADE 1
KeywayOTHER KEYWAY
Locking StateFAIL-SECURE (POWER TO UNLOCK)
Product TypeELECTRIFIED MORTISE CARD LOCK
UL ListingUL LISTED
Solenoid DutyINTERMITTENT DUTY
VoltageBATTERY
UNSPSC Code46171500
Name
Description
Size
Downloads
File
Datasheet
1.2mb
File
ArchiTech Mobile Access
0.3mb
