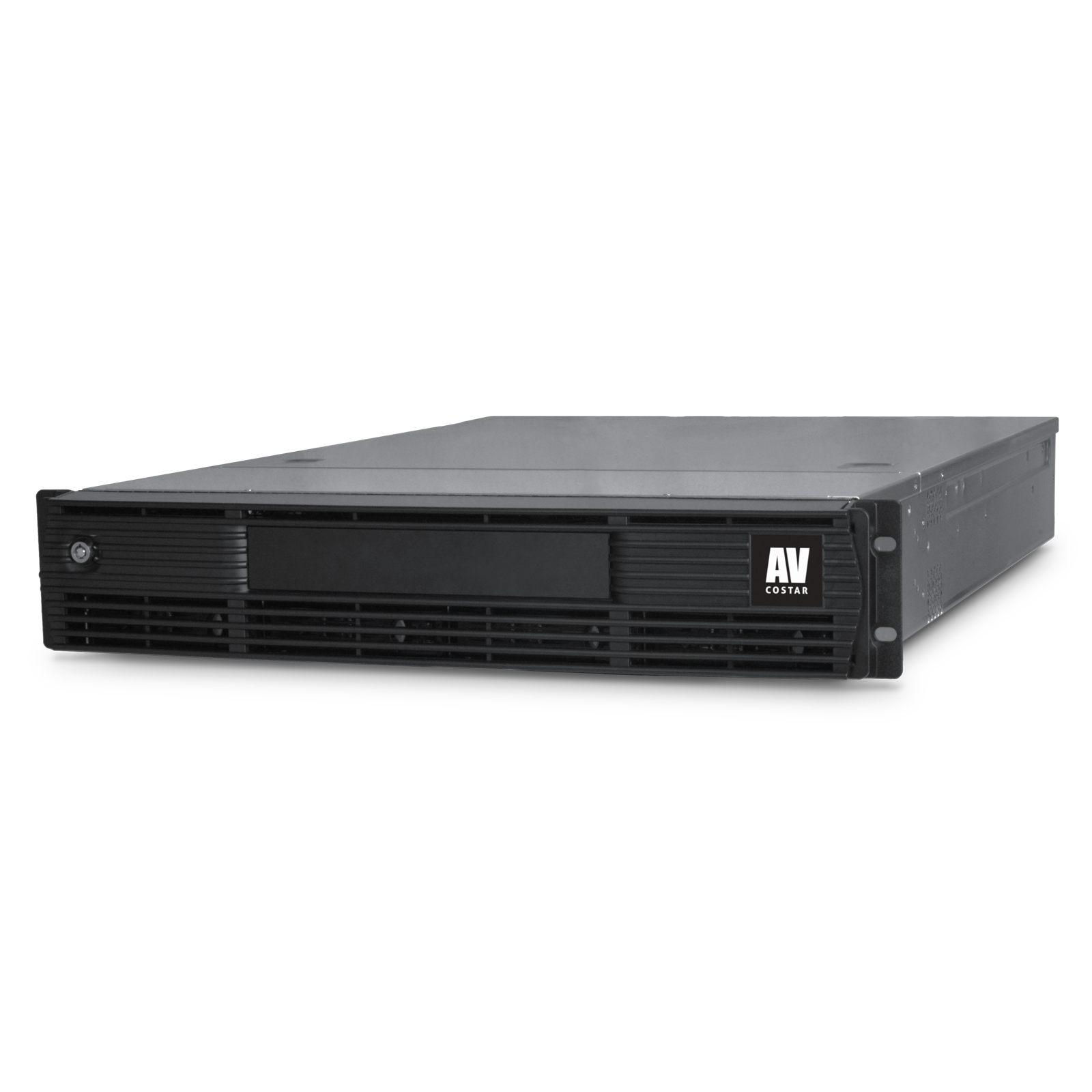

Arecont Vision - AV-CSHPX84TR - 2U Enterprise Server, Windows, 84TB RAID5, (Recording Licenses Not Included)
Part number:
AV-CSHPX84TR
Price:

AV Costar ConteraCMR Cloud Managed servers are designed to offer maximum performance and reliability, paired with the powerful features and functionality of the ConteraWS web services platform. ConteraWS web services allows you to centralize user management, monitor the health of your recording system, and take advantage of time saving feature like online export and video or clip file sharing. Simply enable ConteraWS on your recorder, and then connect using the ConteraWS web client to manage recorder configurations and user access.



Features:

  • NDAA Compliant
  • Cloud Management with ConteraWS
  • ConteraVMS Ready
  • Cloud Video Export and Sharing
  • 84TB Storage Capacity (42TB Usable with RAID5 Redundant Backup)
  • 4 Removable Hard Disk Drives (HDDs)
  • Windows OS
  • 64 Max Channel Count (Upgradeable to 128)
  • IP Channel Upgrades
  • Solid State OS Drive (SSD)
  • DVD-ROM Drive
  • RAID5
  • Intel Core i7 Processor
  • Dual NIC
  • 2U Rack Mountable
  • 3-Year Hardware Warranty
  • 1-Year Advanced Replacement
Specifications
General
Keyboard and MouseIncluded
DVD DriveYes
Operating TemperatureMax temperature: 104°F (40°C)
OS Drive ConfigurationDedicated Solid State Drive
Maximum Storage ConfigurationJBOD84TB
Electrical
Input VoltageStandard650W (100V–240V auto switching)
Redundant875W (100V–240V auto switching)
Power ConsumptionJBOD160W max
RAID175W max
Compliance
IP Camera SupportAV Costar / ONVIF Profile S / RTSP
CertificationETL (Intertek) certified
CoOMade in the USA
Mechanical

Dimensions

(See Dimensions)

Unit17.2" W (438mm) x 3.5" H (88mm) x 26" L (660mm)
Packaged24" W (610mm) x 8" H (203mm) x 34" L (864mm)
WeightUnit43lbs (19.5kg)
Packaged58lbs (26.3kg)
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
Quick Guide
0.8mb
