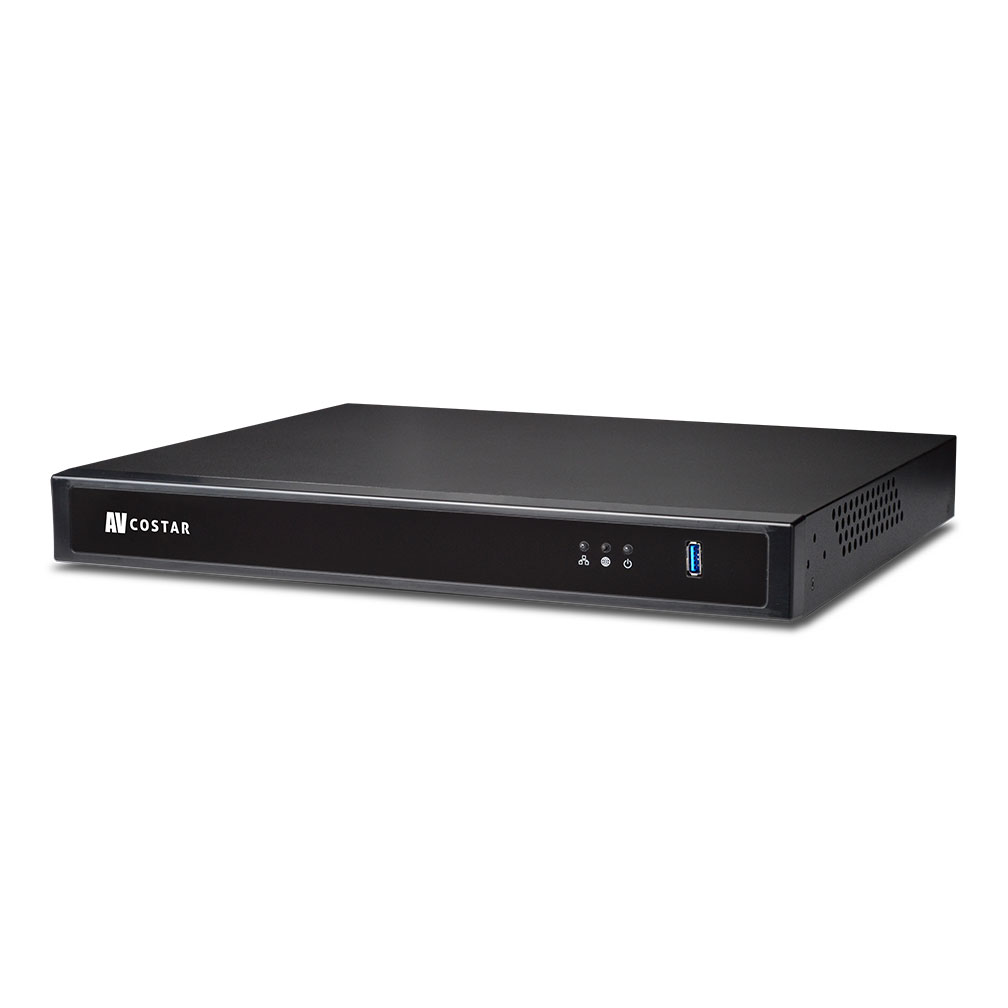

Arecont Vision - AV-CV-24T - NVR Appliance, Linux OS, 24TB, 100 Mbps (Required Camera Licenses sold separately, 24 max)
Part number:
AV-CV-24T
Price:
AV Costar's ConteraCMR Cloud Managed servers are designed to offer maximum performance and reliability, paired with the powerful features and functionality of the ConteraWS web services platform. ConteraWS web services allow you to centralize user management, monitor the health of your recording system, and take advantage of time-saving features like online export and video or clip file sharing. Simply enable ConteraWS on your recorder, and then connect using the ConteraWS web client to manage recorder configurations and user access.
Features:
- NDAA Compliant
- 1-Year Advanced Replacement
- 3-Year Hardware Warranty
- Dual NIC
- Intel Celeron Processor
- Solid State OS Drive (SSD)
- 24 Max Channel Count
- Linux OS
- 2 Hard Disk Drives (HDDs)
- 1U Rack Mountable
- 24TB Storage Capacity
- ConteraVMS Ready
- IP Channel Upgrades
- Cloud Video Export and Sharing
- Cloud Management with ConteraWS
| General | ||
| Network | Dual NIC | Dual gigabit NICs |
| PoE | Single gigabit NIC + 8 or 16 Port PoE Switch | |
| Keyboard and Mouse | Included | |
| DVD Drive | N/A | |
| PoE Switch Load | 8CH | 120W |
| 16CH | 200W | |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C) | |
| OS Drive Configuration | eMMC SSD | |
| Storage Configuration | Dual NIC | Up to 20TB |
| 8CH PoE | Up to 16TB | |
| 16CH PoE | Up to 20TB | |
| Mounting Hardware | Rack mount installation kit included | |
| Warranty | 3 Years, 1 year advanced replacement | |
| System Control | Keyboard, mouse (included) | |
| Compliance | ||
| IP Camera Support | AV Costar / ONVIF Profile S / RTSP |
| Certification | UL certified, CE, FCC |
| CoO | Made in Taiwan |
| Electrical | |
Power Consumption | Dual NIC | 40W max |
| 8CH PoE | 160W max | |
| 16CH PoE | 240W max | |
| Power Supply | Dual NIC | 60W external (Input: 100-240V, 2.0A, 50/60Hz) |
| 8CH PoE | 200W internal (Input: 100~240VAC, 3.5A, 50-60Hz) | |
| 16CH PoE | 280W internal (Input: 100~240VAC, 6.3A, 50-60Hz) | |
| Mechanical | ||
Dimensions (See Dimensions) | Unit | 14.4″ W (366mm) x 1.8″ H (46mm) x 12.6″ L (316mm) | |
| Packaged | 22″ W (558.8mm) x 8″ H (203.2mm) x 22″ L (558.8mm) | ||
| Weight | Dual NIC | Unit | 8.2lbs (1.59kg) |
| Packaged | 18lbs (8.16kg) | ||
| 8CH PoE | Unit | 8.6lbs (1.59kg) | |
| Packaged | 18lbs (8.16kg) | ||
| 16CH PoE | Unit | 9lbs (2.27kg) | |
| Packaged | 18lbs (8.16kg) | ||
