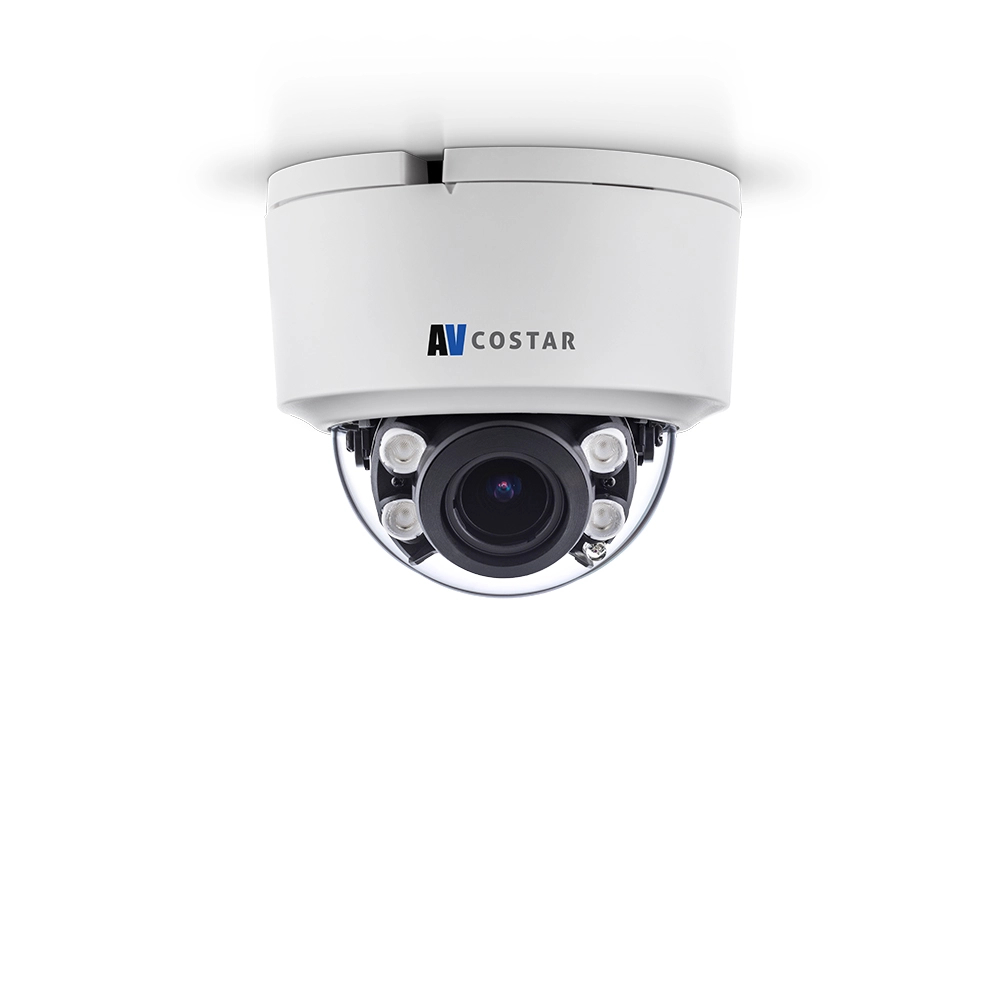

The Contera Indoor Dome megapixel camera features 1080p and 5-megapixel (MP) resolution for optimum performance. The Contera Indoor Dome combines a day/night mechanical IR cut filter with an integrated motorized remote focus and zoom varifocal lens for excellent, optimal image quality. Regardless of the time of day, the Contera Indoor Dome is prepared for any lighting condition. For applications with poor lighting conditions, Enhanced WDR (wide dynamic range) at 120dB provides the best visual balance to shaded and bright light conditions. For clear color images in low-light, NightView offers strong low-light sensitivity for capturing details in extremely poor-lit scenes. Built-in Smart IR LED illumination automatically adjusts output in response to the distance of an object in view to prevent over-exposure when the object is very close to the camera.
Arecont Vision was the first to bring H.264 to the mainstream market and recently developed SNAPstream (Smart Noise Adaptation and Processing) technology for reducing bandwidth without impacting image quality. Today we are proud to offer our next generation H.265 with SNAPstream+ smart codec capable of delivering high quality video while saving over 50% of the data rate to reduce or prevent strain on the network.
The SD card slot supports up to 256GB of storage capacity for convenient onboard storage. The camera’s power can be supplied via a Power-over-Ethernet (PoE - IEEE 802.3af) compliant network cable connection.
Features:
- 5MP Resolution
- Remote Focus/Zoom Motorized Lens
- SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
- NightView for Strong Low Light Performance
- True Day/Night Functionality with Mechanical IR Cut Filter
- Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
- On-Screen Display (OSD)
- Defog Technology
- Triple Encoder: H.265/H.264/MJPEG
- Network Protocols Include SNMP, IPv6, HTTPS, DHCP, 802.1x, and More
- All-in-One H.265/H.264 PoE Solution
- Smart IR Illumination with Variable Illumination Ensures that IR Light is Evenly Disbursed up to 66ft (20m) for Scenes with Low or No Ambient Light
- SDXC Card Slot for Onboard Storage
| Camera Imaging Specifications | |||
| Model | AV02CID-100 | AV05CID-100 | |
| Image Sensor | 1080p (2.1MP) CMOS Progressive Sensor | 5MP CMOS Progressive Sensor | |
| Optical Format | 1/2.8" | 1/2.9" | |
| Minimum | Color (Day Mode) | 0.05 Lux | 0.1 Lux |
| Illumination | B/W (Night Mode) | 0.005 Lux | 0.01 Lux |
| Full FOV Resolution | 1920 H x 1080 V | 2592 H x 1944 V | |
| Scaling (See Scaling Resolutions Below) | Yes | Yes | |
| IR Illumination | Yes | Yes | |
| Dynamic Range | 120dB | 120dB | |
| Frame Rates* | Single Stream | Up to 30fps (1080p) | Up to 30fps (5MP)** |
| Multi-Stream | Up to 30fps (1080p) + 15fps (1080p) | Up to 15fps (5MP)** + 10fps (5MP)** | |
| Up to 30fps (1080p) + 30fps (720p) + 30fps (VGA) | Up to 30fps (1080p)** + 30fps (720p)** + 30fps (VGA)** | ||
| Lens | Motorized Lens | 2.7–13.5mm, F1.3, H-FOV = 28°–105°, V-FOV = 16°–56°, Fixed Iris | 2.7–13.5mm, F1.3, H-FOV = 22°–79°, V-FOV = 16°–59°, Fixed Iris |
Data Transmission
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP/Smart ROI |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, |
| RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure | |
| 10/100Base-T Ethernet network interface, RJ45 | |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
Event Management
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS/SD card, record |
| JPG/mp4 |
Compliance
| Industry Standard | ONVIF Profile S, G, Q, T conformant |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | CE: EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3, |
| EN60950 |
Environmental
| Operating Temperature | -10°C (14°F) to +50°C (122°F) |
| Humidity | 10% to 90% (non-condensing) |
| Storage Temperature | -10°C (14°F) to +60°C (140°F) |
General Electrical
| Alarm Input/Output | 1 input (dry contact)/1 output (dry contact) on pigtail cable | |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 | |
| Total PoE solution (no external power requirement) | ||
| Power Consumption | 1080p | 6.9W PoE max |
| 5MP | 7.7W PoE max | |
| Mechanical | ||
| Casing | Plastic surface mount chassis with polycarbonate dome bubble | |
| Gimbal | Easy 3-axis camera adjustment with 350° pan, and 60° tilt, and | |
| 350° Z-rotation | ||
| Dimensions | ||
| Unit | Ø 4.52" (114.8mm) x 3.65" H (92.6mm) | |
| (See Dimensions) | ||
| Packaged | 6.1" W (155mm) x 6.5" H (165mm) x 6.0" D (152mm) | |
| Weight | ||
| Unit | 0.79lbs (0.36kg) | |
| Packaged | 1.21lbs (0.55kg) | |
| On Board Storage | SDXC slot up to 256GB (card not included) | |
| Body Color | ||
| Arecont Vision® White (Pantone P179-1C) | ||
