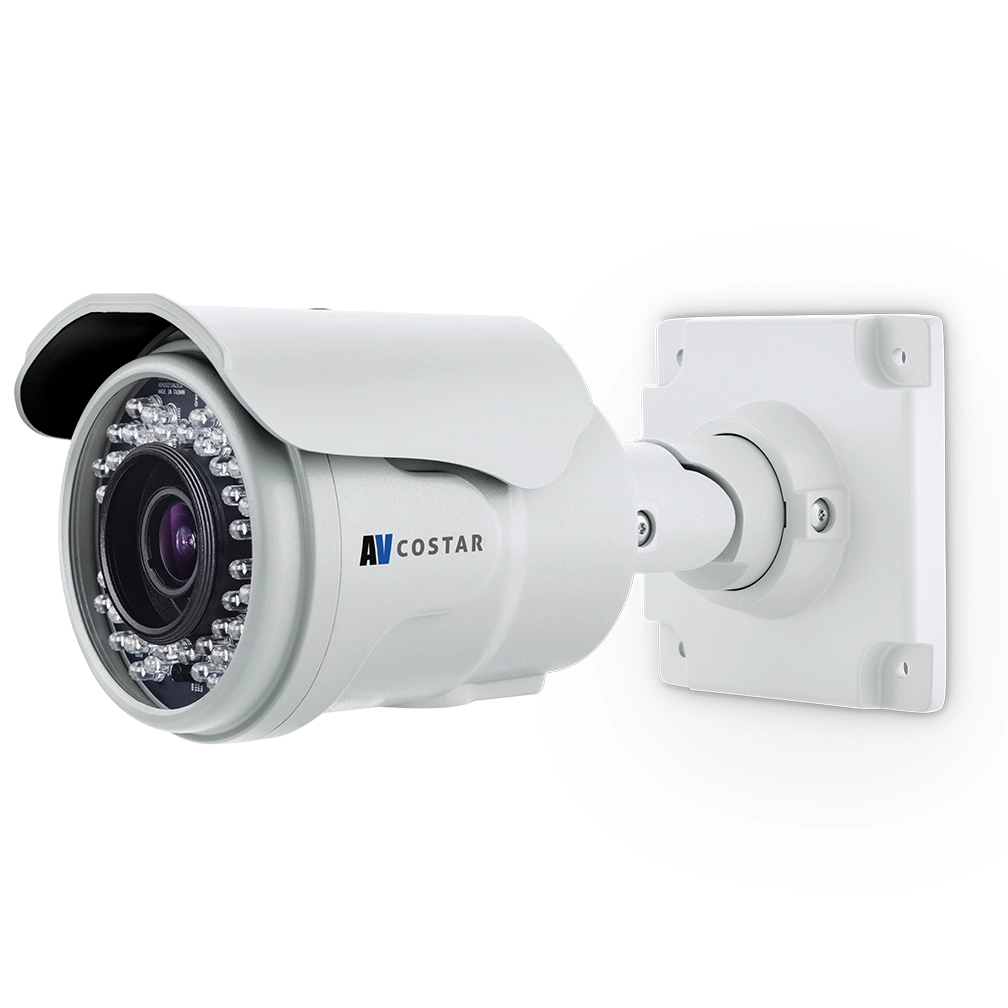

Arecont Vision - AV05CLB-100 - 5 Megapixel (MP) H.265/H.264 P-Iris Lens Indoor/Outdoor Dome IP Cameras
Part number:
AV05CLB-100
Price:

5MP Contera Outdoor Bullet 2592x1944 H.265/H.264/M-JPEG, WDR 120dB, NightView, SNAPstream+, 2.7-12mm P-Iris Lens, 30fps, Remote Zoom, Remote Focus, Smart IR, SD Card Slot, Defog, Audio, IP66, IK-10, Onvif, PoE/12V DC/24V AC



The Contera Bullet outdoor-ready megapixel camera features 1080p and 5-megapixel (MP) resolution for optimum performance. The Contera Bullet combines a day/night mechanical IR cut filter with an integrated motorized 2.7–12mm varifocal remote focus and zoom precision iris (P-iris) lens. Regardless of the time of day, the Contera Bullet is prepared for any lighting condition. For applications with poor lighting conditions, Enhanced WDR (wide dynamic range) at 120dB provides the best visual balance to shaded and bright light conditions. For clear color images in low-light, NightView offers strong low-light sensitivity for capturing details in extremely poor-lit scenes, and is further enhanced by built-in Smart IR LED illumination that automatically adjusts output in response to the distance of an object in view to prevent over-exposure when the object is very close to the camera.



Arecont Vision was the first to bring H.264 to the mainstream market and recently developed SNAPstream (Smart Noise Adaptation and Processing) technology for reducing bandwidth without impacting image quality. Today we are proud to offer our next generation H.265 with SNAPstream+ smart codec capable of delivering high quality video while saving over 50% of the data rate to reduce or prevent strain on the network.



The SD card slot supports up to 256GB of storage capacity for convenient onboard storage. The camera’s power can be supplied via a Power-over-Ethernet (PoE - IEEE 802.3af) compliant network cable connection. The Contera Bullet is IP66 rated for both indoor and outdoor applications. All models feature an impact resistant cast-aluminum housing capable of withstanding the equivalent of 55 kg (120 lbs) of force.



Features:

  •  5MP Resolution
  •  Remote Focus/Zoom Motorized P-Iris Lens
  •  SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
  •  NightView for Strong Low Light Performance
  • True Day/Night Functionality with Mechanical IR Cut Filter
  •  Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
  •  CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
  •  Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
  •  On-Screen Display (OSD)
  •  Defog Technology
  •  Triple Encoder: H.265/H.264/MJPEG
  •  Network Protocols Include SNMP, IPv6, HTTPS, DHCP, 802.1x, and More
  •  Smart IR Illumination with Variable Illumination Ensures that IR Light is Evenly Disbursed up to 66ft (20m) for Scenes with Low or No Ambient Light
  •  Audio Out
  •  SDXC Card Slot for Onboard Storage
  •  Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
  •  Easily Adjustable 3-Axis Gimbal
Camera Imaging Specifications

Model AV02CLB-100AV05CLB-100

Image Sensor 1080p (2.1MP) CMOS Progressive Sensor5MP CMOS Progressive Sensor

Optical Format 1/2.8"1/2.9"

MinimumColor (Day Mode)0.05 Lux0.1 Lux

IlluminationB/W (Night Mode)0.005 Lux0.01 Lux


Full FOV Resolution 1920 H x 1080 V2592 H x 1944 V

Scaling (See Scaling Resolutions Below)YesYes

IR Illumination YesYes

Dynamic Range 120dB120dB

Frame Rates*Single StreamUp to 30fps (1080p)Up to 30fps (5MP)**

 Multi-StreamUp to 30fps (1080p) + 20fps (1080p)Up to 15fps (5MP)** + 10fps (5MP)**

  Up to 30fps (1080p) + 30fps (720p) + 30fps (VGA)Up to 30fps (1080p)** + 30fps (720p)** + 30fps (VGA)**

LensFixed Iris2.7–12mm, F1.3, H-FOV = 32°–108°, V-FOV = 18°–57°, P-Iris2.7–12mm, F1.3, H-FOV = 24°–81°, V-FOV = 18°–57°, P-Iris

Programmability


OpticsRemote focus/zoom, P-iris lens
Low-Light PerformanceNightView™ technology
 Smart IR
ProgrammableAuto/manual 0.1ms ~ 500ms
Shutter Speed

Motion DetectionReal-time, 1024 detection zones
Privacy MaskingUnlimited
Backlight CompensationAuto
White Balance ModeAuto/manual
Gain ControlAuto
Flicker Control*5Hz–255Hz adjustable
Image RotationCorridorView™ (90°, 180°, and 270° image rotation) + mirror
Wide Dynamic RangeAdjustment between WDR and LDR modes
EfficiencySNAPstream+™ (Smart Noise Adaptation and Processing)
 Bit rate and bandwidth limitation control
DefogSupported
MiscellaneousProgrammable brightness, contrast, sharpness, saturation, hue
 Electronic pan, tilt, zoom (PTZ)
Password16-digit ASCII character password
On-Screen Display (OSD)Time/date/camera name/custom text

Data Transmission

Compression TypeH.265/H.264 (MPEG-4, Part 10)/Motion JPEG
Bit Rate Control64K–8000K
Smart CodecSmart GOP/Smart ROI
Transmission ProtocolsSNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP,
 RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure
 10/100Base-T Ethernet network interface, RJ45
Multi-Streaming2 x H.265/H.264 stream, 1 x M-JPEG stream
UsersLive viewing/Administrator for up to 10 clients

Event Management

Event TriggerMotion detection, tampering detection, alarm in
NotificationsSend/record message via e-mail/FTP/NAS/SD card, record
 JPG/mp4

Compliance

Industry StandardONVIF Profile S, G, Q, T conformant

ListingsUL (CB) UL60950-1, E489591

FCC Compliance47 CFR 15 Class A
EnvironmentalRoHS, REACH, WEEE
MarkingsCE: EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3,
 EN60950
MechanicalIK-10 (EN62262), IP66 (EN60529)

General Electrical

Alarm Input/Output1 input (wet contact)/1 output (wet contact)
Power Over EthernetPoE IEEE 802.3af, Class 3
 Total PoE solution (no external power requirement)
Auxiliary Power12–48V DC, 24V AC
Power Consumption1080p8.7W PoE max

 5MP8.9W PoE max


IR Illuminator

LEDs48pcs, Smart IR
Projection Distance100ft (30m) max

Audio Electrical

StreamingTwo-way
CompressionG.711 PCM 8 kHz
Input/OutputLine in / Line output

Mechanical
CasingDie-cast aluminum cylindrical (bullet-style) housing
 IP66 weather proof standard
 Impact resistant, IK-10 rated
Mount
Easily adjustable 3-axis with 360° pan, 90° tilt and 360° z-axis
Dimensions
Unit4.7" H (119mm) x 4.7" W (119mm) x 9.3" D (236mm)
(See Dimensions)
Packaged5.6" H (142mm) x 5.6" W (142mm) x 11" L (280mm)

Weight
Unit2.72lbs (1.23kg)

 Packaged3.31lbs (1.5kg)
On Board StorageSDXC slot up to 256GB (card not included)
Body ColorArecont Vision® White (Pantone P179-1C)
