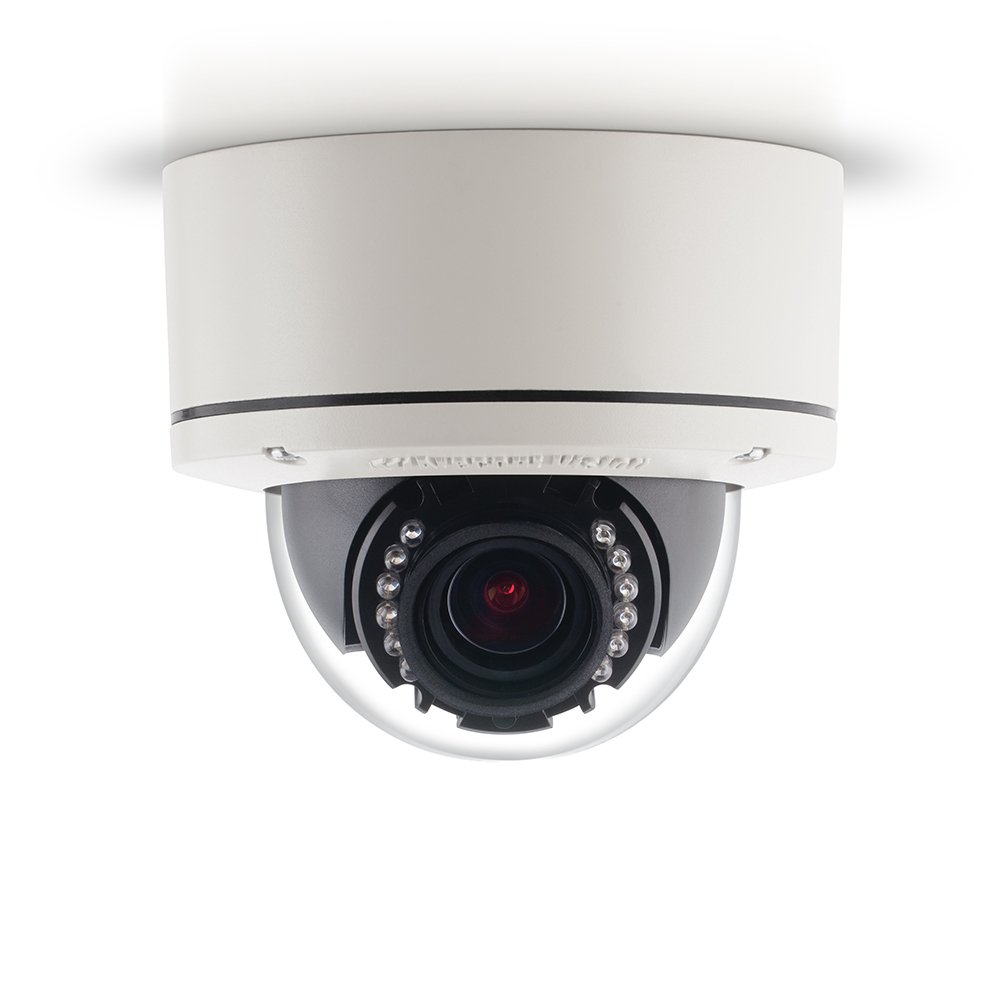

The 12MP/4K/1080p MegaDome UltraHD “tri-mode” network camera is part of the new generation of Arecont Vision’s MegaDome cameras. This fully compliant implementation of H.264 (MPEG-4, Part 10) provides full 4000 x 3000 megapixel resolution at video frame rates of 20 frames per second (fps)† at 12MP, 30fps† while in 4K (8.3MP), and 60fps† while in 1080p (2.1MP). The MegaDome UltraHD camera series provides an all-in-one solution with integrated 12MP day/night camera, remote focus, remote zoom, P-Iris, 4.4–10mm lens in an installer-friendly IP66 water/dust ingress rated housing, and vandal resistant, IK-10 rated dome enclosure.
Features include SNAPstream (Smart Noise Adaptation and Processing) to reduce bandwidth without impacting image quality, NightView™ and binning mode for strong low light performance, non-integer scaling, privacy masking, extended motion detection, flexible cropping, forensic zooming, multicasting and Power over Ethernet (PoE - IEEE 802.3af). Built with Arecont Vision massively-parallel MegaVideo processing technology, the camera series offers more than 27-times the resolution of standard resolution IP cameras. It offers the ability to output full real-time frame rates and deliver high-quality megapixel imaging for both indoor and outdoor applications.
Features:
- 12 Megapixel at 20fps
- 12MP/4K/1080p Tri-Mode with 4K at 30fps and 1080p at 60fps
- SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
- Remote Focus/Zoom P-Iris Lens
- P-Iris Control to Get Best Depth of Field and Image Clarity
- WDR: See Clearly in Shaded and Bright Light Conditions Simultaneously
- NightView Technology for Strong Low Light Performance
- Binning Mode for Strong Low Light Performance
- True Day/Night Functionality with Mechanical IR Cut Filter
- Dual Encoder H.264/MJPEG
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Non-Integer Scaling
- Network Protocols Include SNMP, SNTP, HTTPS, 802.1x, IPv4, DHCP, and More
- IR LEDs with Adjustable Beam Angle and LED Intensity
- Total PoE Solution (No External Power Required for IR LEDs) with Auxiliary Power: 12–24V DC
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- Easily Adjustable 3-Axis Gimbal
| Model | AV12ZMD-401 |
| Image Sensor (CMOS) | |
| Optical Format | |
| Pixel Pitch | |
| Minimum Illumination | Color (Day Mode) |
| Color Binning (Day Mode) | |
| B/W (Night Mode) | |
| Full FOV Resolution | |
| 1/4 Resolution (Half Resolution) | |
| Scaling (See Scaling Resolution Chart Below) | |
| Dynamic Range | |
| Maximum SNR | |
| Frame Rates* | Maximum Resolution |
| 4K Resolution (8.3MP) | |
| Half Resolution | |
| 1080p Resolution (2.1MP or 4K Binning Mode) | |
| Lens | 4.4–10mm Integrated, 1/1.7", F/1.2, H-FOV = 99°–45° (H-FOV = 96°–43° at 4K or 1080p Resolution) |
Data Transmission
| Compression Type | H.264 MPEG-4, Part 10 ISO/IEC 14496-10 AVC |
| 21 levels of quality | |
| Network Protocols | SNMP, SNTP, HTTP1.0, HTTP1.1, HTTPS, IPv4, 802.1x, RTSP, |
| RTP/TCP, RTP/UDP, TFTP, DHCP | |
| Network Interface | 100/1000 Base-T Ethernet |
| Multi-Streaming | 4 non-identical streams |
Compliance
| Listings | UL CB Scheme: IEC 60950-1(Ed.2), IEC 60950-1(Ed.2); Am.1, |
| IEC 60950-1(Ed.2); Am.2, IEC 60950-22(Ed.1) | |
| FCC Compliance | Title 47, Part 15 (47 CFR 15) Subpart B Class A |
| Environmental | REACH 1907/2006/EC, WEEE 2012/19/EU |
| Markings | CE: 2014/30/EU (EMC Directive), 2014/35/EU (Low Voltage |
| Directive), 2011/65/EU (RoHS Directive) | |
| EN 55022:2010 Class A, EN 55024:2010, | |
| EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008 | |
| EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 | |
| Networking Standard | IEEE 802.3af-2003 PoE Standard, Class 3 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| CoO | Made in the USA |
