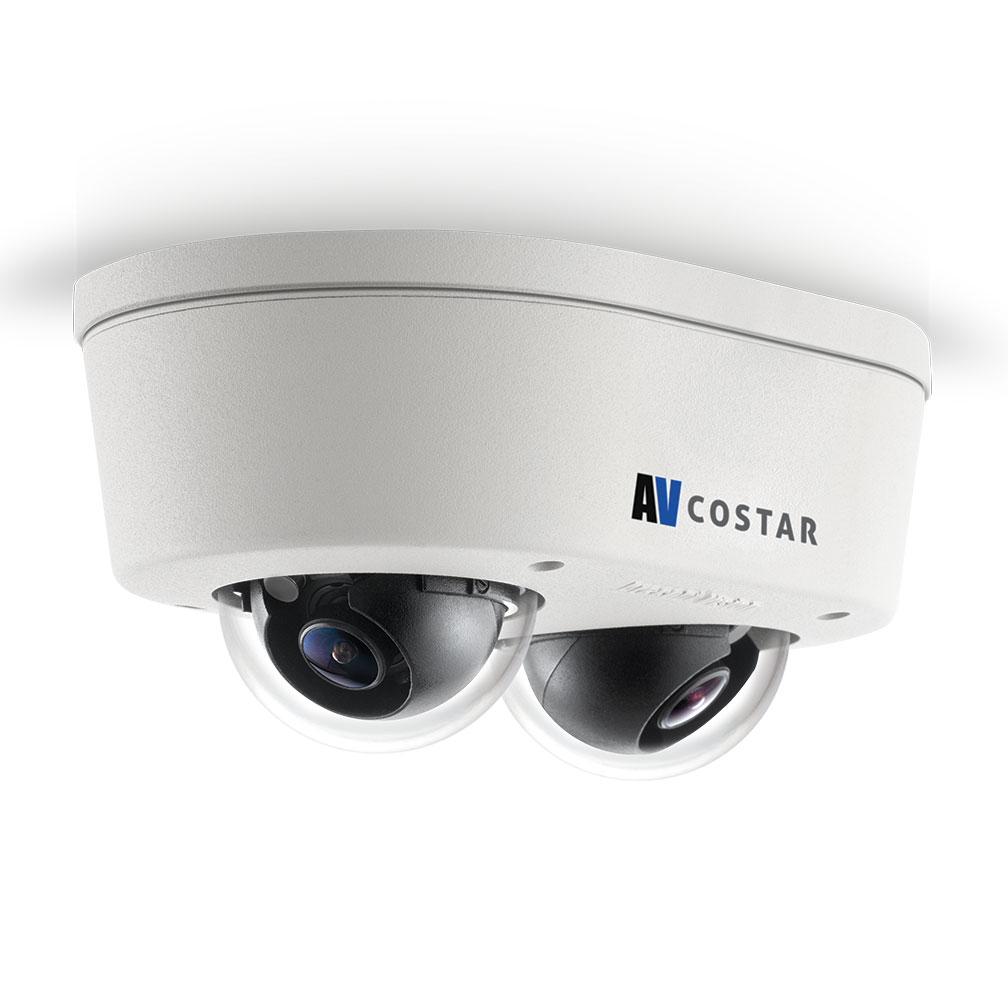

Arecont Vision - AV16856DN-28 - 16MP 2 Sensor Camera 10 MP 2 x 3840x2160 2 x 2.8mm MP Lens H.265/H.264 MicroDome Duo LX
Part number:
AV16856DN-28
Price:

16MP MicroDome Duo LX, 2 Sensor Camera, 10 Megapixel Total, 2 x 3840x2160, 2 x 2.8mm MP Lens, Remote Focus & Day/Night, H.265/H.264/M-JPEG, WDR 120dB, NightView, SNAPstream+, 30fps, IR, Defog, Onvif, PoE , 2 x 3 Axis Gimbals, Surface mount, Indoor/Outdoor, IP66, IK-10, PoE



Features :

  • 16MP Resolution
  • 2 x 2.8mm Lenses
  • Remote Focus
  • Easily Adjustable 3-Axis Gimbal
  • Multiple Lens Options in a Single Camera Housing
  • SNAPstream+ Advanced Compression Algorithm Reduces Bandwidth without Impacting Image Quality
  • NightView for Strong Low Light Performance
  • True Day/Night Functionality with Mechanical IR Cut Filter
  • On-Screen Display (OSD)
  • WDR at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
  • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, and Multicasting
  • Triple Encoder: H.265/H.264/MJPEG
  • Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
  • All-in-One Total PoE Solution PoE and Auxiliary Power: 12V-48V DC/24V AC
  • MicroSDXC Card Slot for Onboard Storage
  • Ultra-Discrete, Low-Profile Housing
  • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
OpticsM12 lens and remote focus module
Low-Light PerformanceNightView technology
Programmable Shutter SpeedAuto/manual 0.1ms ~ 500ms
Motion DetectionReal-time, 1024 detection zones
Privacy MaskingUnlimited
Backlight CompensationAuto
White Balance ModeAuto/manual
Gain ControlAuto
Flicker Control5Hz–255Hz adjustable
Scaling4MP1920x1080, 1280x960, 1280x720, 960x540, 800x600, 640x480, 640x360
10MP2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480
16MP3840x2160, 2592x1944, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480, 640x360
Wide Dynamic RangeAdjustment between WDR and LDR modes
EfficiencySNAPstream+ (Smart Noise Adaptation and Processing)
Bit rate and bandwidth limitation control
MiscellaneousProgrammable brightness, contrast, sharpness, saturation, hue
Password16-digit ASCII character password
On-Screen Display (OSD)Time/date/camera name/custom text
Name
Description
Size
Downloads
File
Data Sheet
0.7mb
File
A&E Specification
0.1mb
