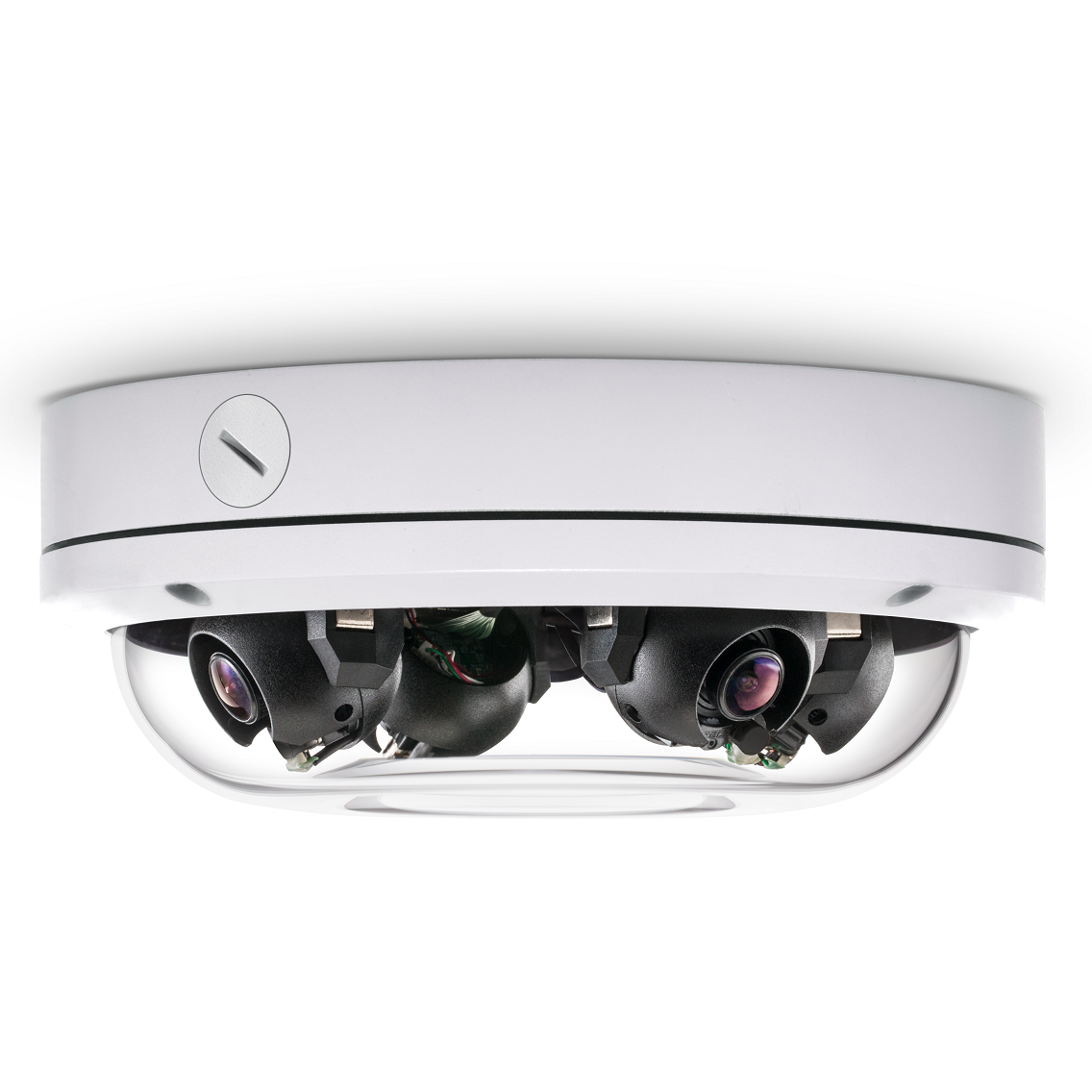

SurroundVideo Omni SX, 20 Megapixel, SNAPstream, Remote Focus & Day/Night H.264/MJPEG Omni-Directional Camera SX, 4 x 2560x1920, 4 x 8.0mm MP Lens, Surface Mount, Indoor/Outdoor, IP66, IK-10, PoE Powered Fan.
The SurroundVideo Omni SX multi-megapixel camera was built to withstand evolving customer change-requirements. The improved image quality and product reliability of the SurroundVideo Omni SX provides organizations of all sizes with the flexibility to deploy a security system that truly matches their video surveillance needs now, and again if requirements change in the future. With its ground-breaking flexibility such as the ability to easily move each of the four sensors around the magnetic 70+ placement-point Omni track, the 3-axis gimbals for an increased range of motion when positioning the sensors, and the ability to interchange the remote focus modular lenses for a customized field of view, the SurroundVideo Omni SX provides customers with the confidence in a future-proof investment. The SurroundVideo Omni SX changes when you do.
Features:
- 20MP Resolution
- 4 x 8mm Lenses
- 3-Axis Gimbal
- Remote Focus
- SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
- True Day/Night
- Surface Mount
- Power Over Ethernet (PoE)
- Indoor/Outdoor
- IP66 Weather Rated
- IK-10 Impact Resistant
Programmability
Optics | M12 lens and remote focus module |
Low Light Performance | Pixel Binning Mode |
Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images |
Programmable | Controls motion blur, 1ms–500ms |
Shutter Speed | |
| |
Motion Detection | Real-time, 1024 detection zones |
Privacy Masking | Unlimited |
MoonLight™ Mode | Extended exposure and noise cancellation |
Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 |
| pixels for H.264 |
Backlight Compensation | Auto multi-matrix white balance |
Flicker Control | 5Hz–255Hz adjustable |
Wide Dynamic Range | Auto switch control adjustment between WDR and LDR modes |
| (WDR models) |
Efficiency | SNAPstream™ (Smart Noise Adaptation and Processing) |
| Bit rate and bandwidth limitation control |
| Bandwidth and storage savings by running at 1/4 resolution |
Sharpness | Selectable enhancement level |
Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint |
| Simultaneous delivery of full field-of-view and zoomed images |
| Electronic pan, tilt, zoom (PTZ) |
| Auto Exposure (AE) and Gain Control (AGC) > 120dB |
| Programmable shutter speed to help control motion blur |
Data Transmission
Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG |
| 21 levels of quality |
Network Protocols | HTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
Network Interface | 100Base-T Ethernet |
Multi-Streaming | 8 non-identical streams |
Compliance
Industry Standard | ONVIF Profile S conformant |
Listings | UL (CB) |
FCC Compliance | 47 CFR 15 Class A |
Environmental | RoHS, REACH, WEEE |
Markings | (CE) EN 55022:2010 Class A, EN 55024:2010, |
| EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008, |
| EN60950-1:2006+A11:2009+A1:2010+A12:2011, (UL) IEC |
| 60950-1 (ed. 2) and IEC 60950-22 (ed. 1) |
CoO | Made in the USA |
Environmental
Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
Humidity | 0% to 90% (non-condensing) |
Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
Electrical
Alarm Input/Output | 1 input /1 output |
Power Over Ethernet | PoE 802.3af, Class 3 |
Auxiliary Power | 18–48V DC, 24V AC |
Power Consumption | 14W max (auxiliary) |
Mechanical
Casing | Die-cast aluminum chassis with polycarbonate dome bubble | |
| IP66 weather proof standard | |
| Impact resistant, IK-10 rated | |
Color | Arecont Vision® White (Pantone® Cool Grey 1C) | |
Gimbal | Easily adjustable, 3-axis w/360° pan, 90° tilt, and 360° z-axis | |
Dimensions | Unit | Ø 7.7" (196mm) x 3.1" H (78.5mm) |
(See Dimensions) |
|
|
Bubble Only | Ø 6.7" (169.2mm) x 1.3" H (33.4mm) | |
| ||
| Packaged | 8" W (203mm) x 8" L (203mm) x 4" H (102mm) |
Weight | Unit | 2.8lbs (1.27kg) |
| Packaged | 3.4lbs (1.54kg) |
