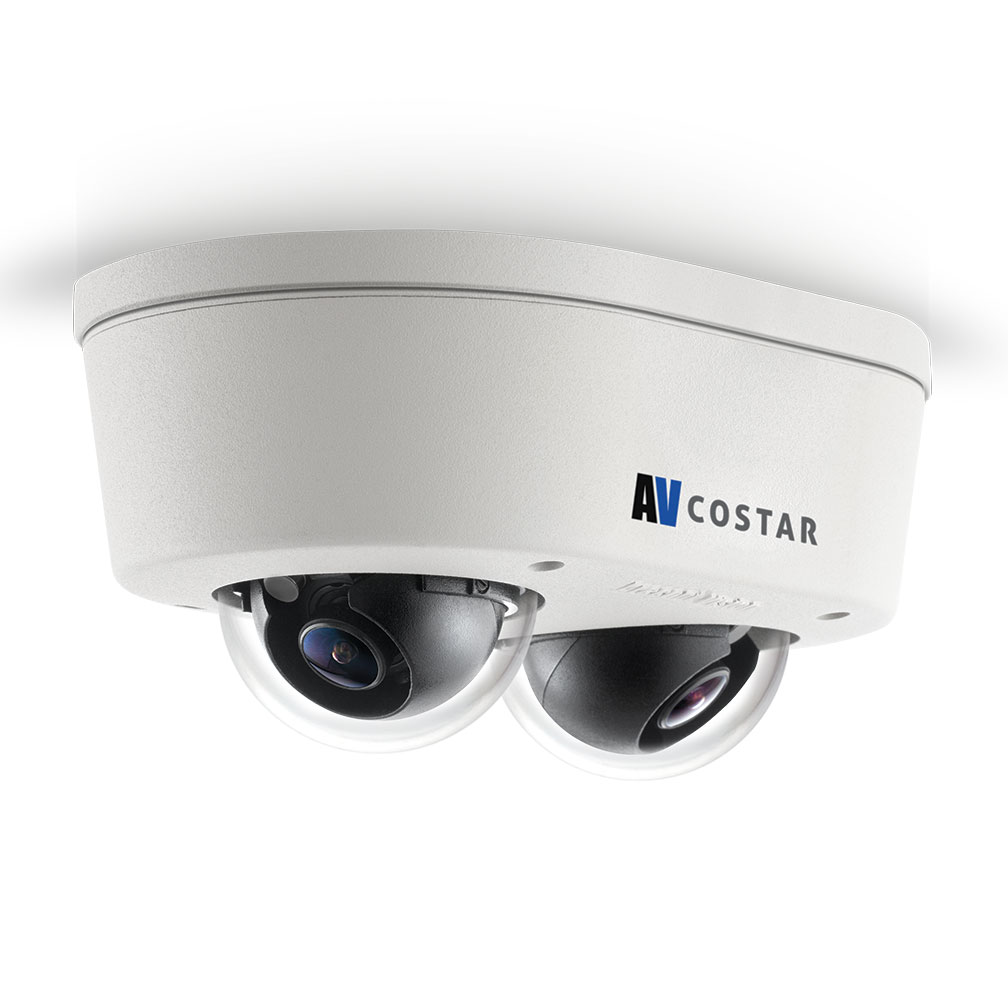

4MP MicroDome Duo LX, 2 Sensor Camera, 4 Megapixel Total, 2 x 1920x1080, 2 x 2.8mm MP Lens, Remote Focus & Day/Night, H.265/H.264/M-JPEG, WDR 120dB, NightView, SNAPstream+, 30fps, IR, Defog, Onvif, PoE , 2 x 3 Axis Gimbals, Surface mount, Indoor/Outdoor, IP66, IK-10, PoE
Features:
- 4MP Resolution
- 2 x 2.8mm Lenses
- Remote Focus
- Easily Adjustable 3-Axis Gimbal
- Multiple Lens Options in a Single Camera Housing
- SNAPstream+ Advanced Compression Algorithm Reduces Bandwidth without Impacting Image Quality
- NightView for Strong Low Light Performance
- True Day/Night Functionality with Mechanical IR Cut Filter
- On-Screen Display (OSD)
- WDR at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, and Multicasting
- Triple Encoder: H.265/H.264/MJPEG
- Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
- All-in-One Total PoE Solution PoE and Auxiliary Power: 12V-48V DC/24V AC
- MicroSDXC Card Slot for Onboard Storage
- Ultra-Discrete, Low-Profile Housing
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
| Image Sensor (CMOS) | 4MP (1080p x 2) CMOS Progressive Sensor | ||
| Optical Format | 1/2.8" | ||
| Pixel Pitch | 2.9μm | ||
| Minimum | Color (Day Mode) | 0.04 Lux | |
| Illumination | |||
| B/W (Night Mode) | 0.004 Lux | ||
| Full FOV Resolution | Total | 3840 H x 1080 V | |
| Per Sensor | 1920 H x 1080 V | ||
| Dynamic Range | Up to 100dB* | ||
| Frame | At Max Resolution | 30fps (4MP) | |
| Rates | |||
| Multi-Stream | Up to 30fps (8MP) + 20fps (8MP) | ||
| Up to 30fps (4MP) + 30fps (4MP) + 30fps (1.8MP) | |||
| Lens (x2) | 2.8mm Lens Option (-28 Models) | 2.8mm, F2.0, H-FOV = 106.7° | |
Programmability
Optics |
| M12 lens and remote focus module |
Low-Light Performance | NightView technology | |
Programmable |
| Auto/manual 0.1ms ~ 500ms |
Shutter Speed |
| |
|
| |
Motion Detection |
| Real-time, 1024 detection zones |
Privacy Masking |
| Unlimited |
Backlight Compensation | Auto | |
White Balance Mode | Auto/manual | |
Gain Control |
| Auto |
Flicker Control |
| 5Hz–255Hz adjustable |
Scaling | 4MP | 1920x1080, 1280x960, 1280x720, 960x540, 800x600, |
(Per Sensor) |
| 640x480, 640x360 |
| 10MP | 2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080, |
|
| 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480 |
| 16MP | 3840x2160, 2592x1944, 2560x1440, 2048x1536, 1920x1080, |
|
| 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, |
|
| 640x480, 640x360 |
Wide Dynamic Range | Adjustment between WDR and LDR modes | |
Efficiency |
|
|
| SNAPstream+ (Smart Noise Adaptation and Processing) | |
|
| Bit rate and bandwidth limitation control |
Miscellaneous |
| Programmable brightness, contrast, sharpness, saturation, hue |
Password |
| 16-digit ASCII character password |
On-Screen Display (OSD) | Time/date/camera name/custom text | |
Data Transmission
Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| 21 levels of quality |
Bit Rate Control | 64K–8000K |
Smart Codec | Smart GOP/Smart ROI |
Network Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, |
| RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, |
| Zero Configure |
Network Interface | 10/100/1000Mbps Ethernet, RJ45 |
Max Camera Bandwidth | 20Mbps (10Mbps per sensor) |
Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream (per sensor) |
Users | Live Viewing/Administrator for up to 10 clients |
Event Management
Event Trigger | Motion detection, tampering detection, alarm in |
Notifications | Send a message via e-mail/FTP/NAS, SD Card Recording, |
| Record JPG/MP4 |
Environmental
Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
Humidity | 0% to 90% (non-condensing) |
Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
Electrical
Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
Power Over Ethernet | PoE IEEE 802.3af, Class 3 |
Auxiliary Power | 12-48V DC, 24V AC |
Power Consumption | 10.5W max |
Audio Electrical
Streaming | Two-way |
Compression | G.711 PCM 8 kHz |
Input/Output | Line in***/ Line output |
