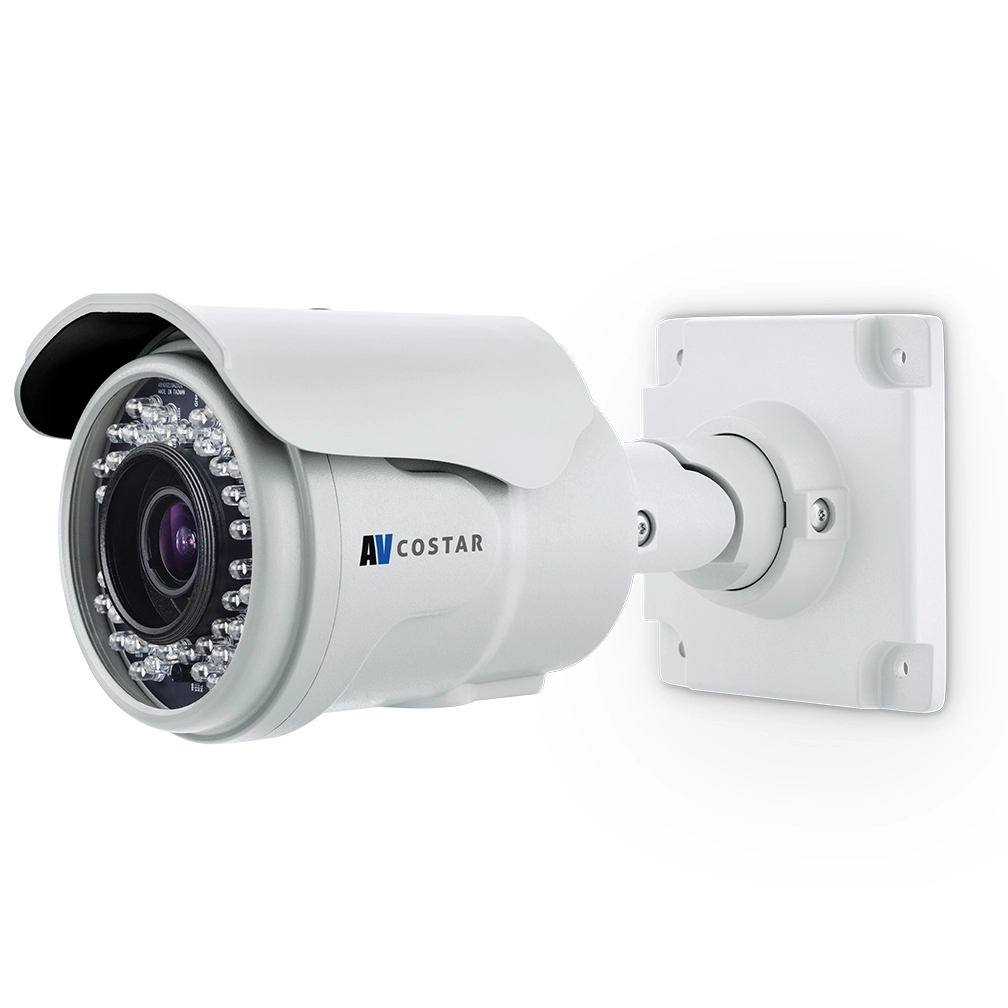

Arecont Vision - AV5426PMIR-S - 5MP 30fps Smart IR Contera Outdoor Bullet
Part number:
AV5426PMIR-S
Price:
5MP Contera Outdoor Bullet 2592x1944 H.265/H.264/M-JPEG, Video Analytics (Line Cross, Loiter Detection, Tamper Detection, Intrusion Detection with False Alarm Reduction), WDR 120dB, NightView, SNAPstream+, 2.7-12mm RF/RZ P-Iris Lens, 30fps, Smart IR, SD Card, Defog, Audio, IP66, IK-10, Onvif, PoE/12V DC/24V AC
Features:
- On-Camera Video Analytics
- CorridorView™ Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Easily Adjustable 3-Axis Gimbal
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- SDXC Card Slot for Onboard Storage
- Audio Out
- Smart IR Illumination with Variable Illumination Ensures that IR Light is Evenly Disbursed up to 66ft (20m) for Scenes with Low or No Ambient Light
- All-in-One H.265/H.264 Total PoE Solution (No External Power Required for Heater and IR LEDs), PoE and Auxiliary Power: 12–48V DC/24V AC
- Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- Network Protocols Include SNMP, IPv6, HTTPS, DHCP, 802.1x, and More
- Triple Encoder: H.265/H.264/MJPEG
- Defog Technology
- On-Screen Display (OSD)
- Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
- 5-Megapixel Resolution
- True Day/Night Functionality with Mechanical IR Cut Filter
- NightView™ for Strong Low Light Performance
- SNAPstream+™ Capability to Reduce Bandwidth without Impacting Image Quality
- Remote Focus/Zoom Motorized P-Iris Lens
| Model | AV5426PMIR-S | ||
| Image Sensor | 5MP CMOS Progressive Sensor | ||
| Optical Format | 1/2.9" | ||
| Minimum | Color (Day Mode) | 0.1 Lux | |
| Illumination | B/W (Night Mode) | 0.01 Lux | |
| Full FOV Resolution | 2592 H x 1944 V | ||
| Scaling (See Scaling Resolutions Below) | Yes | ||
| IR Illumination | Yes | ||
| Dynamic Range | 120dB | ||
| Frame Rates1 | Single Stream | Up to 30fps (5MP)2 | |
| Multi-Stream | Up to 15fps (5MP)2 + 10fps (5MP)2 | ||
| Up to 30fps (1080p)2 + 30fps (720p)2 + 30fps (VGA)2 | |||
| Lens | Fixed Iris | 2.7–12mm, F1.3, H-FOV = 24°–81°, V-FOV = 18°–57°, P-Iris | |
Programmability
| Optics | Remote focus/zoom, P-iris lens |
| Low-Light Performance | NightView™ technology |
| Smart IR | |
| Programmable | Auto/manual 0.1ms ~ 500ms |
| Shutter Speed | |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control1 | 5Hz–255Hz adjustable |
| Image Rotation3 | CorridorView™ (90°, 180°, and 270° image rotation) + mirror |
| Scaling | 2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720, |
| 640x480, 640x360, 320x240 | |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+™ (Smart Noise Adaptation and Processing) |
| Bit rate and bandwidth limitation control | |
| Defog | Supported |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Electronic pan, tilt, zoom (PTZ) | |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Basic Video Analytics | Motion Detection |
| Camera Tamper | |
| Advanced | Intrusion Detection |
| Video Analytics4 | |
| Line Crossing | |
| Loitering | |
| Optional Advanced | Object Classification (Person/Vehicle)5 |
| Video Analytics4 | |
| Object Left/Removed5 | |
| People/Vehicle Counting5 |
Data Transmission
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP/Smart ROI |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, |
| RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure | |
| 10/100Base-T Ethernet network interface, RJ45 | |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
Event Management
| Event Trigger | Motion detection, video analytics, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS/SD card, record |
| JPG/mp4 |
Compliance
| Industry Standard | ONVIF Profile S, G, Q, T conformant |
| Listings | UL (CB) UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | CE: EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3, |
| EN60950 | |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
Environmental
| Operating Temperature | -20°C (-4°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
General Electrical
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) | |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 | |
| Total PoE solution (no external power requirement) | ||
| Auxiliary Power | 12–48V DC, 24V AC | |
| Power Consumption | 1080p | 8.7W PoE max |
| 5MP | 8.9W PoE max | |
| IR Illuminator | |||
| LEDs | 48pcs, Smart IR | ||
| Projection Distance | 100ft (30m) max | ||
| Audio Electrical | |||
| Streaming | Two-way | ||
| Compression | G.711 PCM 8 kHz | ||
| Input/Output | Line in / Line output | ||
| Mechanical | |||
| Casing | Die-cast aluminum cylindrical (bullet-style) housing | ||
| IP66 weather proof standard | |||
| Impact resistant, IK-10 rated | |||
| Mount | Easily adjustable 3-axis with 360° pan, 90° tilt and 360° z-axis | ||
| Dimensions | Unit | 4.7" H (119mm) x 4.7" W (119mm) x 9.3" D (236mm) | |
| (See Dimensions) | |||
| Packaged | 5.6" H (142mm) x 5.6" W (142mm) x 11" L (280mm) | ||
| Weight | Unit | 2.72lbs (1.23kg) | |
| Packaged | 3.31lbs (1.5kg) | ||
| On Board Storage | MicroSDXC slot up to 256GB (card not included) | ||
| Body Color | Arecont Vision® White (Pantone® Cool Gray 1C) | ||
