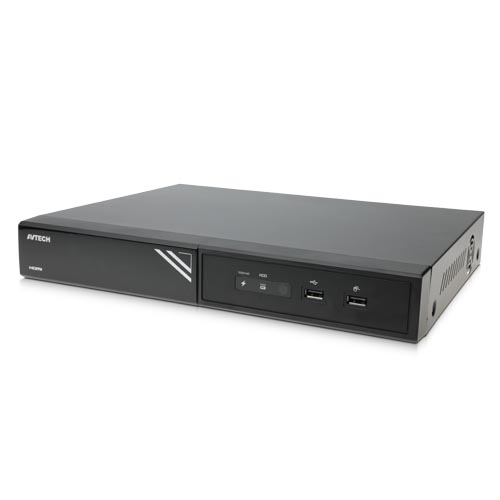

AVTECH - AVH2116-8TB - 16 Channel with 8 POE Ports Push Video NVR with 8TB Preinstalled
Part number:
AVH2116-8TB
Price:

H.265 Compression Technology

With this compression technology, the recording capacity is greatly enhanced as well as bandwidth saving for better efficiency and performance than the systems employing other compression formats

Cloud Service - EaZy Networking*

-EaZy Networking, the cloud service provided by AVTECH, available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.

-The “Buddy” feature to share the device access permission to other people.

-Device login / out notifications reported.

Alarm Scenario Customization

“Scenario” is a new feature allowing you to customize a series of actions which will be run automatically after the specified event occurs. There are several scenario templates for you to choose when and what to do after a specific event occurs.

Push Video & Push Status - Active Event

Notification with EagleEyes App

-Push Video to send instant notifications for an alarm event when an alarm device is connected to the recorder.

-Push Status to send instant notifications for system events, such as video loss or HDD data removal.

One Ethernet Cable Solution

(POE, Power-over-Ethernet)

Camera power supply & video transmission over one Ethernet cable to eliminate the needs of power adapters for your cameras during the whole HD surveillance system setup.

Event Pop-up / Preview

All events are listed on the right panel with corresponding event icons for you to quickly recognize the event type. The most current one will flash to catch your attention. Click one event and you’re able to preview the footage with pre-alarm images.

Spot Monitor

In addition to the main display via the main HDMI output, you can assign a secondary display to show live view, call monitor or event monitor.







Hardware

Video Input

8 LAN ports with PoE + 1 LAN port

HDMI

YES (4K2K)

VGA

YES (Spot Monitor Supported)

Composite

YES (Spot Monitor Supported)



16CH Mode: 1080P

Video Output Resolution

9CH Mode: 4K2K

Audio

1 in (mic in) / 1 out

Alarm I/O

4 in / 1 out

RS485

YES



Either two 14TB SATA HDD installed in the recorder, or

HDD Storage**

one 14TB SATA HDD installed and a disk array connected to the recorder



via the eSATA interface

USB Port

YES

eSATA Port

Expandable with a SATA to eSATA cable

POE port

10/100 Mbps with PoE x 8

(IEEE802.3af)

LAN port

10/100 Mbps x 1

Software



Video Compression Format

H.265

Audio Compression Format

G711

Local / Remote Display Mode

16CH

Local / Remote Playback Mode

16CH

Local Single Channel Playback

YES

Recording Mode

Manual / Event / Alarm / Schedule

Record Streaming

Dual

Recording Resolution

240 IPS @ 3264 x 2448

Recording Throughput

80Mbps

Pre-alarm Recording

YES

Quick Search

Time / Event

Event Notification

Push Video / Push Status / Video Mail / Message Mail

Security

Multiple user access levels with password

Multicast

YES

Seamless Recording***

YES

EaZy Networking

YES

IVS***

YES

Spot Monitor Setup

Call Monitor / Event Monitor / Live Monitor (VGA & Composite)

Alarm Scenario Setup

YES

Alarm Pop-up & Preview

YES

Free DDNS Service

YES

Network

Protocols

RTSP, RTCP, IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP

ONVIF Compatible

YES

Max. Online User

20



(1) Web browser: Windows Edge, Internet Explorer, Google Chrome & Safari

Remote Access

(2) PC program: CMS Lite, 32CH CMS software for Windows OS



(3) Mobile app: EagleEyes on iOS & Android mobile devices

Name
Description
Size
Downloads
File
Datasheet
0.2mb
File
User Manual
3.8mb
File
Quick Setup Guide
1.2mb
File
Network Setup Recorder
1.9mb
File
Dimensions
0.2mb
