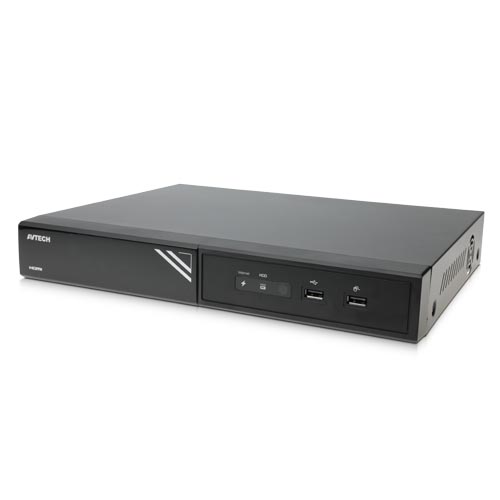

AVTECH - AVH2116 - 16 Channel with 8 POE Ports Push Video NVR
Part number:
AVH2116
Price:

H.265 Compression Technology

With this compression technology, the recording capacity is greatly enhanced as well as bandwidth saving for better efficiency and performance than the systems employing other compression formats

Cloud Service - EaZy Networking*

-EaZy Networking, the cloud service provided by AVTECH, available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.

-The “Buddy” feature to share the device access permission to other people.

-Device login / out notifications reported.

Alarm Scenario Customization

“Scenario” is a new feature allowing you to customize a series of actions which will be run automatically after the specified event occurs. There are several scenario templates for you to choose when and what to do after a specific event occurs.

Push Video & Push Status - Active Event

Notification with EagleEyes App

-Push Video to send instant notifications for an alarm event when an alarm device is connected to the recorder.

-Push Status to send instant notifications for system events, such as video loss or HDD data removal.

One Ethernet Cable Solution

(POE, Power-over-Ethernet)

Camera power supply & video transmission over one Ethernet cable to eliminate the needs of power adapters for your cameras during the whole HD surveillance system setup.

Event Pop-up / Preview

All events are listed on the right panel with corresponding event icons for you to quickly recognize the event type. The most current one will flash to catch your attention. Click one event and you’re able to preview the footage with pre-alarm images.

Spot Monitor

In addition to the main display via the main HDMI output, you can assign a secondary display to show live view, call monitor or event monitor.







Hardware



Video Input



8 LAN ports with PoE + 1 LAN port













HDMI

YES (4K2K)











Video Output

VGA

YES (Spot Monitor Supported)













Composite

YES (Spot Monitor Supported)



Video Output Resolution



16CH Mode: 1080P





9CH Mode: 4K2K

















Audio



1 in (mic in) / 1 out











Alarm I/O



4 in / 1 out











RS485



YES















Either two 14TB SATA HDD installed in the recorder, or



HDD Storage**



one 14TB SATA HDD installed and a disk array connected to the recorder







via the eSATA interface











USB Port



YES











eSATA Port



Expandable with a SATA to eSATA cable













POE port

10/100 Mbps with PoE x 8





(IEEE802.3af)



Ethernet











LAN port

10/100 Mbps x 1

















Internet (WAN) port

1000 Mbps x 1











Software







Video Compression Format



H.265











Audio Compression Format



G711









Local / Remote Display Mode

16CH









Local / Remote Playback Mode

16CH









Local Single Channel Playback

YES











Recording Mode



Manual / Event / Alarm / Schedule











Record Streaming



Dual











Recording Resolution



240 IPS @ 3264 x 2448











Recording Throughput



80Mbps











Pre-alarm Recording



YES











Quick Search



Time / Event











Event Notification



Push Video / Push Status / Video Mail / Message Mail











Security



Multiple user access levels with password











Multicast



YES











Seamless Recording***



YES











EaZy Networking



YES











IVS***



YES











Spot Monitor Setup



Call Monitor / Event Monitor / Live Monitor (VGA & Composite)











Alarm Scenario Setup



YES











Alarm Pop-up & Preview



YES











Free DDNS Service



YES

Network

Protocols



DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP,



RTSP, RTCP, IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP











ONVIF Compatible



YES







Max. Online User



20











(1) Web browser: Windows Edge, Internet Explorer, Google Chrome & Safari

Remote Access



(2) PC program: CMS Lite, 32CH CMS software for Windows OS





(3) Mobile app: EagleEyes on iOS & Android mobile devices
