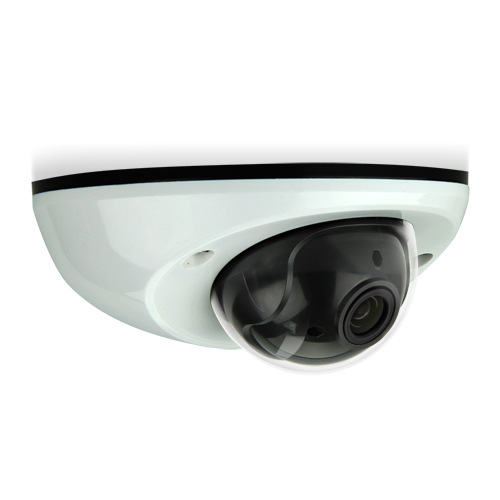

1.3 MP Vandal-Proof IP Camera
Features:
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation
3-axis mechanism for flexible ceiling and wall-mount installation - External alarm I/O device connection
- ONVIF ( ) standard supported to simplify system integration
- IK08 rated, vandal-proof lens cover
- Remote Surveillance
- Fully compatible with iOS and Android devices, and Internet
- Explorer on Windows operating
- Free PC program, CMS Lite, for 32CH devices monitoring on
- Windows operating system
- Push Video available on your iOS and Android devices when used with Push Video NVR series
Network
Network Compression | H.264 / MPEG4 / MJPEG | ||
Multiple Video Streaming | 4 (H.264, MPEG4, MJPEG) | ||
LAN Port | YES |
| |
LAN Speed | 10/100 Based-T Ethernet | ||
Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, | ||
Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP | |||
| |||
ONVIF Compatible | YES (Profile S) |
| |
Frame Rate | 30fps |
| |
Number of Online Users | 10 |
|
|
| (1) Multiple user access levels with password |
| |
Security | (2) IP address filtering |
| |
| (3) Digest authentication |
| |
| (1) Internet Explorer on Windows operating system |
| |
Remote Access | (2) CMS Lite, 32CH CMS software for Windows operating system | ||
| (3) EagleEyes on iOS & Android mobile devices |
| |
▓ Camera |
|
|
|
|
|
|
|
Image Sensor | 1/ 3” SONY CMOS image sensor | ||
Video Resolution | 1280 x 1024 / 1280 x 720 / 640 x 480 / 320 x 240 | ||
Min Illumination | 1 Lux / F1.5 |
| |
Shutter Speed | 1/2 to 1/10,000 sec | ||
S/N Ratio | More than 48dB (AGC off) | ||
Lens | f3.8mm / F1.5 |
| f2.8mm / F1.8 (Optional) |
Viewing Angle | 65.4° (Diagonal) / 49.9° (Horizontal) / |
| 98° (Diagonal) / 78° (Horizontal) / |
80.4° (Vertical) |
| 126° (Vertical) | |
|
| ||
White Balance | ATW |
| |
AGC | Auto |
| |
IRIS Mode | AES |
| |
POE | YES (IEEE 802.3af) | ||
External Alarm I/O | YES (1 input / 1 output) | ||
RAM | 10MB |
| |
MicroSD Card Slot | YES (up to 64GB) |
| |
Vandal Resistance | IK08 |
| |
Power Source (±10%) | 12V / 1A |
| |
Operating Temperature | 0℃~40℃ |
| |
Operation Humidity | 90% or less relative humidity | ||
Current Consumption (±10%) | 203mA |
| |
Power Consumption (±10%) | 3W (PoE) ; 3W (PoN) ; 2.43W (DC Adapter) | ||
Net Weight (kg) | 0.683 |
|
|
▓ Others |
|
|
|
|
|
|
|
Mobile Surveillance | iOS & Android mobile devices | ||
Motion Detection | YES |
| |
Event Notification | FTP / Email / SMS |
| |
3-Axis | YES |
| |
RTC (real-time clock) | YES |
| |
Digital Pan / Tilt / Zoom | YES | ||
