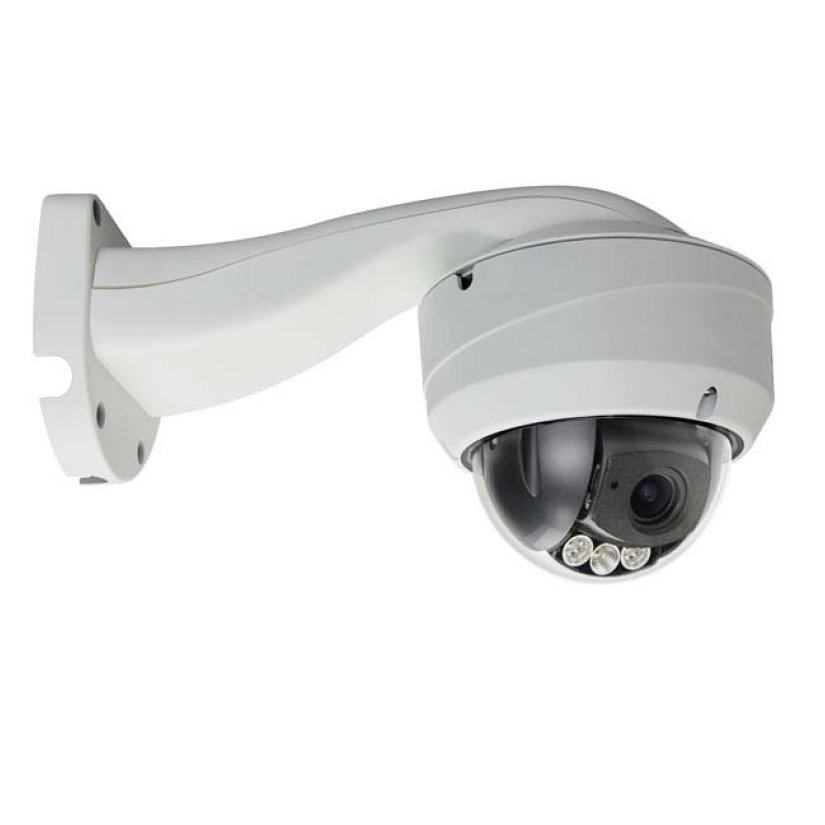

AVTECH - AVM542-BKT-A - Outdoor AVM542-BKT-A Long bracket
Part number:
AVM542-BKT-A
Price:
Outdoor AVM542-BKT-A Long bracket
Features:
- 3-axis mechanism for flexible ceiling and wall-mount installation
- MicroSD card support (up to 64GB) for video storage
- External alarm I/O device connection
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- Solid Light series featuring better overexposure prevention (Advanced Smart Light Control), automatic adjustment of image brightness, and longer lifetime of LEDs
- WDR to increase image recognizability in overexposure and dark areas
- IK10 rated, vandal-resistant case to withstand attempts to open or damage the camera
- Line in / out jacks available for audio transmission
- Waterproof design on the Ethernet cable connector
| Specifications | |
| Network | |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP |
| ONVIF Compatible | YES (Profile S) |
| Security | (1) Multiple user access levels with password (2) IP address filtering (3) Digest authentication |
| Remote Access | (1) Internet Explorer on Windows operating system (2) CMS Lite, 24CH CMS software for Windows operating system (3) EagleEyes on iOS & Android mobile devices |
| Video | |
| Network Compression | H.264 (Main Profile) / MJPEG |
| Video Resolution | 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
| Frame Rate | 30/25fps |
| Multiple Video Streaming | 4 (H.264 /MJPEG) |
| General | |
| Image Sensor | 1/ 2.8” SONY CMOS image sensor |
| Min Illumination | 0.1 Lux / F1.4 ~ F2.8, 0 Lux (IR LED ON) |
| Shutter Speed | 1/10,000 ~ 1/7.5 (Slow shutter) |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | f2.8 ~ 12mm / F1.4 ~ F2.8 |
| Viewing Angle | Wide: 103 (Horizontal) / 54° (Vertical) / 122° (Diagonal) Tele: 31° (Horizontal) / 17° (Vertical) / 36° (Diagonal) |
| IR LED | 3 Units |
| IR Effective Distance** | Default: up to 30 meters IR Enhanced Mode: up to 50 meters |
| IR Shift | YES |
| Smart Light Control | YES |
| White Balance | ATW |
| AGC | Auto |
| IRIS Mode | YSE |
| WDR | YES |
| Power Consumption (±10%) | 12.8W Max (PoE) ; 12.8W Max (PoN) ; 12W Max (DC Adapter) |
| Audio | |
| Line in | YES (Mono) |
| Line out | YES (Mono) |
| Others | |
| TV-out | YES |
| Mobile Surveillance | iOS & Android mobile devices |
| Motion Detection | YES |
| Event Notification | FTP / Email / SMS |
| 3-Axis | YES |
| Digital Pan / Tilt / Zoom | YES |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
