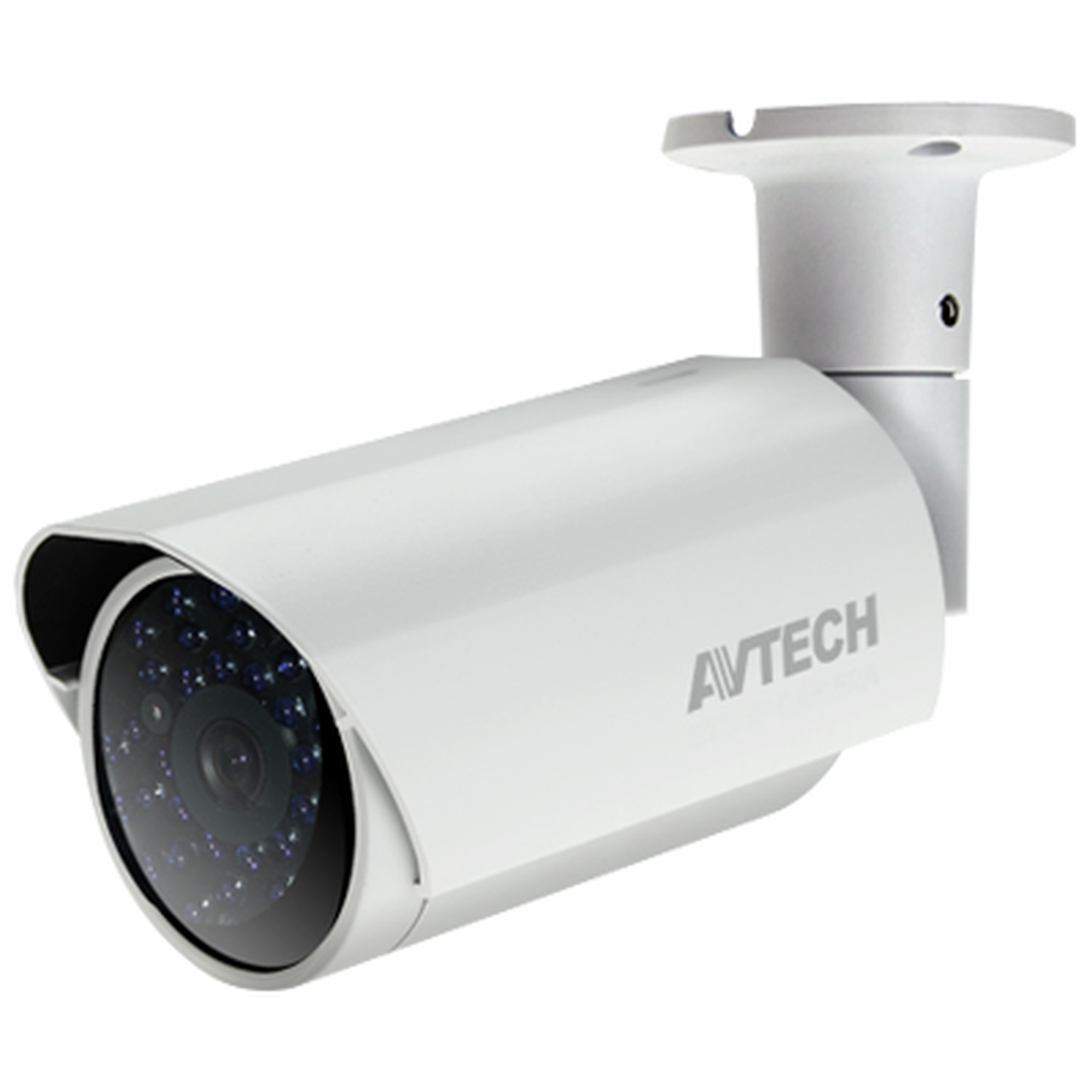

AVTECH - AVS144 - HD-SDI720P f3.8mm IP 66 Weatherproof 35 IR Bullet Camera
Part number:
AVS144
Price:
AVTech AVS144 HD-SDI720P f3.8mm IP 66 Weatherproof 35 IR Bullet
Features:
1.3MP CMOS Sensor
- 720P video output
- Low light sensitivity of 0.05 Lux, 0 Lux (IR ON)
- Day and night 24-hour surveillance with IR effective distance up to 20 meters
- IP67 for weather-proof application
| MODEL | AVS144 |
| Pick-up Element | 1/2.9" 1.3MP CMOS Sensor |
| Number of Pixels | 1312 (H) x 740(V) |
| Video Frame Rate | 720P@30fps / 720P@25fps |
| Min. Illumination | 0.05Lux / F1.5 (IR LED OFF), 0Lux (IR ON) |
| S/N Ratio | More than 48dB (AGC OFF) |
| Electronic Shutter | Auto ( NTSC：1/30~ 1/90,000；PAL：1/25 ~ 1/75,000) |
| Lens | f3.8 / F1.5 |
| Lens Angle | 74.3° (Horizontal) / 43.3° (Vertical) / 84.5° (Diagonal) |
| IR LED | 35 units |
| IR Effective Range | Up to 20 meters |
| IR Shift | YES |
| Day & Night Mode | Auto |
| IRIS Mode | AES |
| White Balance | Auto |
| IP Rating | IP67 |
| HD Video Output | SMPTE 296M (HD-SDI) |
| Operating Temperature | 0℃~40℃ |
| Power Source (±10%) | DC12V |
| Current Consumption (±10%) | IR OFF (90mA); IR ON (420mA) |
Name
Description
Size
Downloads
File
Data Sheet
0.1mb
