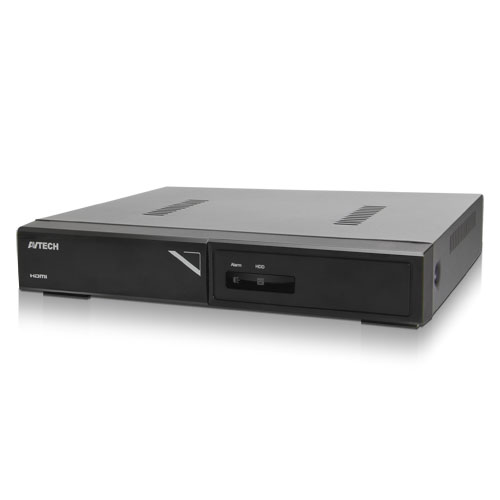

AVTECH - DGD1008-3TB - 8CH, 3 TB, Quadbrid HD CCTV DVR With Push Status And Eazy Networking
Part number:
DGD1008-3TB
Price:
8CH, 3 TB, Quadbrid HD CCTV DVR With Push Status And Eazy Networking
Features:
Free P2P Cloud EaZy Networking
- Cloud EaZy Networking available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.
- The “Buddy” feature to share the device access permission to other people.
- Device login / out notifications reported.
Push Status - Active Event Notification with EagleEyes App
- Push Status to send instant notifications for system events, such as video loss or HDD data removal.
Pentabrid Video Input
- 8 channels of IP / TVI / CVI / Analog HD / 960H video input, within which IP channels are up to 2 channels
- Up to 5MP recording
Spot Monitor
- In addition to the main display via the HDMI output, you can assign a secondary display to show live view, call monitor or event monitor.
| Specifications | ||
| Video | ||
| Video System | NTSC / PAL (auto detection) | |
| Video Compression Format | H.264 | |
| Video Signal | IP / TVI / CVI / Analog HD / 960H | |
| Video Input | 8 pentabrid channels (IP / TVI / CVI / Analog HD / 960H), within which IP channels are up to 2 channels | |
| Video Input Interface | Analog Mode IP Mode BNC VGA HDMI | Composite video signal 1 Vp-p 75Ω BNC Ethernet, 10/100 Base-T YES (Spot Monitor supported) YES YES |
| Video Output | ||
| Video Resolution | Analog Mode IP Mode | Live & Playback: 1080P / 720P / QHD / 960H / Frame / Field / CIF Record**: 5MP / 4MP / 1080P / 720P / QHD / 960H / Frame / Field / CIF Live & Playback: 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240 Record: 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240 |
| Record & Backup | ||
| Max. Recording Rate*** | Analog Mode IP Mode (2 channels) | Up to 12 IPS @ 2592 x 1944 (5MP)** Up to 15 IPS @ 2560 x 1440 (4MP)** Up to 120 IPS @ 1920 x 1080 Up to 240 IPS @ 1280 x 720 Up to 12 IPS @ 2592 x 1944 (5MP) Up to 30 IPS @ 1920 x 1080 Manual / Timer / Motion / Remote |
| Recording Mode | ||
| Pre-alarm Recording | YES | |
| Playback Channel | 8CH | |
| Quick Search | Time / Motion search mode | |
| Backup Device | USB 2.0 drive / Network | |
| Regular Backup | YES | |
| Audio | ||
| Audio Input | 1 audio input | |
| Audio Output | 1 audio output (Mono) | |
| General | ||
| Hard Disk Storage | 10TB SATA HDD x 1 | |
| SATA Interface | YES | |
| Image Quality Setting | SUPER BEST / BEST / HIGH / NORMAL | |
| USB Mouse Control | YES | |
| Motion Detection Area | 16 × 12 grids per channel | |
| Motion Detection Sensitivity | 3 adjustable parameters for accurate detection | |
| Event Notification | Push Status / FTP / E-Mail | |
| Picture Zoom | 2X digital zoom | |
| IR Remote Control | YES (IR receiver built-in) | |
| Key Lock (Password Protection) | YES | |
| User Level | 4 user levels for different access privilege | |
| Video Loss Detection | YES | |
| RS485 | YES | |
| Camera Title | Supports up to 25 letters | |
| Video Adjustable | Hue / Saturation / Contrast / Brightness | |
| Date Display Format | YY/MM/DD, DD/MM/YY & MM/DD/YY | |
| Daylight Saving | YES | |
| Power Source (±10%) | DC12V / 2A | |
| Operating Temperature | 10ºC ~ 40ºC (50ºF ~104ºF) | |
| Operating Humidity | 10% ~ 85% | |
| Dimensions (±10%)*** | 260(L) x 48(H) x 235.7(D) | |
| Net Weight (kg) | 1.2 | |
| Network | ||
| Ethernet | 10/100 Base-T. Supports remote control and live view via Ethernet | |
| Network Protocol | TCP/IP, PPPOE, DHCP and DDNS | |
| Remote Surveillance from PC | ||
| Compatible Operating System | Windows & MAC | |
| Compatible Program | Web Browser: CMS Lite: QuickTime: | Internet Explorer, Google Chrome & Safari 32CH central management software for Windows OS For both Windows and MAC operating systems |
| Max. online users | 20 | |
| Web Transmitting Compression Format | H.264 | |
| Network Live Audio | YES | |
| Remote Independent Operation | YES | |
| Remote Event Download & Playback | YES | |
| Mobile Surveillance | ||
| App | EagleEyes | |
| Compatible Devices | iOS & Android devices | |
| Push Status | YES | |
| Others | ||
| EaZy Networking | YES | |
| Spot Monitor Setup | Call Monitor / Event Monitor / Live Monitor (Composite) | |
| DCCS Support | YES | |
| AVTECH Free DDNS service | YES | |
| Privacy Mask | YES | |
| Multiplex Operation | Live display / record / playback / backup / network operations | |
| System Recovery | System auto recovery after power failure | |
| Optional Peripherals | HDMI Matrix (HDM02) / USB Joystick (AVX102) | |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
User Manual
19.1mb
File
Quick Start Guide
1.9mb
File
Network Setup Recorder
1.9mb
File
Dimensions
0.2mb
File
HDD Calculator
0mb
