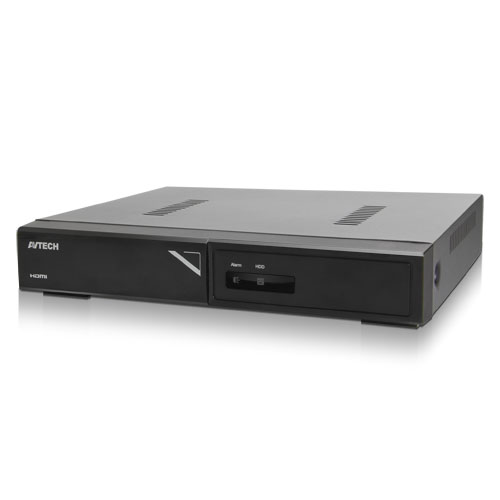

4CH Quadbrid HD CCTV DVR
Features:
Free P2P Cloud EaZy Networking
- Cloud EaZy Networking available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.
- The “Buddy” feature to share the device access permission to other people.
- Device login / out notifications reported.
Remote Surveillance
- Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system
- CMS Lite for 32 devices central management v Applicable also to Apple’s media player, QuickTime.
Pentabrid Video Input
Supports IP / Analog HD / TVI / CVI / 960H video input, within which IP channels are up to 2 channels
Push Status - Active Event Notification with EagleEyes App
Push Status to send instant notifications for system events, such as video loss or HDD data removal.
| Specification | |||
| Video | |||
| Video System | NTSC / PAL (auto detection) | ||
| Video Compression Format | H.264 | ||
| Video Signal | Analog HD / TVI / CVI / 960H | ||
| Video Input | 4 channels (Composite video signal 1 Vp-p 75Ω BNC) | ||
| Video Output | BNC | YES (Main Monitor / Call Monitor selectable) | |
| VGA | YES | ||
| HDMI | YES | ||
| Video Resolution | |||
| Analog Mode | 1080P / 720P / QHD / 960H / Frame / Field / CIF | IP Mode | Live & Playback: 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240 Record**: 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720/ 640 x 480 / 320 x 240 |
| Record & Backup | |||
| Maximum Recording Rate | |||
| Analog Mode | 1920 x 1080 @ 60 IPS / 50 IPS 1280 x 720 @ 120 IPS / 100 IPS | IP Mode | Up to 12 IPS @ 2592 x 1944 (5MP)** Up to 30 IPS @ 1920 x 1080 |
| Recording Mode | Manual / Timer / Motion / Remote/Alarm | ||
| Pre-alarm Recording | YES | ||
| Playback Channel | 4CH | ||
| Quick Search | Time / Motion / Alarm search mode | ||
| Backup Device | USB 2.0 drive / Network | ||
| Regular Backup | YES | ||
| Audio | |||
| Audio Input | 1 audio input | ||
| Audio Output | 1 audio output (Mono) | ||
| General | |||
| Hard Disk Storage** | 10TB SATA HDD x 2 | ||
| SATA Interface | YES | ||
| Image Quality Setting | SUPER BEST / BEST / HIGH / NORMAL | ||
| USB Mouse Control | YES | ||
| Motion Detection Area | 16 × 12 grids per channel | ||
| Motion Detection Sensitivity | 3 adjustable parameters for accurate detection | ||
| Event Notification | Push Video / Push Status / FTP / E-Mail | ||
| Picture Zoom | 2X digital zoom | ||
| IR Remote Control | YES (IR receiver built-in) | ||
| Key Lock (Password Protection) | YES | ||
| User Level | 4 user levels for different access privilege | ||
| Video Loss Detection | YES | ||
| Camera Title | Supports up to 25 letters | ||
| Video Adjustable | Hue / Saturation / Contrast / Brightness | ||
| Date Display Format | YY/MM/DD, DD/MM/YY & MM/DD/YY | ||
| Daylight Saving | YES | ||
| Power Source (±10%) | DC12V / 2A | ||
| Operating Temperature | 10℃ ~ 40℃ (50℉~104℉) | ||
| Operating Humidity | 10% ~ 85% | ||
| Dimensions (mm)*** | 260(L) x 48(H) x 235.7(D) | ||
| Net Weight | 1.2 | ||
| Network | ||
| Ethernet | 10/100 Base-T. Supports remote control and live view via Ethernet | |
| Network Protocol | TCP/IP, PPPOE, DHCP and DDNS | |
| Remote Surveillance from PC | ||
| Compatible Operating System | Windows & MAC | |
| Compatible Program | Web Browser: | Internet Explorer, Google Chrome & Safari |
| CMS Lite: | 32CH central management software for Windows OS | |
| QuickTime: | For both Windows and MAC operating systems | |
| Max. online users | 20 | |
| Web Transmitting Compression Format | H.264 | |
| Network Live Audio | YES | |
| Remote Independent Operation | YES | |
| Remote Event Download & Playback | YES | |
| Mobile Surveillance | ||
| App | EagleEyes | |
| Compatible Devices | iOS & Android devices | |
| Push Status | YES | |
| Others | ||
| EaZy Networking | YES | |
| DCCS Support | YES | |
| AVTECH Free DDNS service | YES | |
| Multiplex Operation | Live display / record / playback / backup / network operations | |
| System Recovery | System auto recovery after power failure | |
| Optional Peripherals | HDMI Matrix (HDM02) / USB Joystick (AVX102) | |
