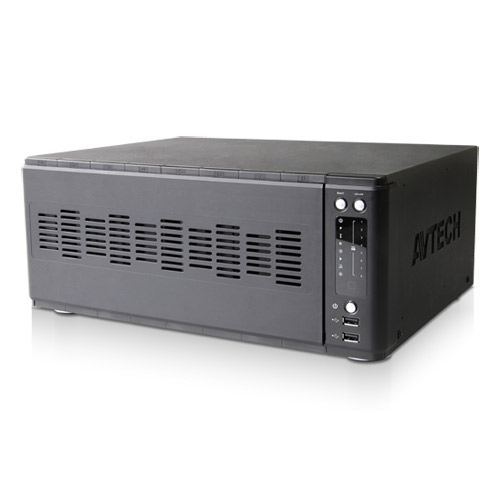

AVTECH - DGD8132-8TB - AV TECH DGD8132 - 8-BAY PENTABRID 32CH XVR w/ 8 TB preinstalled
Part number:
DGD8132-8TB
Price:

Free P2P Cloud EaZy Networking

Cloud EaZy Networking available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.

The “Buddy” feature to share the device access permission to other people.

Device login / out notifications reported.

Alarm Scenario Customization

”Scenario” is a new feature allowing you to customize a series of actions which will be run automatically after the specified event occurs. There are several scenario templates for you to choose when and what to do after a specific event occurs.

Event Pop-up / Preview

All events are listed on the right panel with corresponding event icons for you to quickly recognize the event type. The most current one will flash to catch your attention. Click one event and you’re able to preview the footage with pre-alarm images

Pentabrid Video Input

Supports IP / Analog HD / TVI / CVI / 960H video input

Up to 1080P recording

Spot Monitor

In addition to the main display via the HDMI output, you can assign a secondary display to show live view, call monitor or event monitor.

Push Status - Active Event Notification with EagleEyes App

Push Status to send instant notifications for system events, such as video loss or HDD data removal.

8-bay Storage Capacity

To solve the large storage requirement of 1080P recording, this recorder supports up to 8 hard disks to keep high quality video data without overwriting data so quickly. A power-saving mechanism is also adopted to reduce power consumption.

Video
Video SystemNTSC / PAL (auto detection)
Video Compression FormatH.264
Video Signal32 channels (TVI / CVI / Analog HD / 960H) within which IP channels are up to 2 channels.
Video Input32 channels (Composite video signal 1 Vp-p 75Ω BNC)
Record & Backup
Recording ModeManual / Timer / Motion / Alarm / Remote
Pre-alarm RecordingYES
Playback Channel16CH
Quick SearchTime / Motion / Alarm search mode
Backup DeviceUSB 3.0 drive / Network
Regular BackupYES (USB hard drive or FTP)
Audio
Audio Input16
Audio Output (Mono)2
External I/O
RS485YES
Alarm Input8
Alarm Output1
Alarm ScenarioYES
Name
Description
Size
Downloads
File
Data Sheet
0.4mb
File
Manual
3.9mb
File
Quick Guide
0.4mb
