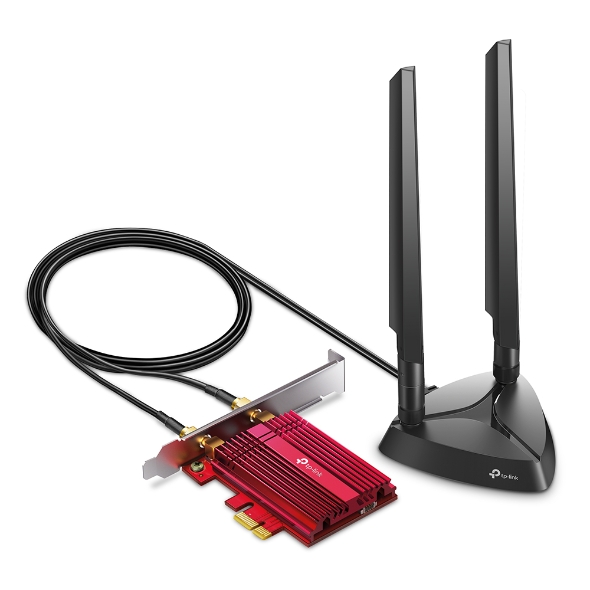

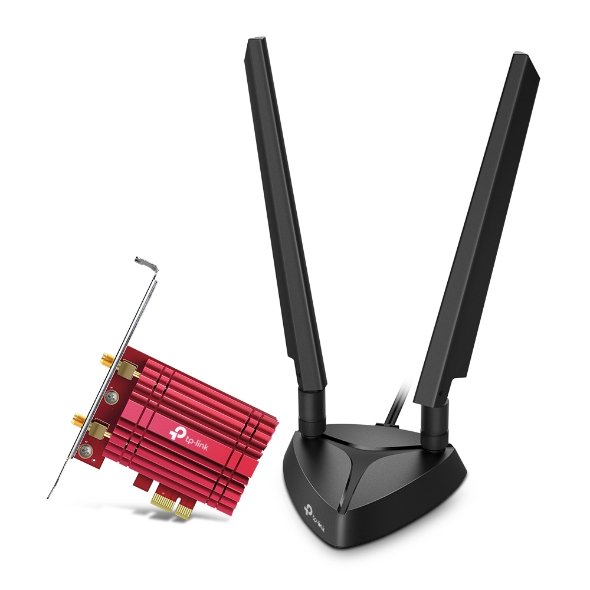

TP-Link - ARCHER TXE75E - AXE5400 WI-FI 6E BLUETOOTH 5.2 WRLS PCIE ADAPTER
Part number:
ARCHER TXE75E
Price:
AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter
Features:
- Unparalleled Tri-Band Speed — Boost your overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- WiFi 6E Standard — Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds
- Reliable Connections — The latest Intel Wi-Fi 6E chipset’s reduced latency and improved reliability unlocks your Wi-Fi 6E router’s full potential
- Wider Signal Coverage — Two multi-directional antennas with a magnetized base are designed for optimal signal reception
- Bluetooth 5.2 — The latest Bluetooth technology achieves faster speeds and broader coverage
- Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
- Reliably Engineered — The specialized heatsink and gold plating improve stability and performance even at high CPU temps
- Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards
| HARDWARE FEATURES | |
| Dimensions | 3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm) |
| Antenna Type | 2× High-Gain Tri-Band Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| WLAN Signal Rate | 6 GHz: |
| 11ax: Up tp 2402Mbps | |
| 5 GHz: | |
| 11ax: Up to 2402 Mbps(dynamic) | |
| 11ac: Up to 1732 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11a: Up to 54 Mbps(dynamic) | |
| 2.4 GHz: | |
| 11ax: Up to 574 Mbps(dynamic) | |
| 11n: Up to 400 Mbps(dynamic) | |
| 11g: Up to 54 Mbps(dynamic) | |
| 11b: Up to 11 Mbps(dynamic) | |
| WLAN Reception Sensitivity | 6 GHz: |
| 11ax HE160 MCS0:-86 | |
| 11ax HE160 MCS11:-56 | |
| 5 GHz: | |
| 11ax HE80 MCS0: -90 dBm | |
| 11ax HE80 MCS11: -59 dBm | |
| 11a 54Mbps: -77 dBm | |
| 11ac VHT80 MCS0: -92dBm | |
| 11ac VHT80 MCS9: -64dBm | |
| 2.4 GHz: | |
| 11ax HE40 MCS0: -91 dBm | |
| 11ax HE40 MCS11: -60 dBm | |
| 11g 54Mbps: -76 dBm | |
| 11n HT40 MCS7: -72dBm | |
| WLAN Transmit Power | 5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP) |
| 2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP) | |
| 6 GHz: 12dBm(FCC) | |
| WLAN Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | Archer TXE75E |
| Magnetized Antenna Base with 1m RF Cable | |
| 2× High-Gain Antennas | |

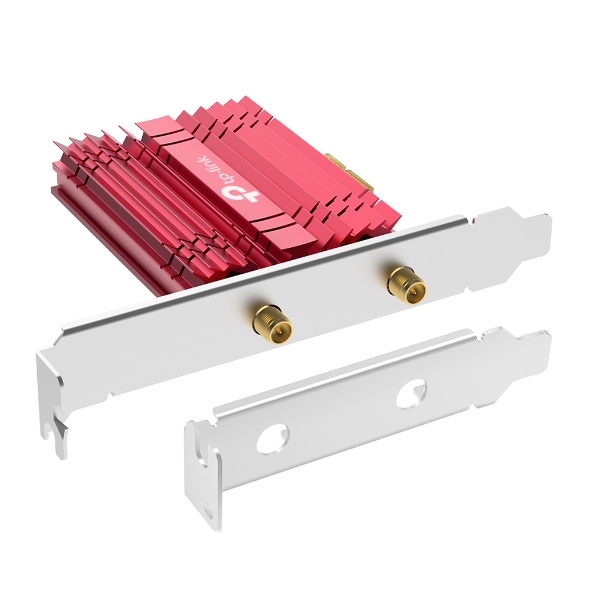

| Low-Profile Bracket | |
| Bluetooth Header Cable | |
| Quick Installation Guide | |
| Resource CD | |
| System Requirements | Supported operating systems include Windows 11 |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
