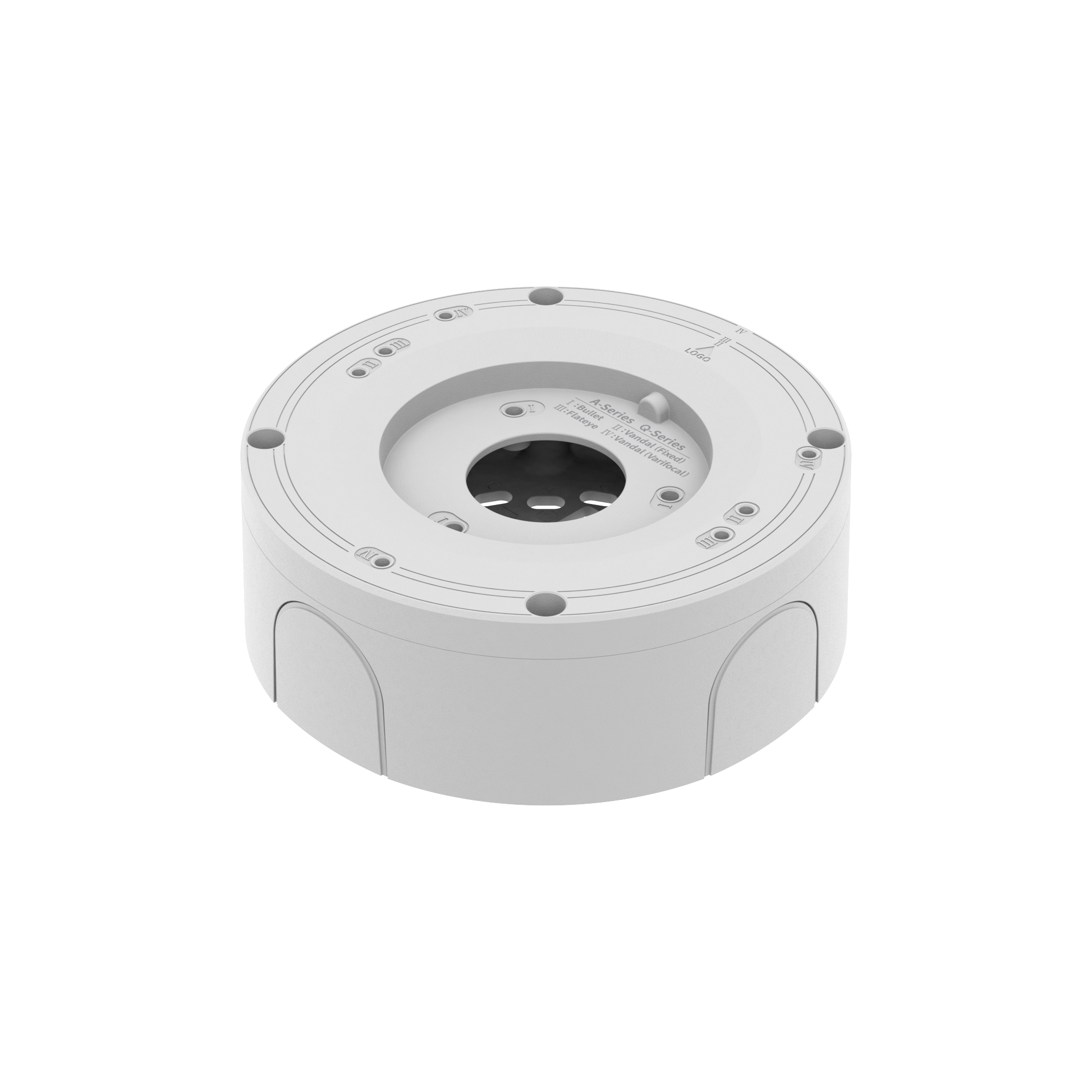

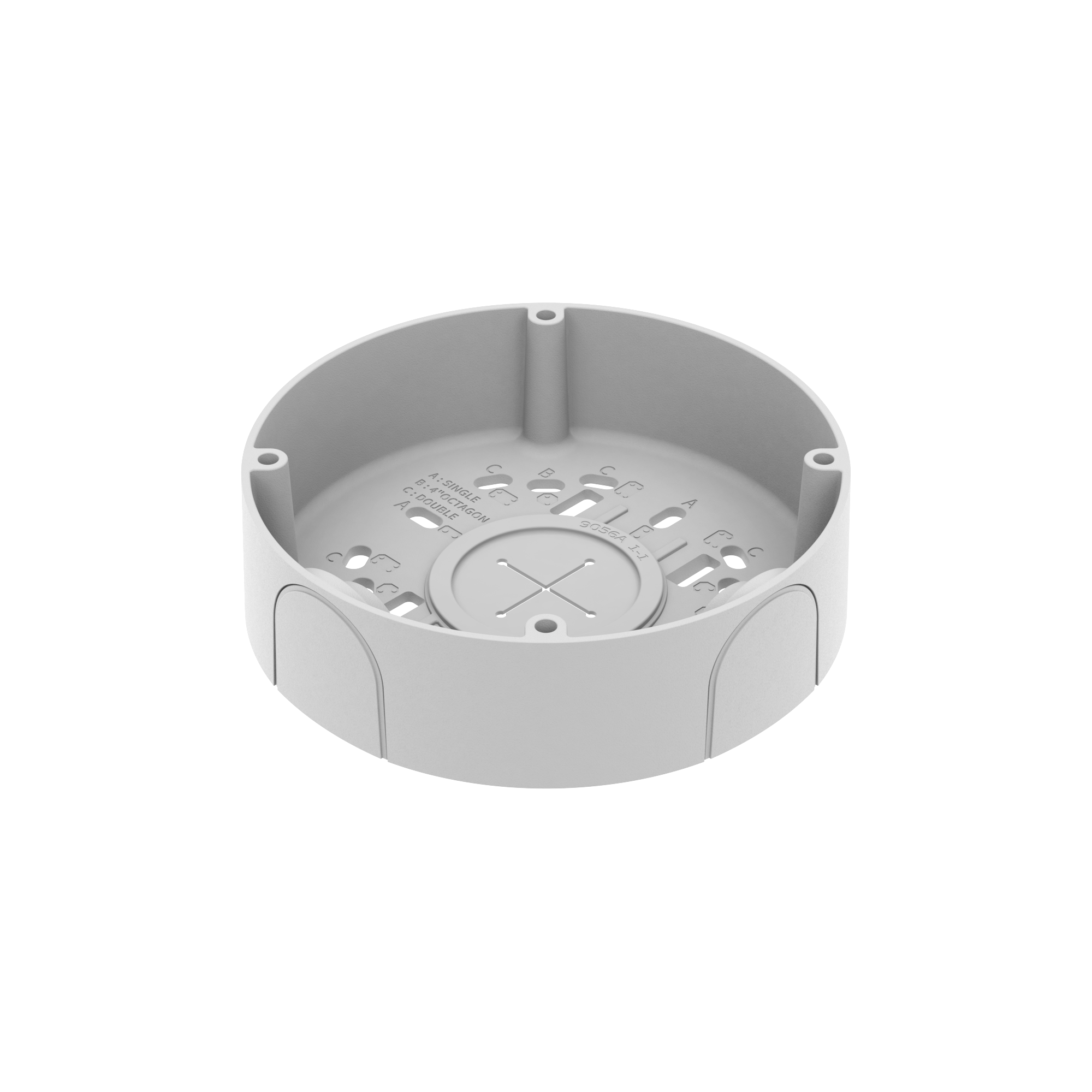

Backbox adapts various Wisenet A & Q series cameras for standard gangboxes, while providing conduit access and room for cables for easy installation. Mounts to SBP-300KMW1 for corner mount installations.
Installation Precautions
- Make sure that the installation place can endure at least 4 times of the total weight of this product and camera.
- Depending on some installation conditions, this product can be connected to 0.75” PF which is a screw peak processed pipe.
- Each anchor bolt must be capable of withstanding an extraction force of 700 kg.
- When installing the product outdoors, use interlocking devices made of stainless steel.
| MECHANICAL | |
| Color | White |
| Material | Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | Ø144.0x51.0mm(Ø5.67x2.01"), 440g |
| Mount Screw size | TR20 |
| Conduit hole | 19.1mm(3/4") (M25) |
| Supported products | ANV-L6012R/L6082R/L7012R/L7082R ANO-L6012R/L6022R/L6082R/L7012R/L7022R/L7082R ANE-L6012R/L7012R |
