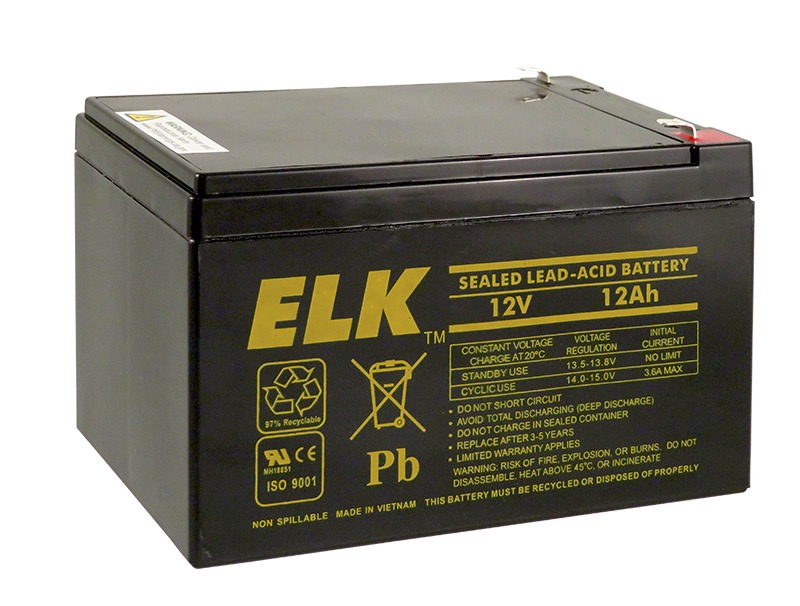

ELK - 12120 - Battery, Lead Acid 12V-12.0Ah
Part number:
12120
Price:
ELK Sealed Lead Acid Batteries are excellent for the following applications with regard to size, Amp hour rating, and proper terminal connections: battery backup (for Access Control Systems, Fire Alarm Systems, and Security Alarm Systems), emergency lights, lighted exit signs, and uninterruptible power supplies.
Features:
- Rechargeable
- All virgin materials for long life
- More lead for greater Ah capacity
- Size comparable to other manufacturer's lower Ah sizes
- UL Recognized Component
- 2 Year Over-the Counter Warranty
Whats Included:
- 12 Volt, 12 Ah SLA Battery with F1 Faston Tab Connectors
| Nominal Voltage | 12 Volts |
| Rated Capacity | 12 Ah (20 hour rate) |
Nominal Capacity (77°F, 25°C) 20 hour rate (0.6A) 10 hour rate (1.11A) 5 hour rate (2.04 A) 1 hour rate (6.74 A) | 12 Ah 11.14 Ah 10.2 Ah 6.74 Ah |
| Effect of Temperature on Capacity (20 hour rate) | Note: Prolonged exposure to extreme temperatures can have long term effects on battery performance |
104˚F (40˚C) 77˚F (25˚C) 32˚F (0˚C) 5˚F (-15˚C) | 102% 100% 85% 65% |
| Charge Constant Voltage Cycle | 14.4V - 14.8V at 77˚F (25˚C) Initial Charging Current 3.6A Max |
| Standby | 13.5V - 13.8V at 77˚F (25˚C) |
| Weight (Approximate) | 8.03 lbs (3.65 kg) |
| Terminals | F1 Faston Tab (.187”) |
