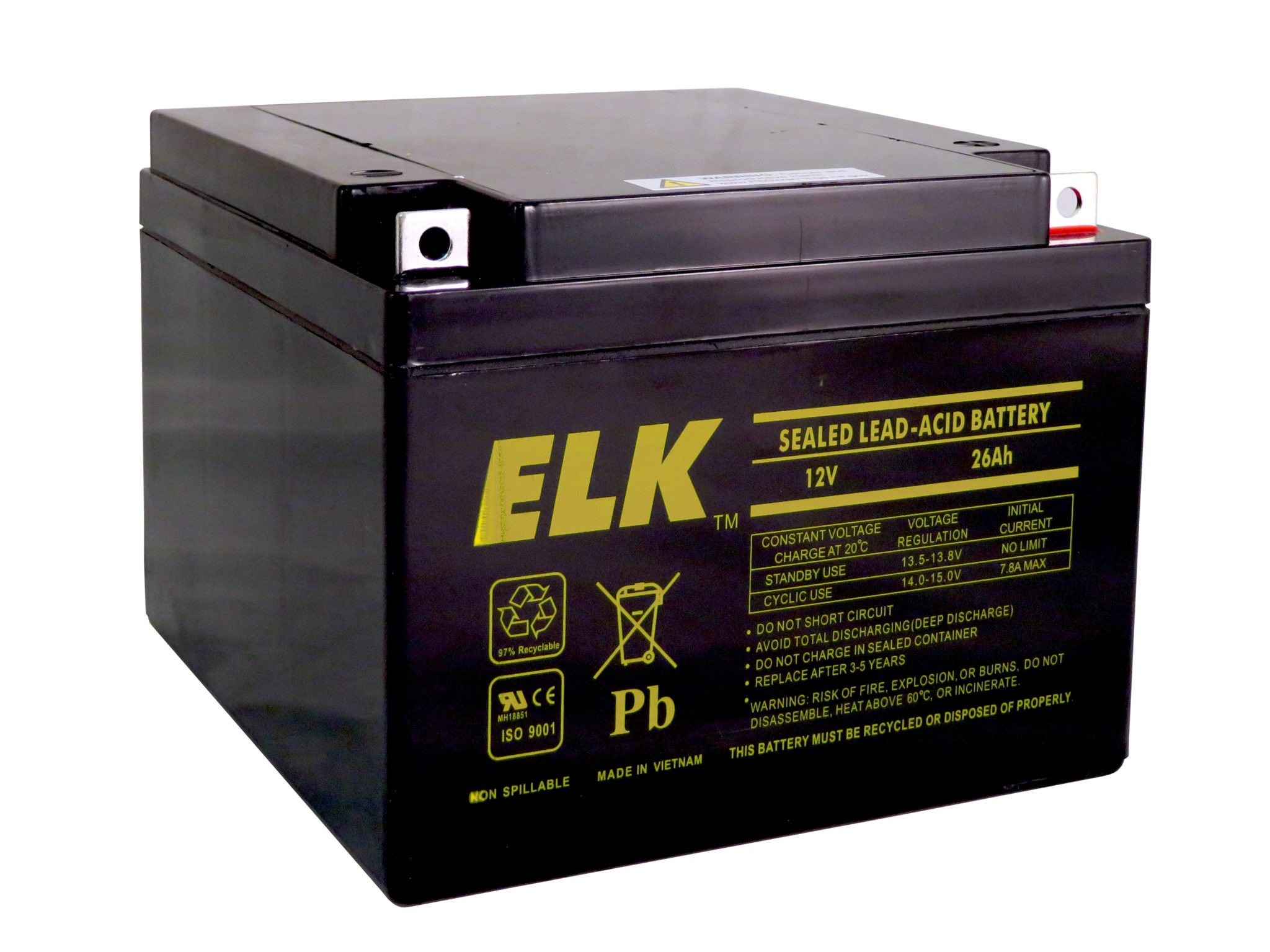

ELK - 12260 - Battery Lead Acid 12V-26.0Ah
Part number:
12260
Price:
ELK Sealed Lead Acid Batteries are excellent for the following applications with regard to size, Amp hour rating, and proper terminal connections: battery backup (for Access Control Systems, Fire Alarm Systems, and Security Alarm Systems), emergency lights, lighted exit signs, and uninterruptible power supplies.
Features:
- Rechargeable
- All virgin materials for long life
- More lead for greater Ah capacity
- Size comparable to other manufacturer's lower Ah sizes
- UL Recognized Component
- 2 Year Over-the Counter Warranty
Whats Included:
- 12 Volt, 26 Ah SLA Battery with 2)B1-M5 bolts and nuts
| Nominal Voltage | 12 Volts |
| Rated Capacity | 26 AH (20 hour rate) |
| Length | 6.54" (166mm) |
| Width | 6.89" (175mm) |
| Height | 4.96" (126mm) |
| Terminals | B1-M5 bolt & nutNominal Voltage: 12 Volts |
| Nominal Voltage | 12 Volts |
| Rated Capacity | 26 Ah (20 hour rate) |
Nominal Capacity (77°F, 25°C) 20 hour rate (1.3A) 10 hour rate (2.42A) 5 hour rate (4.24 A) 1 hour rate (14.51 A) |
26 Ah 24.2 Ah 21.2 Ah 14.51 Ah |
| Effect of Temperature on Capacity (20 hour rate) | Note: Prolonged exposure to extreme temperatures can have long term effects on battery performance |
| 104˚F (40˚C) | 102% |
| 77˚F (25˚C) | 100% |
| 32˚F (0˚C) | 85% |
| 5˚F (-15˚C) | 65% |
Charge Constant Voltage Cycle
Standby |
14.4V - 14.8V at 77˚F (25˚C) Initial Charging Current 7.5A Max 13.5V - 13.8V at 77˚F (25˚C) |
| Weight (Approximate) | 16.06 lbs (7.3 kg) |
| Terminals | B1-M5 bolt & nut |
