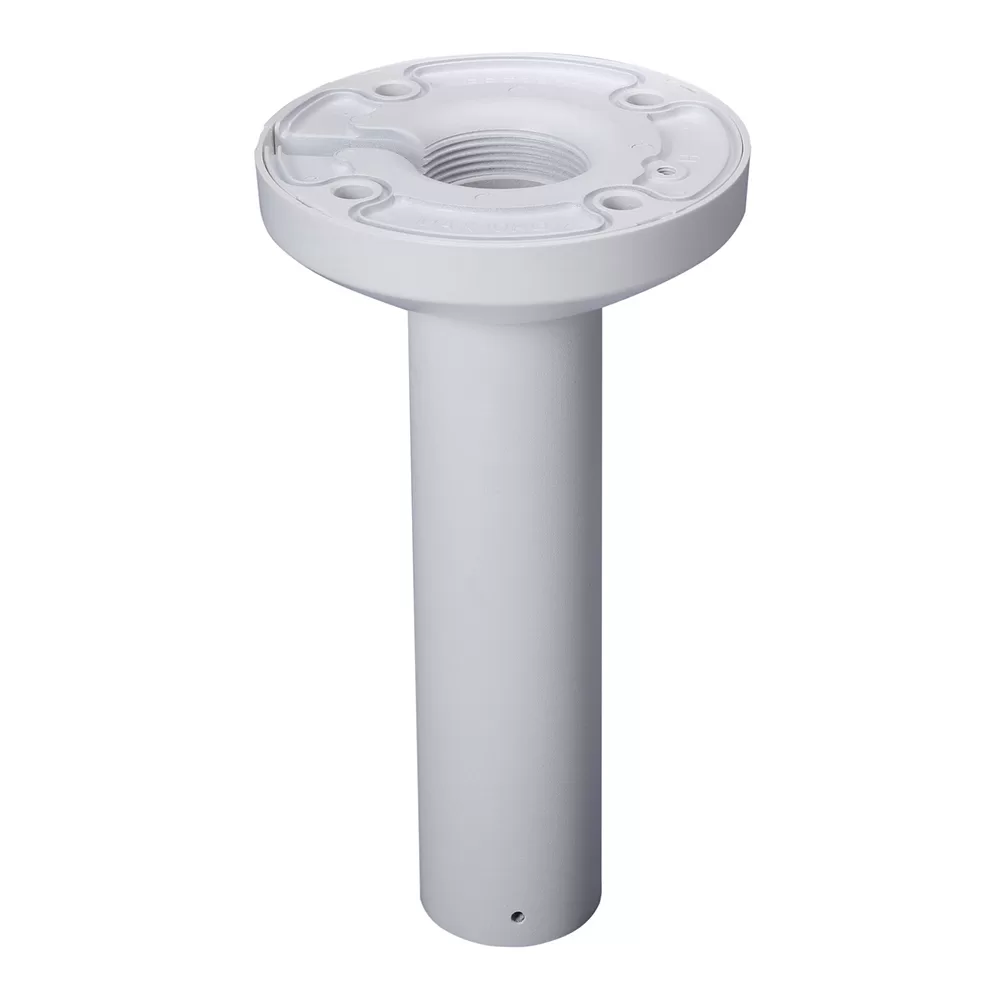

Dahua - PFB300C - Ceiling Mount Bracket
Part number:
PFB300C
Price:
Ceiling Mount Bracket
Features:
- Material: Aluminum and PC
- Dimensions: (W x H x D) 133.60 mm x 235.50 mm (5.26 in. x 9.27 in.)
- Pipe Thread: G1 1/2 in.
- Operating Temperature: -40° C to 60° C (-40° F to 140° F)
- Humidity: 0 to 90% RH
- Load Bearing: 7.0 kg (15.43 lb)
- Weight: 0.78 kg (1.72 lb)
| Technical Specifications | |
| Material | Aluminum and PC Plastic |
| Dimensions | ø133.60 mm x 235.50 mm (ø5.26 in. x 9.27 in.) |
| Weight | 0.78 kg (1.72 lb) |
| Color | White |
| Pipe Thread | G1 1/2-in. |
| Load Bearing Capacity | 7.0 kg (15.43 lbs) |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Humidity | 0% to 90% RH |
| Applicable Models | Dome and PTZ Camera Mount Adapters
Extension Poles
|
Name
Description
Size
Downloads
File
Datasheet
0.2mb
