Wi-Tek Cloud Switch Provides a more efficient, simple, secure and easy-to-use remote management method, supports intelligent deployment, automatic configuration of networking, abnormal alarms and other functions, without the need for professional IT operation and maintenance personnel, newbie can easily get started, support flexible 802.1Q VLAN, port aggregation, QoS, bandwidth control and other, easy to manage and maintain. Wi-Tek Cloud Switch is the cost-effective network solution for the ideal small and medium business.
Reliability:
Support STP/ RSTP/ MSTP Layer 2 protection technology to ensure the stability of the local area network, and include a backup connection to prevent when a working line fails, automatically provide a backup path to ensure that the local network is online for a long time, and network administrators can also Effectively suppress broadcast storms through IGMP Snooping technology.
Simple deployment:
No need to deploy a separate power supply system Network cable and wire in one Shorten construction period save input costs
Features:

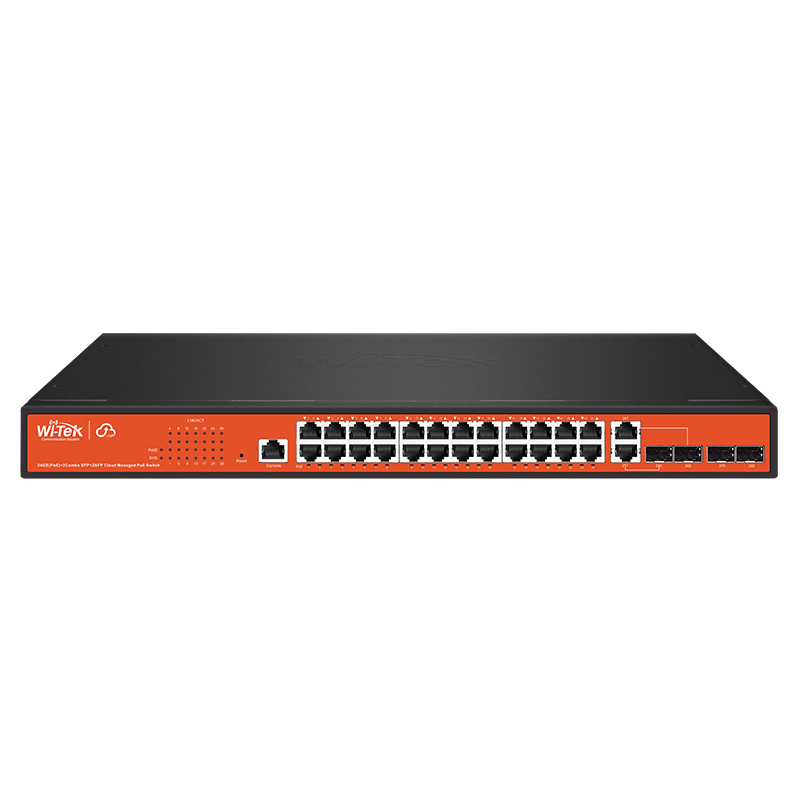

- 24 Gigabit PoE ports, 2 Combo Gigabit RJ45/SFP, 2 Gigabit SFP Slots
- 24×802.3af/at PoE+ ports with a total power supply of 370W
- Support cloud management, easy to maintain and manage
- Support IGMP Snooping, Link Aggregation, Loop Prevention
- QoS and IGMP snooping function optimize voice, video applications
- Support Web, CLI(Console Port, Telnet, SSH), SNMP and RMON bring powerful management capabilities
| Hardware Specifications | |
| Hardware Version | V1 |
| Interface | 24x10/100/1000Mbps RJ45 Ports 2xGigabit Combo ports 2xGigabit SFP Slots 1xConsole Port |
| Port Standard | IEEE 802.3 i:10BASE-T Ethernet; IEEE 802.3 u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber) |
| PoE Standard | 802.3af/at |
| PoE Ports | 8 up to 32W |
| PoE Power Budget | 370W |

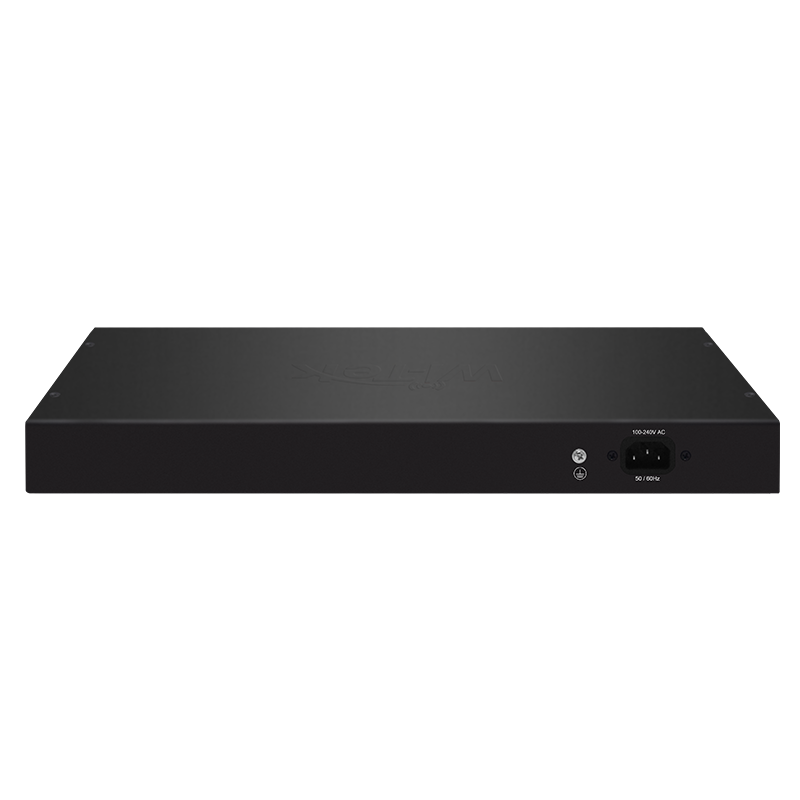

| Power Supply | 100-240V AC~50/60 Hz 400W |
| Switching Capacity | 56Gbps |
| Packet Forwarding Rate | 41.66Mpps |
| Jumbo Frame | 10KB |
| MAC Address Table | 8K |
| DRAM | 128MB |
| Flash | 16MB |
| Dimensions ( W x D x H ) | 440*207*44mm |
| Fan Quantity | 2 Fan |
| Protection Level | Common Mode ± 6KV, Differential Mode ± 4KV |
| Electrostatic Standard | Contact 6KV Air 8KV |
| Transmission Mode | Store— Forward |
| Installation | Rack- Mounted |
| Software Features | |
| Spanning Tree | IEEE 802.1D - STP |
| IEEE 802.1w - RSTP | |
| IEEE 802.1s - MSTP | |
| BPDU Guard | |
| STP Root Guard | |
| Loop Detection | |
| VLAN | Management VLAN |
| Private VLAN | |
| Voice VLAN | |
| Monitor VLAN | |
| Q- in-Q | |
| Protocol- Based VLAN | |
| MAC- Based VLAN | |
| Port | LACP |
| Static | |
| EEE | |
| Jumbo Frame | |
| Error- Disable | |
| Port mirroring( One-to-One Many-to-One Tx/Rx/Both) | |
| Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group) | |
| Security | Port Isolation |
| IEEE802.1x AAA | |
| ACL support L2+/L3/ L4 IPv6 ACL | |
| Dynamic ARP Protection | |
| Broadcast Storm | |
| RADIUS/TACACS+ | |
| RADIUS Authentication ( RFC2138) | |
| SSH v1.5/v2 .0 | |
| Anti- DDoS Attack | |
| DHCP Snooping | |
| QoS | Ipv4 QoS (QCEs) |
| Ipv6 QoS (QCEs) | |
| Priority Algorithm(WRR ,Absolute Priority, DSCP & CS) | |
| Class of Service(Port- Based ,802.1p CoS DSCP IP Priority, TCP/ UDP IPv4/ IPv6 ) | |
| Bandwidth(Input /Output) | |
| L2 Multicast | IGMP Snooping v1/v2/v3 |
| MLD Snooping v1/v2 | |
| MVR | |
| IPV6 | Ipv6/IPv4 |
| Ipv6 Web/SSL | |
| Ipv6 SNTP | |
| Ipv6 Telnet/SSH | |
| Ipv6 Ping/Traceroute | |
| Ipv6 TFTP | |
| Ipv6 RADIUS/TACACS+ | |
| Ipv6 SNMP | |
| Management | SNMP (v1 , v2c , v3 ) |
| RMON ( 1 , 2 , 3 & 9 ) | |
| Firmware Upgrade | |
| Configuration Export/import | |
| DHCP (Option 82, Option 66, Option 67) | |
| System Log Supports Event/Error Log | |
| Manage Access Control( Console Port , SNMP, HTTP/ HTTPS , Telnet) | |
| LLDP ( IEEE802.1AB) | |
| LLDP- MED | |
| UDLD | |
| DNS Client | |
| Traceroute | |
| Ping | |
| DDMI | |
| NTP/ SNTP ( RFC2030) | |
| Advanced Features | ONVIF (ONVIF Detection , ONVIF Server(NLM) ) |
| Batch Firmware Upgrading | |
| Intelligent Network Monitoring | |
| Abnormal Event Warnings | |
| Automatic Device Discovery | |
| Support Cloud Management | |
| Support Remote Management | |
| Support Cloud VLAN Configuration | |
| Support Topology Display | |
| Support Cloud Control Port Configuration | |
| Certfication | CE , FCC , RoHS |
| Environment | Operating Temperature: 0–40 ℃ Storage Temperature: -40– 70 ℃ Operating Humidity: 10– 90% RH non-condensing Storage Humidity: 5– 90% RH non-condensing |
