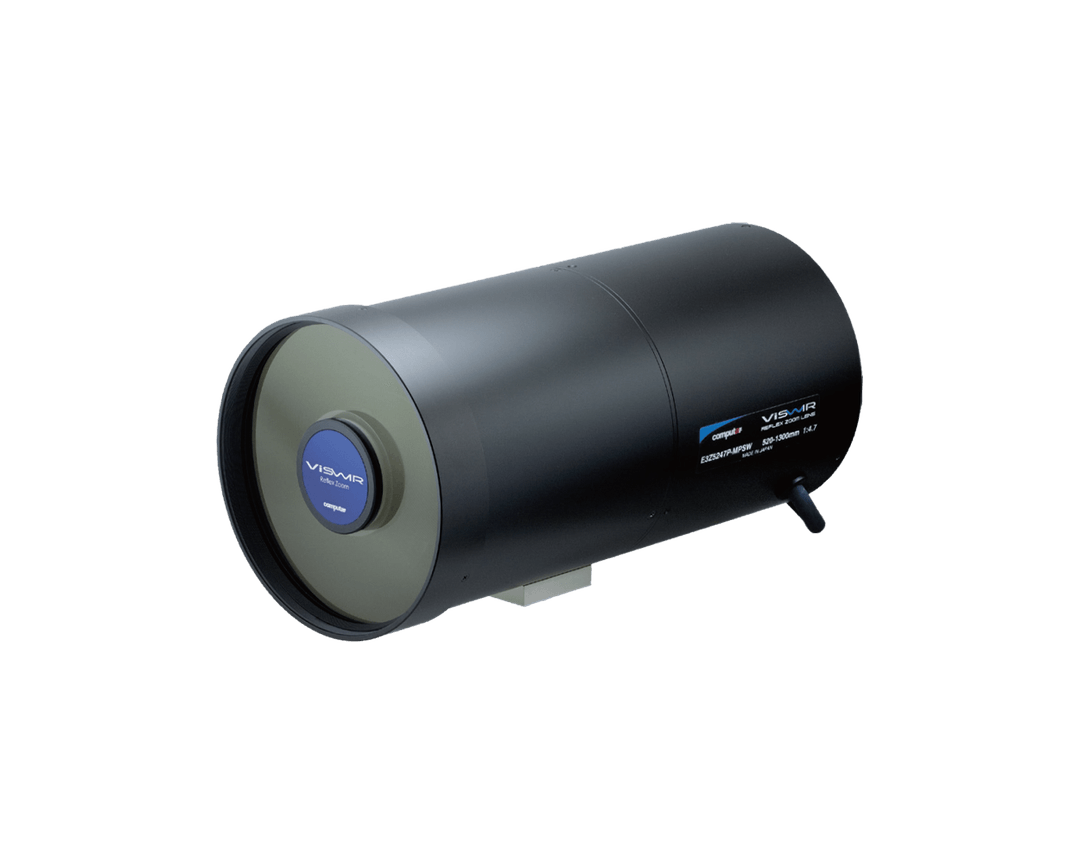

Computar - E3Z5247P-MPSW - 1/1.8", 1.3MP 520mm-1,300mm, F4.7, ViSWIR Reflex Zoom Lens for Visible-Short Wave IR, (C-Mount)
Part number:
E3Z5247P-MPSW
Price:
NEW! Reflex Zoom lens ideal for IMX990/991.
The E3Z5247P-MPSW 400-1700nm reflex zoom is engineered for the next generation of Visible & SWIR image sensors (IMX990/IMX991). The compact & lightweight lens has a working distance 25m- infinity and is equipped with an adjustable back-focus mechanism.
Features
- 1.3MP
- SWIR imaging
- 1 1/8" sensor size
- 1520 - 1300mm focal length
- C-mount
- F4.7
- Working distance 25m- infinity
- Dedicated design for Visible+SWIR image sensor (IMX990/IMX991)
- Special optical design for 400-1700nm
- Reflex zoom for super-telephoto spec
- Adjustable back-focus mechanism
- Compact & lightweight design (W130 x H133.5 x D275.5mm, 2500g)
| SENSOR SIZE | FOCAL LENGTH | WAVE LENGTH | MOUNT | F-NUMBER | WORKING DISTANCE |
| 1/1.8" | 520 - 1300mm | 400 - 1700nm | C | 4.7 | 25m - INF. |
