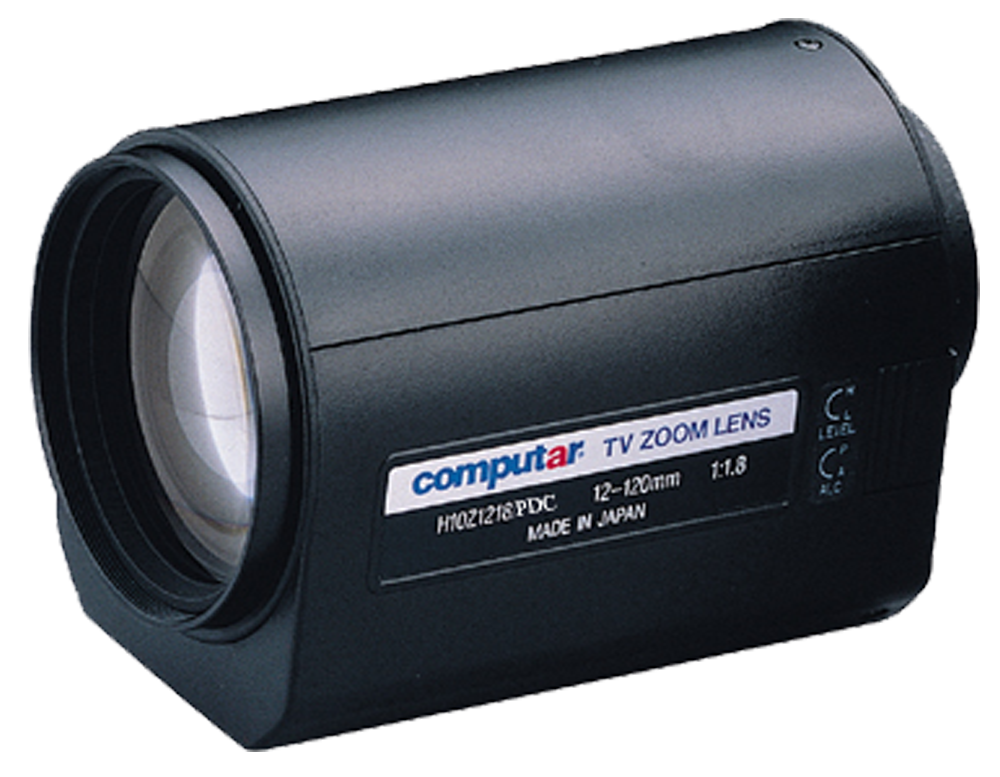

Computar - H10Z1218PDC - 1/2" 12-120mm f1.8 10X Motorized Zoom, DC Auto Iris
Part number:
H10Z1218PDC
Price:
1/2" 12-120mm f1.8 10X Motorized Zoom, DC Auto Iris
| Model No. | H10Z1218PDC | Effective F o t $ 54 0m Lens Aperture Rea $ 9.2mm | |
| Focal Length | 12-120mm | ||
| Max. Aperture Ratio | 1 : 1.8 | Back Focal Length 14.4 mm | |
| Max. Image Format | 6.4 x 4.8mm ( @ 8mm) | Flange Back Length 17.526 mm | |
| Operation Range | Iris | F1.8 - 560 | Mount C—Mount |
| Focus | 1.5m - Inf. | Filter Size M62 P=0.75 mm | |
| Zoom | 12-120mm | Tripod Screw 1/4”—20UNC | |
| Control | Iris | DC Auto Iris(by galvanometer) | Dimensions W70 x H79.5 x D123.5mm |
| Focus | Motorized, Preset | Weight 670g | |
| Zoom | Motorized, Preset | ||
| Object Dimension at M.O.D. | 12mm | 78.7 x 58.9cm | |
| 120mm | 8.1 x 6.0cm | ||
| Angle Of View | D | 1/2" | 36.4~3.8 | 1/3" | 27.6~2.9 |
| H | 29.4~3.1 | 22.2~2.3 | |||
| V | 22.2~2.3 | 16.7~1.8 |
