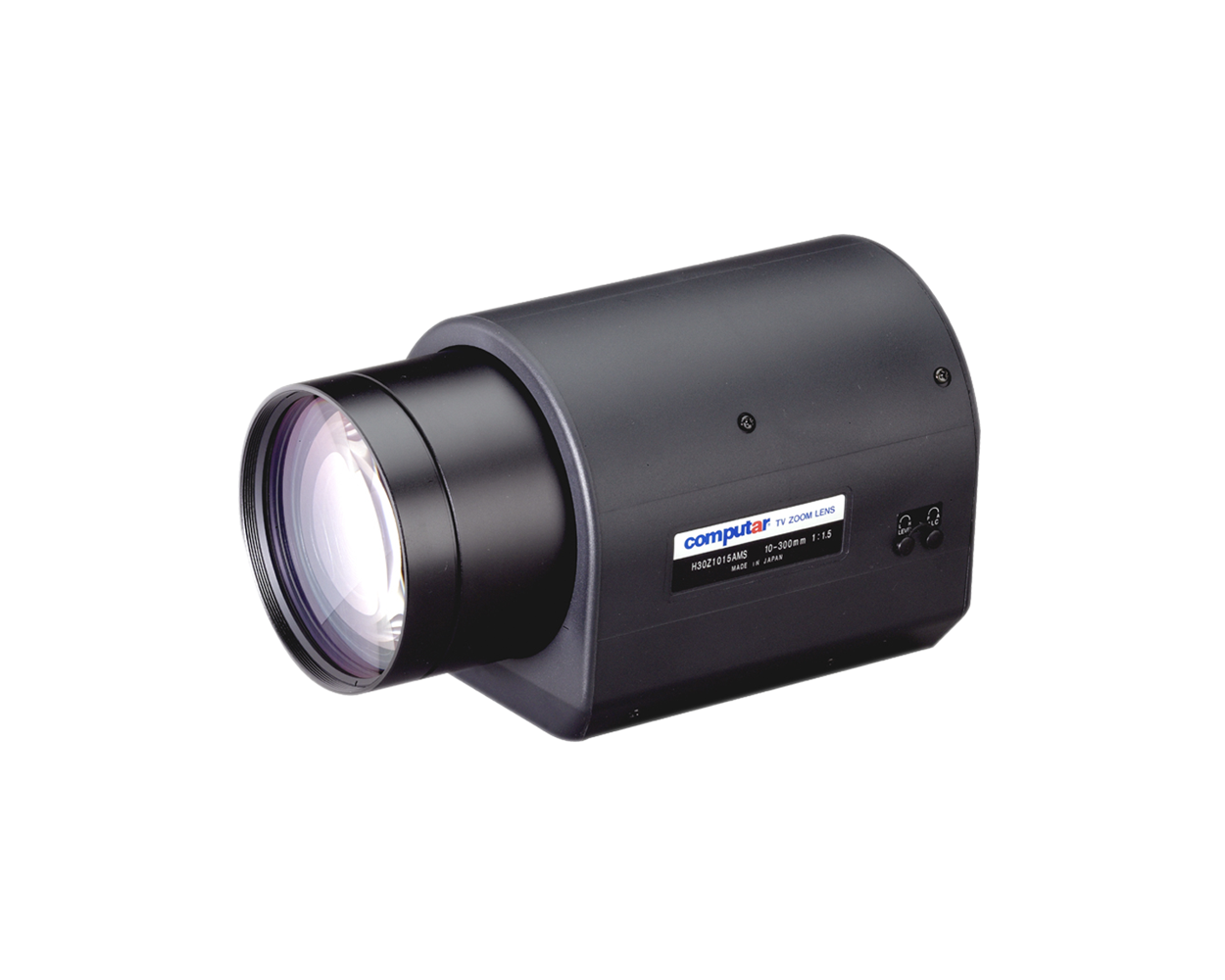

Computar - H30Z1015AMS - 10-300mm f1.5, 30X, A/I with Spot
Part number:
H30Z1015AMS
Price:
10-300mm f1.5, 30X, A/I with Spot.
| Model No. | H30Z1015AMS | Effective Lens Aperture | Front | 94mm | |||
| Focal Length | 10mm - 300mm | Rear | 14.8mm | ||||
| Max. Aperture Ratio | 1:1.5 | Back Focal Length | 15.8mm | ||||
| Max. Image Format | 6.4mm x 4.8mm(8mm) | Flange Back Length | 17.526mm | ||||
| Operation Range | Iris | F1.5 - F560C | Mount | C-Mount | |||
| Focus | 2.2m - Inf. | Filter Size | M100 P1mm | ||||
| Zoom | 10mm - 300mm | Tripod Screw | 1/4 - 20UNC | ||||
| Control | Iris | Video Auto Iris | Dimensions | W125mm x H144.5mm x D246.5mm | |||
| Focus | Motorized | Weight | 3170g | ||||
| Zoom | Motorized | ||||||
Object Dimension at M.O.D. | 10mm | 140.8cm x 104.8cm | |||||
| 300mm | 4.8cm x 3.6cm | ||||||
Angle of View
| D | 1/2 type | 44.0 - 1.55 | 1/3 type | 33.3 - 1.17 | 1/4 type | 25.1 - 0.88 |
| H | 35.5 - 1.25 | 26.8 - 0.94 | 20.1 - 0.71 | ||||
| V | 26.8 - 0.94 | 20.1 - 0.71 | 15.1 - 0.53 | ||||
| Auto Iris | Focus | Zoom | |||||
| Supply Voltage | DC8.5V - DC16V | DC8V | DC8V | ||||
| Current | 40mA or less | 80mA or less | 60mA or less | ||||
| Response Time | Approx. 2 sec. | Approx. 8.5 sec. | Approx. 4.5 sec. | ||||
| Preset Potentiometer | ---- | ---- | ---- | ||||
| Light Weighting Method | Adjustable between Average - Peak (to be Set at Average at Factory) | ||||||
| Remote Control | ALC Remote (Option) | ||||||
| Input Signal | Video Signal (V. or V.S.) | ||||||
| Iris Accurancy | 15% at Video Signal Level | ||||||
| Sensitivity Adjustment | 0.5V(p-p) - 1.0V(p-p) (Video Signal) | ||||||
| Input Impedance | High Impedance | ||||||
| Operating Temperature | 10C - 50C | ||||||
