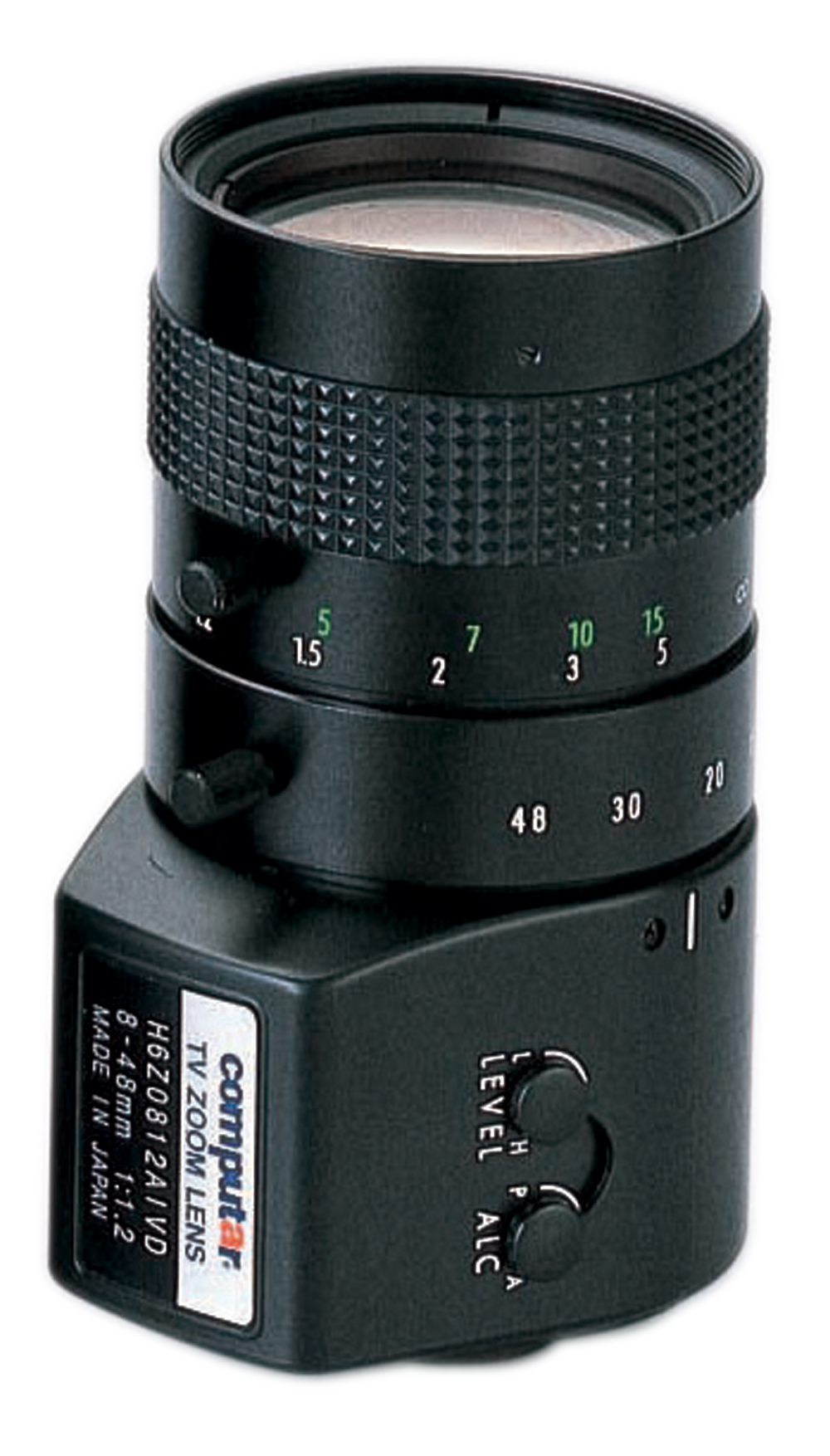

Computar - H6Z0812AIVD - 1/2" 8-48mm f1.2 manual zoom with A/I Video (C-Mount)
Part number:
H6Z0812AIVD
Price:
1/2" 8-48mm f1.2 manual zoom with A/I Video (C-Mount)
| Model No. | H6Z0812AIVD | Effective Lens Aperture | Front | Ø39.2mm | |||
| Focal Length | 8mm - 48mm | Rear | Ø16.6mm | ||||
| Max. Aperture Ratio | 1:1.2 | Back Focal Length | 11.4mm | ||||
| Max. Image Format | 6.4mm x 4.8mm(Ø8mm) | Flange Back Length | 17.526mm | ||||
| Operation Range | Iris | F1.2 - F560C | Mount | C-Mount | |||
| Focus | 1.2m - Inf. | Filter Size | M49 P=0.75mm | ||||
| Zoom | 8mm - 48mm | Tripod Screw | ---- | ||||
| Control | Iris | Video Auto Iris | Dimensions | W52.6mm x H64mm x D97mm | |||
| Focus | Manual | Weight | 295g | ||||
| Zoom | Manual | ||||||
| Object Dimension at M.O.D. | 8mm | 98.4cm x 72.2cm | |||||
| 48mm | 16.8cm x 12.8cm | ||||||
| Angle of View | D | 1/2 type | 55.8° - 9.9° | 1/3 type | 41.8° - 7.5° | 1/4 type | 31.4° - 5.6° |
| H | 44.6° - 8.0° | 33.5° - 6.1° | 25.2° - 4.6° | ||||
| V | 33.5° - 6.1° | 25.2° - 4.6° | 18.9° - 3.4° | ||||
| Supply Voltage | DC8.5V - DC16V | ||||||
| Current | Less than 35mA | ||||||
| Response Time | Approx. 2 sec. | ||||||
| Light Weighting Method | Adjustable between Average - Peak (to be Set at Average at Factory) | ||||||
| Input Signal | Video Signal (V. or V.S.) | ||||||
| Iris Accurancy | ±15% at Video Signal Level | ||||||
| Sensitivity Adjustment | 0.5V(p-p) - 1.0V(p-p) (Video Signal) | ||||||
| Input Impedance | High Impedance | ||||||
| Operating Temperature | -20°C - +50°C | ||||||
