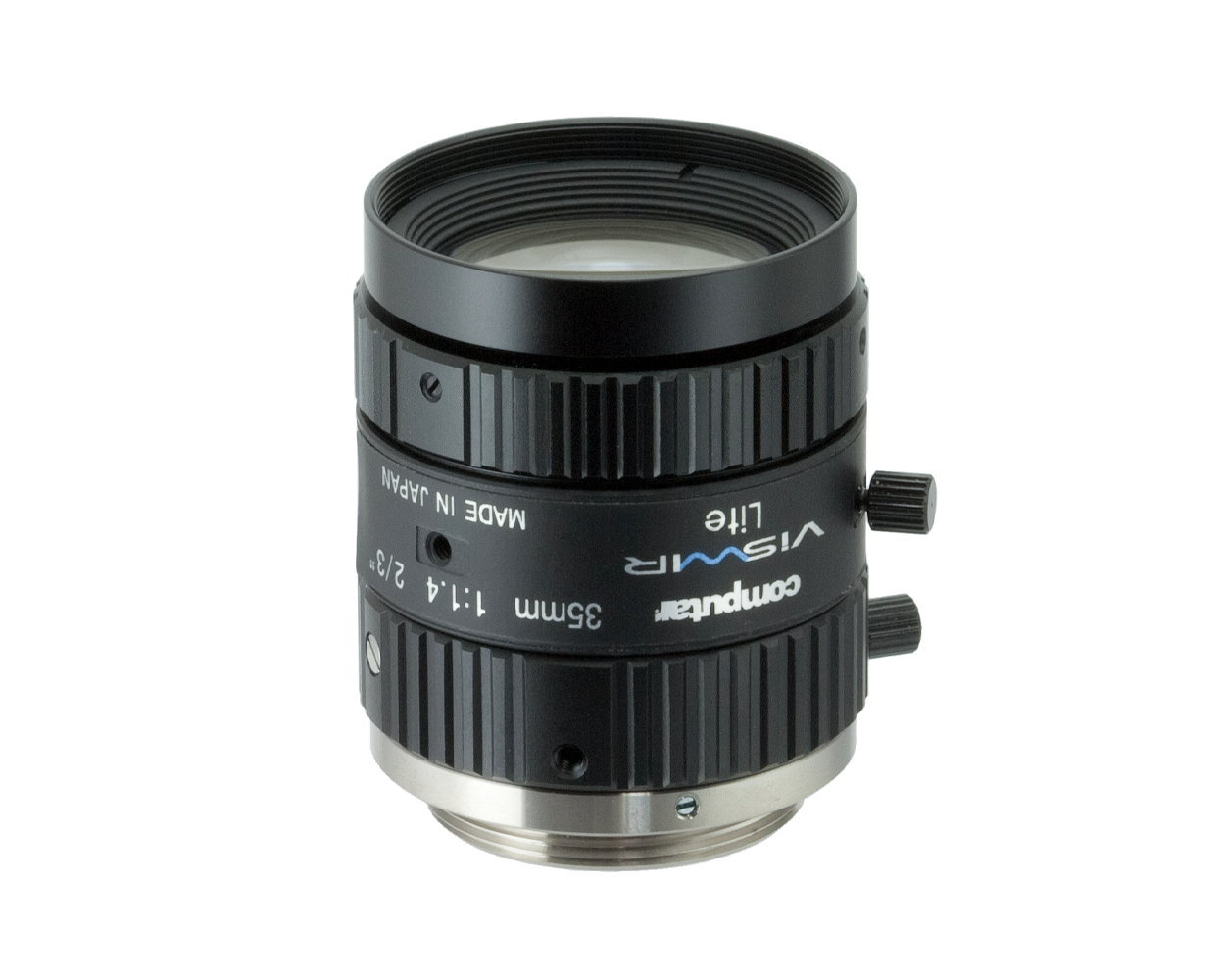

The ViSWIR Lite Series achieves a clear and precise image visible to the SWIR range by applying a multilayer coating to absorb the specific light and minimize the adverse lighting effects. The broadband anti-reflection coating is applied on all ViSWIR lens elements, allowing high and stable transmission at a super-wide wavelength range of 400nm to 1,700nm.

Features:

• 1.5MP
• 35mm, F1.4
• Visible + SWIR sensors
• Unique coating technology delivers high transmission from 400nm to 1,700nm.
• High-resolution, low-distortion design offers Megapixel clarity in the hyperspectral application
• Also available in 5mm, 8mm, 12mm, 16mm, 25mm, and 50mm
• Designed around the popular 8.20mm image circle format
• The industry’s most compact form factor.  Fits in most applications
