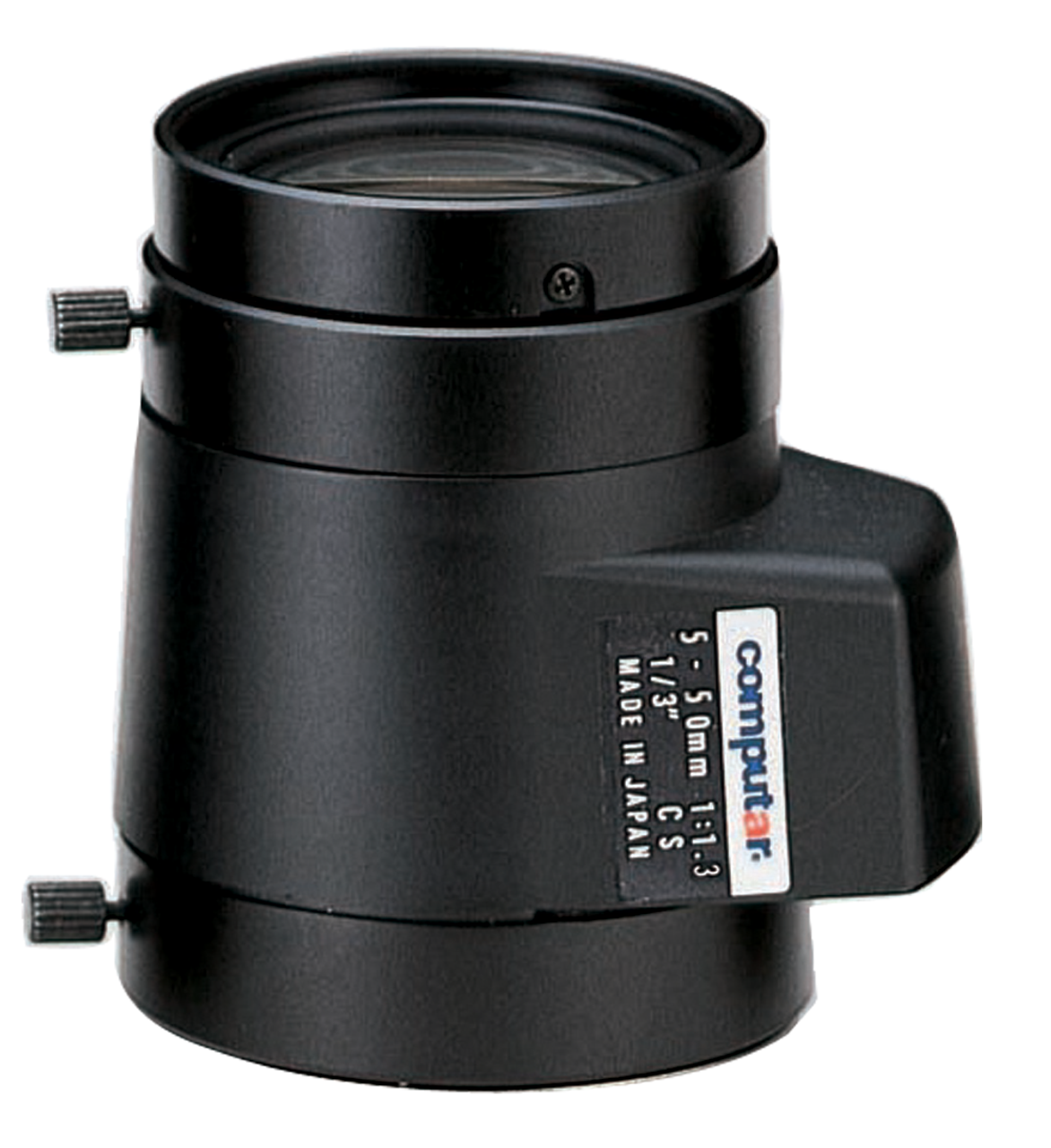

Computar - TG10Z0513AFCS - 1/3" 5-50mm f1.3 A/I
Part number:
TG10Z0513AFCS
Price:
1/3" 5-50mm f1.3 A/I
| Model No. | TG10Z0513AFCS-2 | Effective Lens Aperture | Front | Ø29.5mm | |||
| Focal Length | 5mm - 50mm | Rear | Ø8.7mm | ||||
| Max. Aperture Ratio | 1:1.3 | Back Focal Length | Tele | 10.6mm | |||
| Max. Image Format | 4.8mm x 3.6mm(Ø6mm) | Wide | 10.5mm | ||||
| Operation Range | Iris | F1.3 - F360C | Flange Back Length | 12.5mm | |||
| Focus | 0.8m - Inf. | Mount | CS-Mount | ||||
| Zoom | 5mm - 50mm | Filter Size | M37.5 P=0.5mm | ||||
| Control | Iris | Video Auto Iris | Dimensions | Ø41.7mm x 57.5mm x 57.7mm | |||
| Focus | Manual | Weight | 145g | ||||
| Zoom | Manual | ||||||
| Object Dimension at M.O.D. | 5mm | 77.7cm x 57cm | |||||
| 50mm | 7.8cm x 6cm | ||||||
| Angle of View | D | 1/3 type | 64.0° - 6.9° | 1/4 type | 48.8° - 5.3° | ||
| H | 51.8° - 5.6° | 39.2° - 4.3° | |||||
| V | 39.2° - 4.3° | 29.5° - 3.2° | |||||
| Supply Voltage | DC8.5V - DC16V | ||||||
| Current | Less than 40mA | ||||||
| Response Time | Approx. 2 sec. | ||||||
| Light Weighting Method | Adjustable between Average - Peak (to be Set at Average at Factory) | ||||||
| Input Signal | Video Signal (V. or V.S.) | ||||||
| Iris Accurancy | ±15% at Video Signal Level | ||||||
| Sensitivity Adjustment | 0.5V(p-p) - 1.0V(p-p) (Video Signal) | ||||||
| Input Impedance | High Impedance | ||||||
| Operating Temperature | -20°C - +50°C | ||||||
