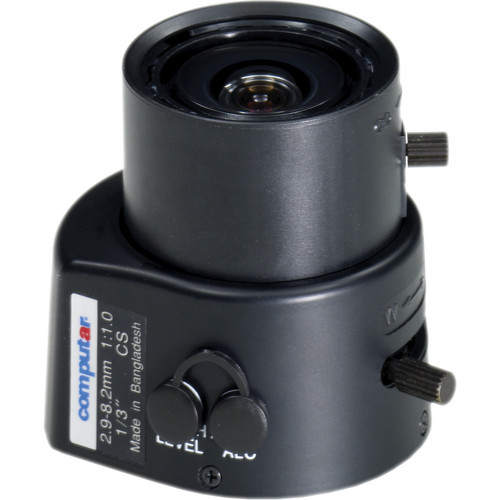

Computar - TG3Z2910AFCS - 1/3" 2.9-8.2mm f1.0 A/I
Part number:
TG3Z2910AFCS
Price:
1/3" 2.9-8.2mm f1.0 A/I .
Features:
- Designed for CS-Mount Cameras
- For 1/3" Format Sensors
- 2.9-8.2mm Focal Length
- Aperture of f/1.0 to 360C
- Focus 0.5 m to Infinity
- Manual Zoom & Focus
- Video Auto Iris
- Aspherical Lens Surface
| Model No. | TG3Z291 OAFCS | Effective Lens Aperture | Front | 6 19.0mm | |||
| Focal Length | 2.9mm - 8.2mm | Rear | 6 8.5mm | ||||
| Max. Aperture Ratio | 1.1.0 | Back Focal Length | Tele | 14.0mm | |||
| Max. Image Format | 4.8mm x 3.6mm( g 6mm) | Wide | 7.8mm | ||||
| Operation Range | Aris | FJ.0 - F360C | Flange Back Length | 12.5mm | |||
| Focu s | 0.5m - Inf. | Mount | CS - Mount | ||||
| Zoom | 2.9mm - 8.2mm | Filter Size | |||||
| Control | Aris | VIDEO Auto Iris | Dimensions | @ 33.5mm x 46.6mm x 44.3mm | |||
| Focu s | Manual | Weight | 51g | ||||
| Zoom | Manual | ||||||
| Angle of View | D | 1/3 type | 125.6” - 44.7° | 1/4 type | 88.3° - 33.4° | ||
| H | 95.0° - 35.6° | 69.0° - 26.7” | |||||
| V | 69.0° - 26.7° | 51.0° - 20.0° | |||||
| Supply Voltage | DC8.SV - DC16V | ||||||
| Current | Less than 40mA | ||||||
| Response Time | Approx. 2 sec. | ||||||
| Light Weighting Method | Adjustable between Average - Peak (to be Set at Average at Factory) | ||||||
| Input Signal | Video Signal (V. or V.S.) | ||||||
| iris Accurancy | 5 °A at Video Signal Level | ||||||
| Sensitivity Adjustment | 0.5V (p- p) - 1.0V (p - p) (Video Signal) | ||||||
| Input Impedance | High Impedance | ||||||
| Operating Temperature | —10°C - +50 C | ||||||
