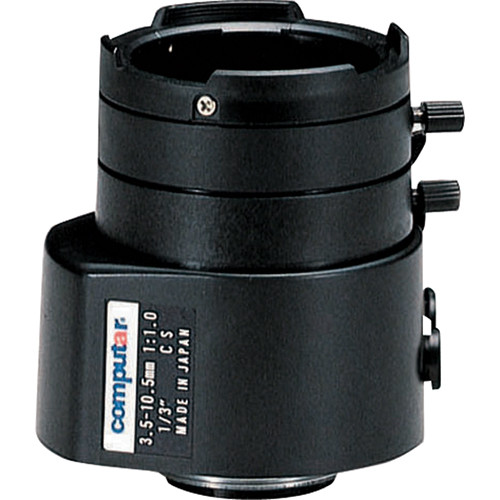

Computar - TG3Z3510AFCS - 1/3" 3.5-10.5mm f1.0 A/I
Part number:
TG3Z3510AFCS
Price:
1/3" 3.5-10.5mm f1.0 A/I.
Features:
- Designed for CS-Mount Cameras
- For 1/3" Format Sensors
- 3.5-10.5mm Focal Length
- Aperture of f/1.0 to 360C
- Focus 0.3 m to Infinity
- Manual Zoom & Focus
- Video Auto Iris
- Video Drive with Amplifier
- Aspherical Lens Surface
| Model No. | TG3Z3510AFCS | Effective Lens Aperture | Front | 18.5mm | |||
| Focal Length | 3.5mm - 10.5mm | Rear | 10.1mm | ||||
| Max. Aperture Ratio | 1:1.0 | Back Focal Length | Tele | 16.3mm | |||
| Max. Image Format | 4.8mm x 3.6mm(6mm) | Wide | 8mm | ||||
| Operation Range | Iris | F1.0 - F360C | Flange Back Length | 12.5mm | |||
| Focus | 0.3m - Inf. | Mount | CS-Mount | ||||
| Zoom | 3.5mm - 10.5mm | Filter Size | ---- | ||||
| Control | Iris | Video Auto Iris | Dimensions | 38.5mm x 48mm x 48.8mm | |||
| Focus | Manual | Weight | 70g | ||||
| Zoom | Manual | ||||||
| Object Dimension at M.O.D. | 3.5mm | 51.8cm x 34.1cm | |||||
| 10.5mm | 14.5cm x 10.8cm | ||||||
Angle of View
| D | 1/3 type | 108.4 - 34.2 | 1/4 type | 75.9 - 25.5 | ||
| H | 81.6 - 27.2 | 59.2 - 20.4 | |||||
| V | 59.2 - 20.4 | 43.8 - 15.3 | |||||
| Supply Voltage | DC8.5V - DC16V | ||||||
| Current | Less than 40mA | ||||||
| Response Time | Approx. 2 sec. | ||||||
| Light Weighting Method | Adjustable between Average - Peak (to be Set at Average at Factory) | ||||||
| Input Signal | Video Signal (V. or V.S.) | ||||||
| Iris Accurancy | 15% at Video Signal Level | ||||||
| Sensitivity Adjustment | 0.5V(p-p) - 1.0V(p-p) (Video Signal) | ||||||
| Input Impedance | High Impedance | ||||||
| Operating Temperature | 20C - 50C | ||||||
