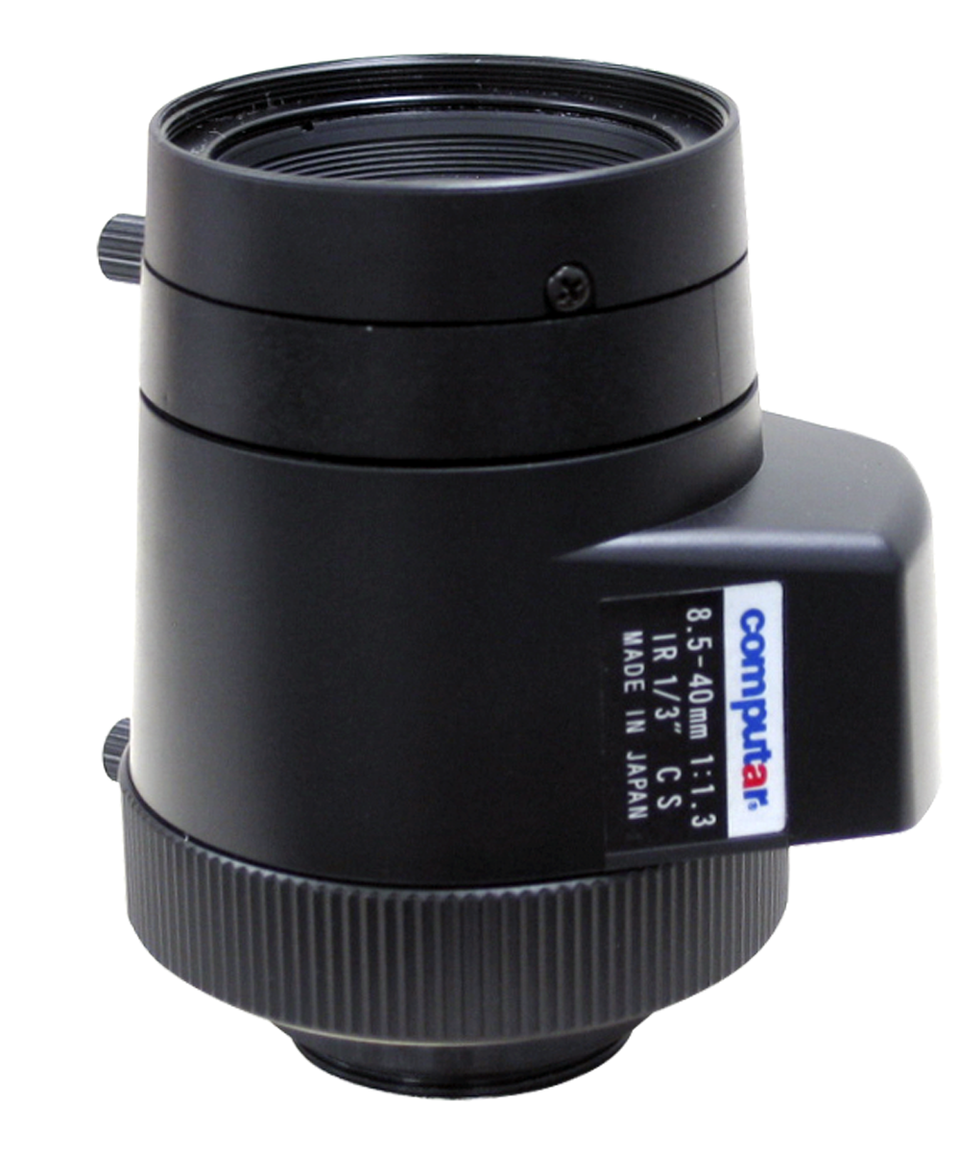

Computar - TG5Z8513FCS-IR - 1/3" 8.5-40mm f1.3 A/I, Day/Night IR
Part number:
TG5Z8513FCS-IR
Price:
1/3" 8.5-40mm f1.3 A/I, Day/Night IR
Features:
- Designed for CS-Mount Cameras
- For 1/3" Format Sensors
- 5x Zoom
- 8.5-40mm Focal Length
- Aperture f/1.3 to 360
- 0.8 m Minimum Focus (Manual)
- Manual Zoom / Auto Iris
- IR-Corrected
- Aspherical Lens Surface
| Model No. | TG5Z8513FCS-IR | Effective Lens Aperture | Front | 27.0mm | |||
| Focal Length | 8.5mm - 40mm | Rear | 9.3mm | ||||
| Max. Aperture Ratio | 1:1.3 | Back Focal Length | Tele | 10.6mm | |||
| Max. Image Format | 4.8mm x 3.6mm(6mm) | Wide | 9.0mm | ||||
| Operation Range | Iris | F1.3 - F360 | Flange Back Length | 12.5mm | |||
| Focus | 0.8m - Inf. | Mount | CS-Mount | ||||
| Zoom | 8.5mm - 40mm | Filter Size | M37.5 P0.5mm | ||||
Control
| Iris | Auto Iris | Dimensions | 41.7mm x 57.5mm x 62.9mm | |||
| Focus | Manual | Weight | 114g | ||||
| Zoom | Manual | ||||||
| Object Dimension at M.O.D. | 8.5mm | 48.1cm x 34.5cm | |||||
| 40mm | 10cm x 7.5cm | ||||||
| Angle of View | D | 1/3 type | 43.9 - 8.9 | 1/4 type | 31.2 - 6.7 | ||
| H | 33.5 - 7.1 | 24.4 - 5.3 | |||||
| V | 24.4 - 5.3 | 17.4 - 3.8 | |||||
| Coil | Drive | ohm | |||||
| Control | ohm | ||||||
| Operating Temperature | 20C - 50C | ||||||
Name
Description
Size
Downloads
File
Specification
0.4mb
