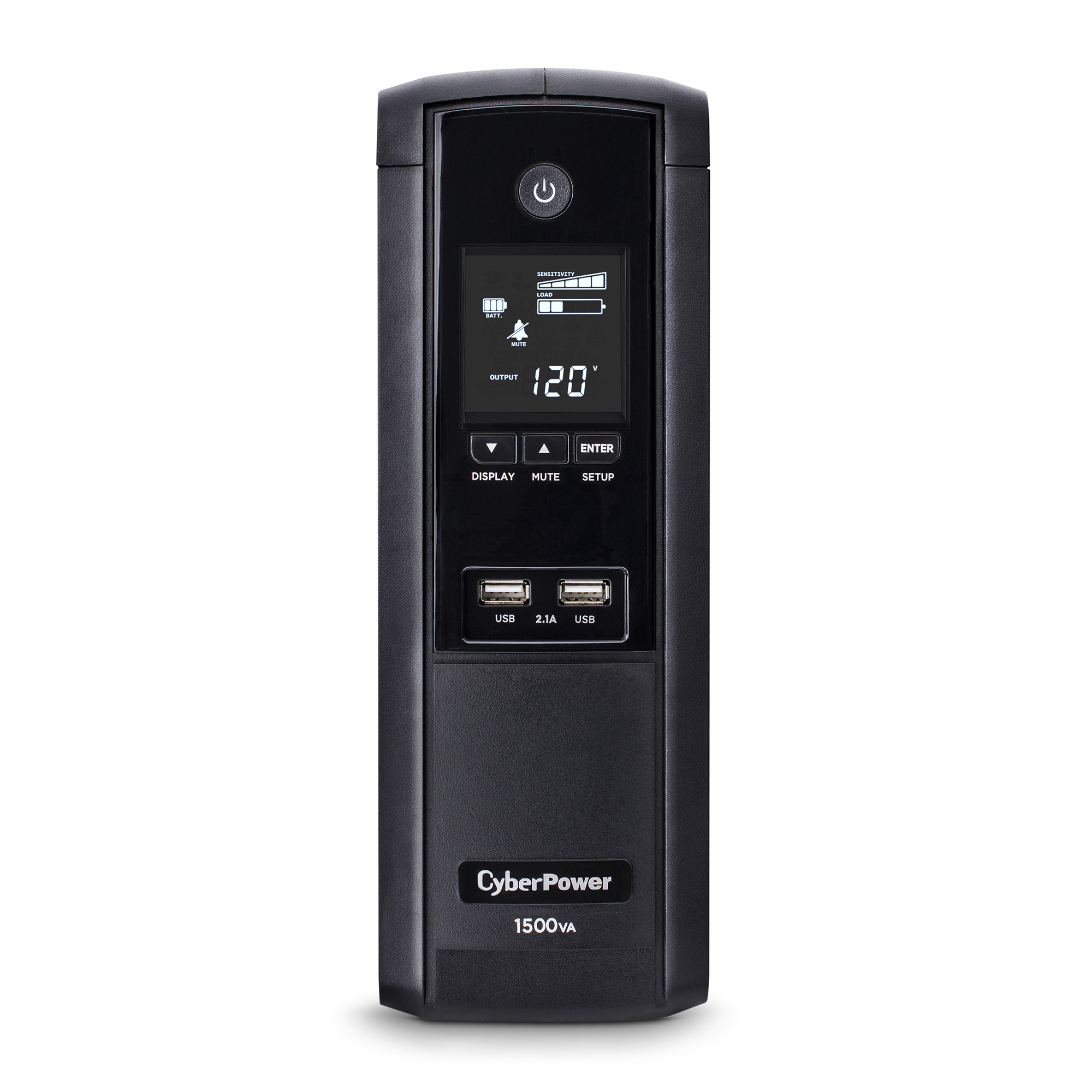

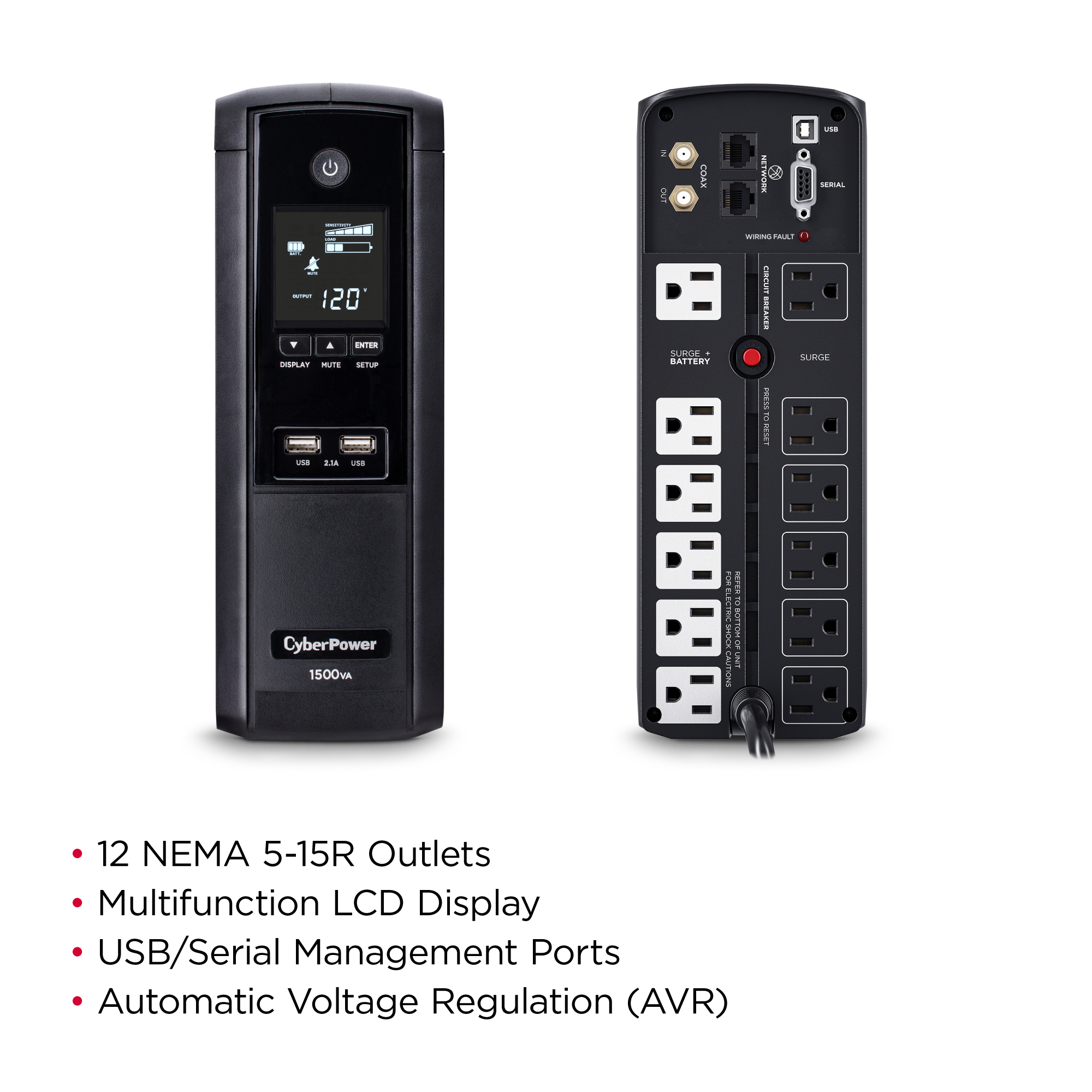

Cyber Power - BRG1500AVRLCD - UPS SYSTEMS Intelligent LCD, 1500VA/900W, Simulated Sine Wave, NEMA 5-15P, 6 ft cord
Part number:
BRG1500AVRLCD
Price:

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD Series BRG1500AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems.

The BRG1500AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. Two USB charge ports power portable devices such as mobile phones and tablets, even during a utility power failure.

The BRG1500AVRLCD comes with a five-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.



Features:



  • Battery Backup
    Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Automatic Voltage Regulation (AVR)
    AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
  • Multifunction LCD
    Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
  • USB Charge Ports
    Rapidly charge and power USB devices.
  • Data Line Protection
    Prevents power surges that travel through coaxial and Ethernet lines from causing damage to electronics.
  • Widely Spaced Outlet(s)
    The widely-spaced outlet allows you to conveniently add transformer-sized plugs without blocking other outlets.
  • Line Interactive Topology
    Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Simulated Sine Wave Output
    Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • ENERGY STAR
    This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • GreenPower UPS™ Bypass Design
    A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • Ultra Quiet Design
    Minimizes noise during operation for a quieter work environment.
  • PowerPanel® Personal Software
    Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available.
  • Five-Year Warranty
    CyberPower will repair or replace a defective UPS system (including batteries) within five years of the purchase date*. See warranty for details. *Units purchased prior to April 1st, 2016 have a 3 year warranty. Units purchased on or after April 1st, 2016 have a 5 year warranty.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GENERAL
UPS TopologyLine Interactive
Energy Star CertifiedYes
Energy SavingGreenPower UPS™ Bypass Technology
INPUT
Input Frequency Range57 - 63 Hz
Plug StyleRight Angle - 45° Offset
OUTPUT
Overload ProtectionInternal Circuitry Limiting, Circuit Breaker Protected
Watts900 W
On Battery Frequency60 Hz ± 1%
Typical Transfer Time4 ms
OUTPUT CONT.

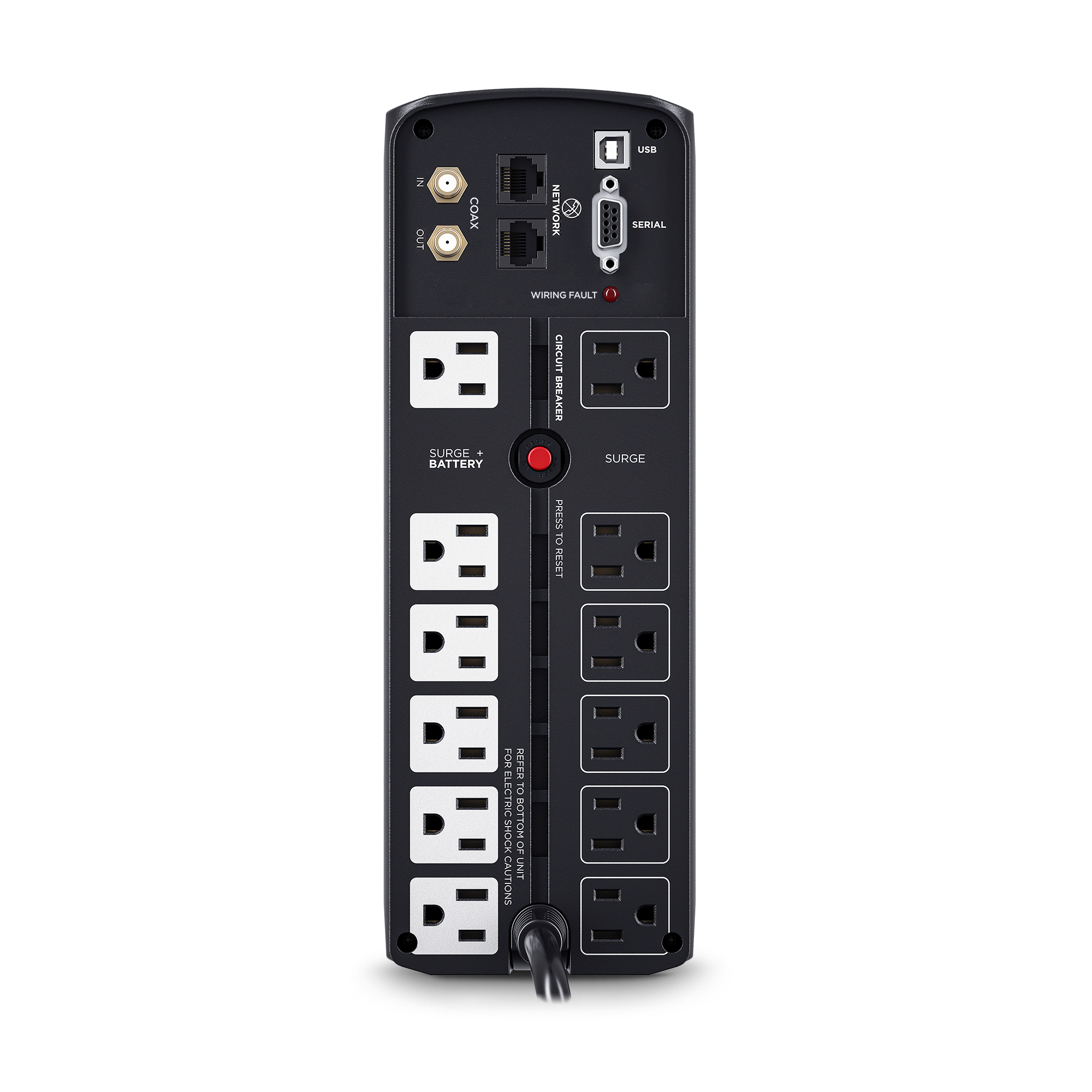

Outlets - Battery & Surge Protected6
Outlets - Surge-Only Protected6
Automatic Voltage RegulationSingle Boost, Single Buck
Output Power Factor0.6
On Battery Voltage120 VAC ± 5%
VA1500 VA
On Battery Voltage120 VAC ± 5%
On Battery WaveformSimulated Sine Wave
Outlets - Total12
BATTERY
Runtime at Half Load12 min
Battery TypeSealed Lead-Acid Battery
BATTERY CONT.
Battery Quantity2
Replacement Battery CartridgeRB1290X2
Typical Recharge Time8 Hours
Runtime at Full Load2 min
Battery Size12 V / 9 Ah
Replacement Battery Cartridge Quantity1
Hot SwappableNo
User Replaceable BatteryYes
SURGE PROTECTION & FILTERING
Network Protection RJ451-in / 1-out (10/100/1000)
Surge Suppression1500
MANAGEMENT & COMMUNICATIONS
Software (Free Download)PowerPanel® Personal
Serial Port1 Serial
Audible AlarmsBattery Mode, Low Battery, Overload, Fault
HID Compliant USB PortYes
Management CableYes
LED IndicatorsPower On, Wiring Fault
PHYSICAL

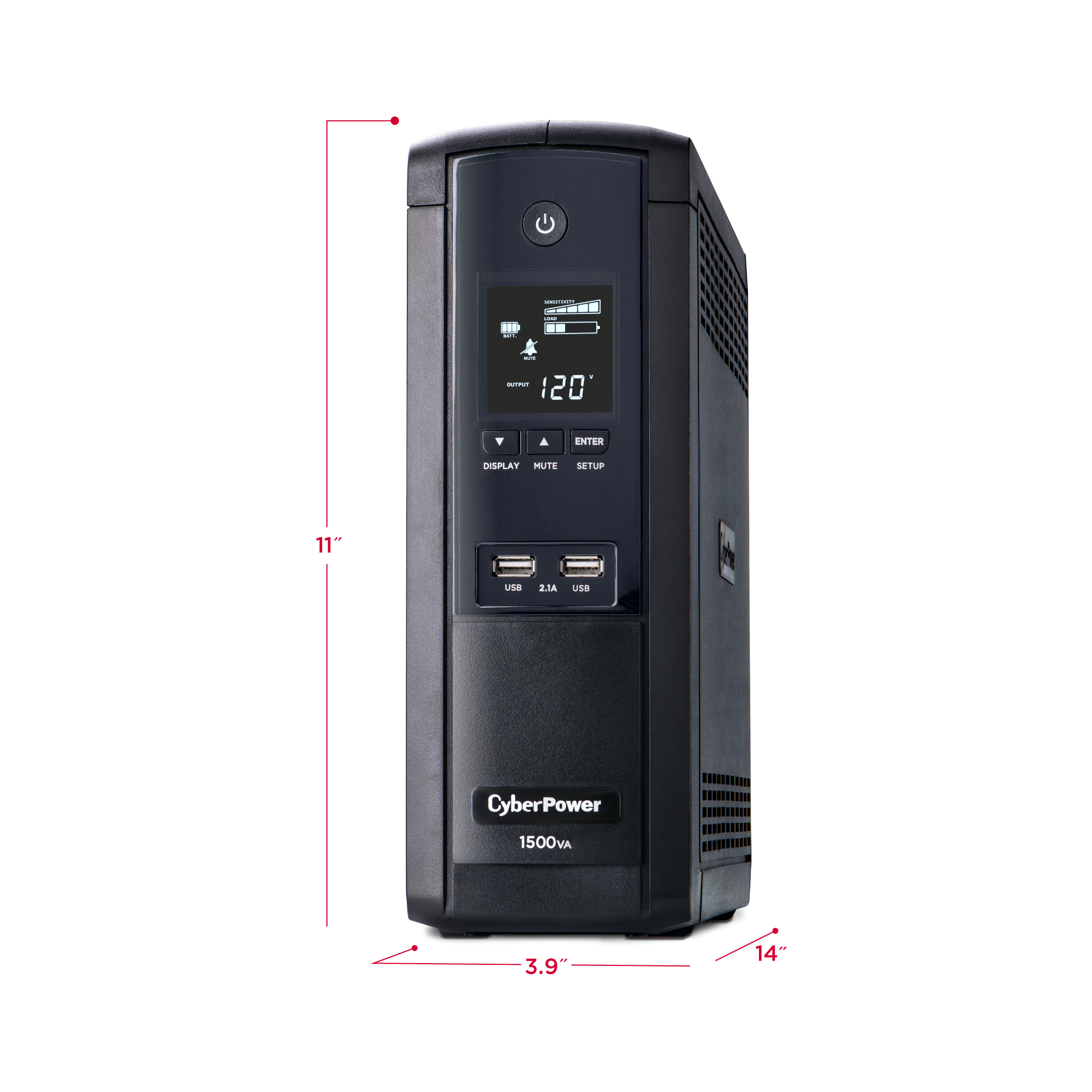

Dimensions - WxHxD (in)3.9 x 11.0 x 14.0 in
Weight (lb)25
Form FactorMini-Tower
ENVIRONMENTAL
Storage Elevation0 - 50000 ft (0 - 15239 m)
Operating Temperature32 - 104 °F (0 - 40 °C)
Storage Temperature5 - 113 °F (-15 - 45 °C)
Operating Elevation0 - 10000 ft (0 - 3048 m)
Operating Relative Humidity0 - 90 % (non-condensing)
CERTIFICATIONS
EnvironmentalRoHS Compliant
SafetyUL1778
WARRANTY
CEG Amount$500000
Product Warranty*5 Years Limited Warranty
Connected Equipment GuaranteeLifetime
