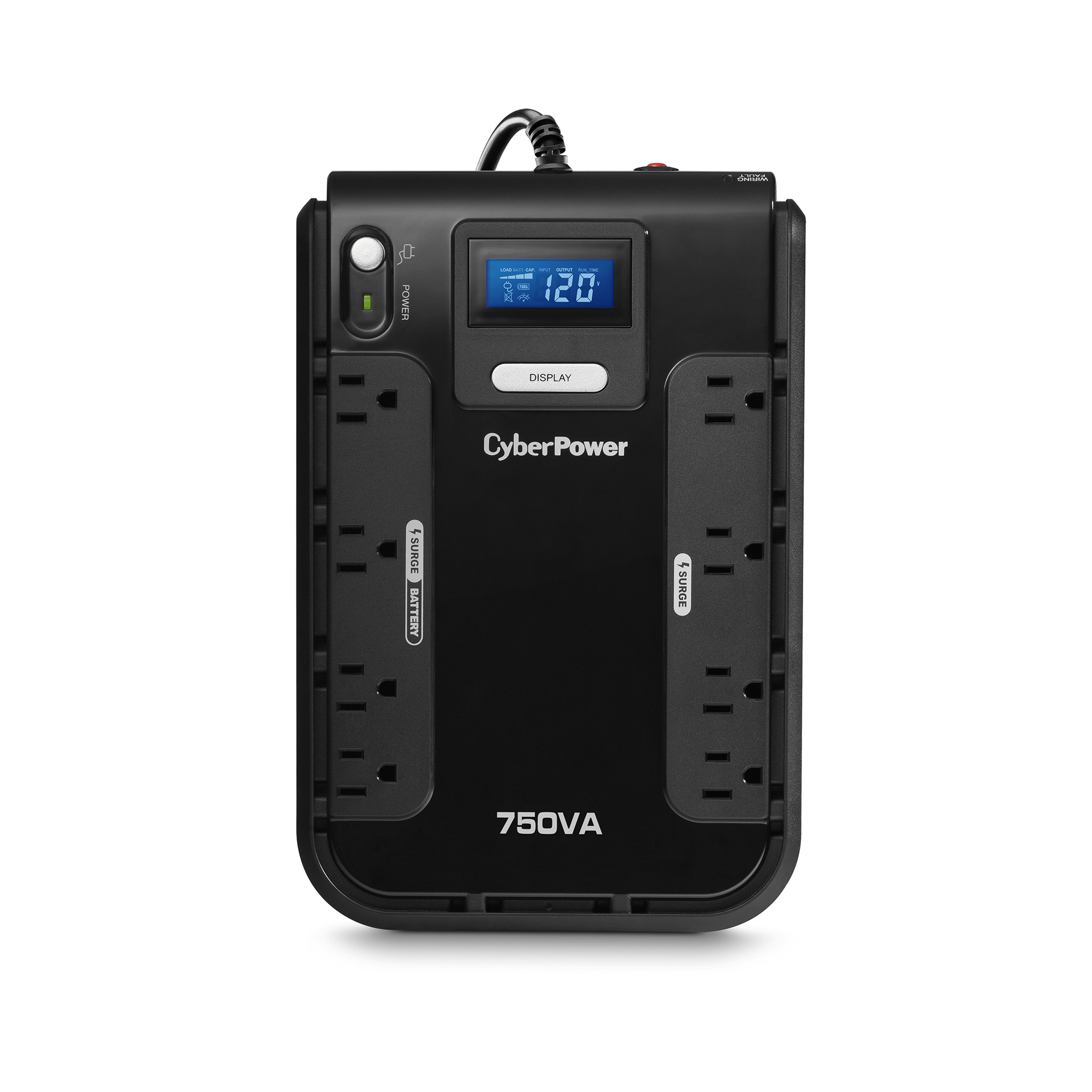

Cyber Power - CP750LCD - UPS SYSTEMS Intelligent LCD, 750VA/420W, Simulated Sine Wave, NEMA 5-15P, 5 ft cord
This product has been discontinued. Replacement: AVRG750LCD
Part number:
CP750LCD
Price:

A compact UPS with standby topology, the CyberPower Intelligent LCD CP750LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the CP750LCD offers reliable power protection and battery backup. The CP750LCD comes with a three-year warranty (including coverage of batteries) and a $150,000 Connected Equipment Guarantee.



Features:

  • Battery Backup
    Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Data Line Protection
    Prevents power surges that travel through telephone lines from causing damage to electronics.
  • Standby Topology
    Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.
  • Simulated Sine Wave Output
    Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • GreenPower UPS™ High-Efficiency Design
    Reduces power consumption, utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
  • Multifunction LCD Panel
    Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
  • Ultra Quiet Design
    Minimizes noise during operation for a quieter work environment.
  • PowerPanel® Personal Software
    Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available here.
  • Three-Year Warranty
    CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GENERAL
UPS TopologyStandby
Energy SavingGreenPower UPS™ High Efficiency
INPUT
Voltage120 VAC
Frequency Range47 – 63 Hz
Plug TypeNEMA 5-15P
INPUT - CONT.
Plug StyleRight Angle - 45° Offset
Cord Length5'
OUTPUT
VA750 VA
Watts420 W
On Battery Voltage120 VAC ± 5%
On Battery Frequency50/60 Hz ± 1%
On Battery WaveformSimulated Sine Wave
Outlet TypeNEMA 5-15R
Outlets – Total8
Outlets – Battery & Surge Protected4
Outlets – Surge-Only Protected4
Outlets – Widely Spaced2
Overload ProtectionInternal Circuitry Limiting Circuit Breaker
BATTERY
Runtime at Half Load (min)10
Runtime at Full Load (min)3
Battery TypeSealed Lead-Acid
Battery Size12V/7Ah
Battery Quantity1
Typical Recharge Time8 hours
SURGE PROTECTION & FILTERING
Surge Suppression890 Joules
Phone Protection RJ111-In, 2-Out
EMI/RFI FiltrationYes
MANAGEMENT & COMMUNICATIONS
Multifunction LCD PanelYes
HID Compliant USB PortYes
Management CableUSB Cable
LED IndicatorsPower On, Wiring Fault
Audible AlarmsOn Battery, Low Battery, Overload
SoftwarePowerPanel® Personal Edition
PHYSICAL
Form FactorCompact
Keyhole Mounting SlotsYes
Dimensions – W×H×D (in)10.4 × 6.9 × 3.1
Weight (lbs)6.7
ENVIRONMENTAL
Operating Temperature32 – 104 °F (0 – 40 °C)
Operating Humidity0 – 90% (non-condensing)
CERTIFICATIONS
SafetyUL1778, cUL CSA C22.2 No. 107.3,
FCC DOC Class B
EnvironmentalRoHS Compliant
WARRANTY
Product Warranty3 Years
Connected Equipment GuaranteeLifetime
CEG Amount$150,000
