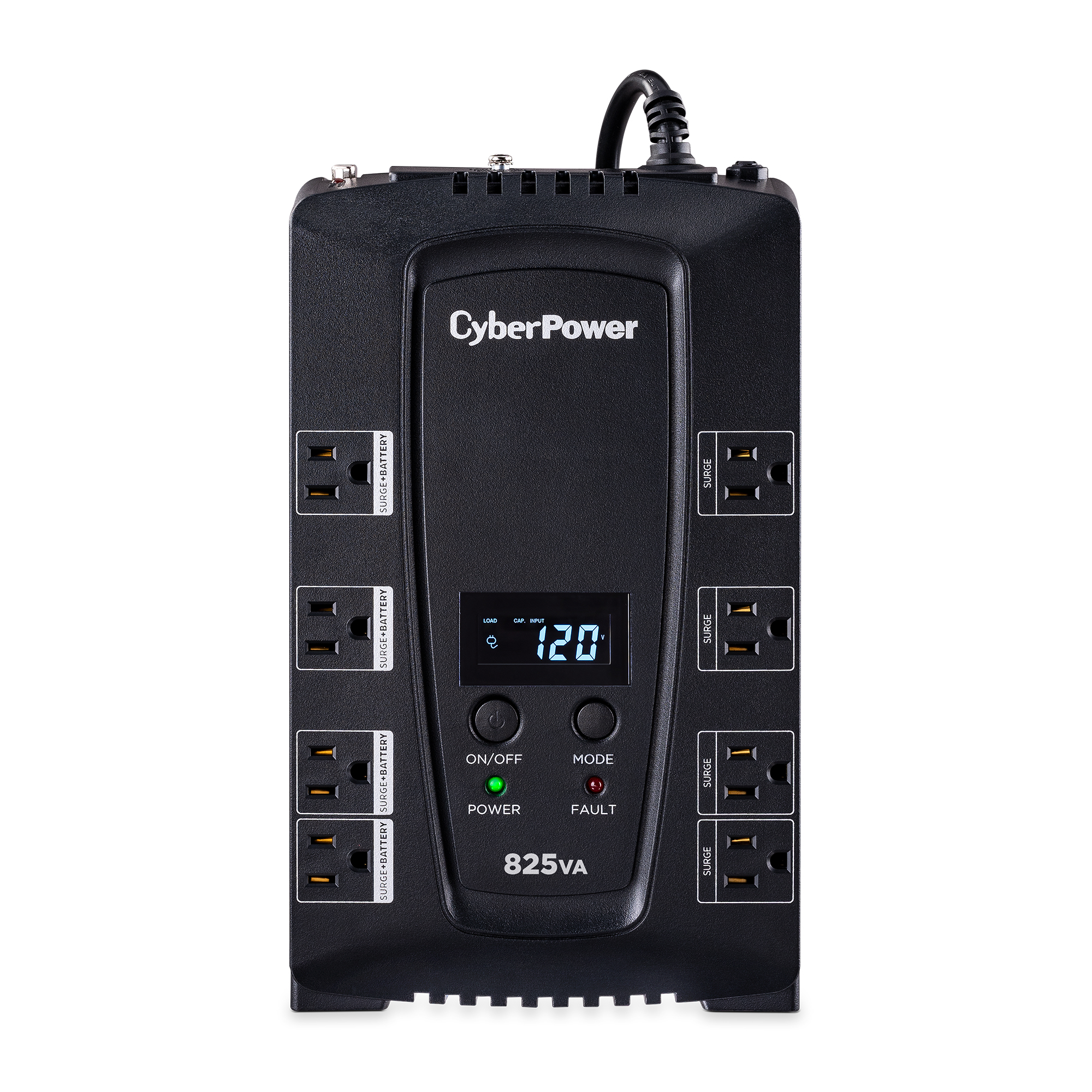

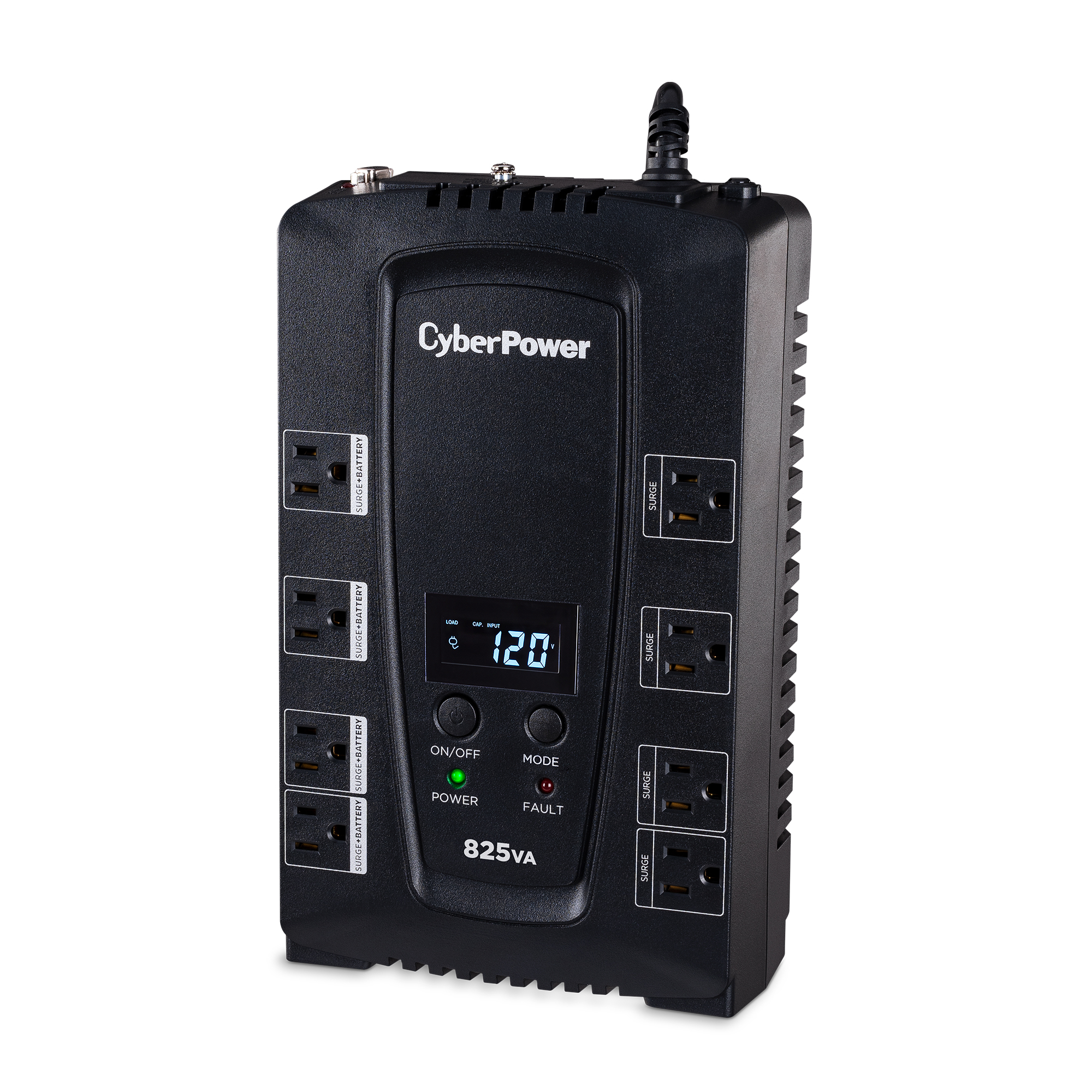

Cyber Power - CP825LCD - UPS SYSTEMS Intelligent LCD 825VA/450W, Simulated Sine Wave
Part number:
CP825LCD
Price:

A compact UPS with standby topology, the CyberPower Intelligent LCD CP825LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP825LCD delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to valuable electronics. The multifunction LCD provides real time status and alerts of potential problems. The CP825LCD comes with a three-year warranty and a $225,000 Connected Equipment Guarantee.



Features:

  • Battery Backup
    Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Simulated Sine Wave Output
    Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • Multifunction LCD Panel
    Displays immediate, detailed information about the UPS battery and power conditions, and generates alerts of potential problems before they can affect critical equipment and cause downtime.
  • PowerPanel® Personal Software
    Includes a free software download that provides a user-friendly dashboard interface for controlling and monitoring the UPS.
  • Transformer-Spaced Outlets
    Accommodates large transformer-based plugs without compromising the access of other outlets.
  • GreenPower UPS™ High-Efficiency Design
    Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
  • ENERGY STAR
    This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • Three-Year Warranty
    CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
General
UPS TopologyLine Interactive
Energy Star CertifiedYes
Energy SavingGreenPower UPS™ Bypass
Input
Frequency Range57 – 63 Hz
Plug TypeNEMA 5-15P
Plug StyleRight Angle, 45° Offset Right
Cord Length (ft)6
Output
VA825 VA
Watts450 W
Automatic Voltage RegulationYes
On Battery Voltage120 VAC ± 5%
On Battery Frequency60 Hz ± 1%
On Battery WaveformSimulated Sine Wave
Outlet TypeNEMA 5-15R
Outlets – Total8
Outlets - Battery & Surge Protected4
Outlets – Surge-Only Protected4
Outlets – Widely Spaced4
Overload ProtectionInternal Circuitry Limiting, Circuit Breaker
Transfer Time4 ms
Battery
Runtime at Half Load (min)13.5
Runtime at Full Load (min)1.2
Battery TypeSealed Lead-Acid
Battery Size12V/9Ah
Battery Quantity1
Hot-SwappableYes
User ReplaceableYes
Replacement Battery CartridgeRB1290
Replacement Battery Cartridge Quantity1
Typical Recharge Time8 hours
Surge Protection & Filtering
Surge Suppression1,030 J
EMI/RFI FiltrationYes
Management & Communications
Multifunction LCD PanelYes
LED IndicatorsPower On, Wiring Fault
Audible AlarmsOn Battery, Low Battery, Overload, Fault
HID Compliant USB PortYes
Serial PortYes
SoftwarePowerPanel® Personal
Physical
Form FactorCompact
ColorBlack
Keyhole Mounting SlotsYes
Dimensions - WxHxD (in)11 x 6.8 x 3.5
Weight (lbs)12.74
Environmental
Operating Temperature32 °F to 95 °F / 0 °C to 35 °C
Operating Relative Humidity0 – 95% (non-condensing)
Storage Temperature5 °F to 113 °F / -15 °C to 45 °C
Maximum Operating Elevation10,000 ft (3,000 m)
Maximum Storage Elevation50,000 ft (15,000 m)
Certifications
SafetyUL1778 cUL 107.3
FCC DOC Class B
EnvironmentalRoHS Compliant
Warranty
Product Warranty3 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$200,000
