Cyber Power - CSB808 - 1800 J, 125 V, NEMA 5-15P plug, 8 NEMA 5-15R, 8 ft cord, Limited lifetime warranty
Part number:
CSB808
Price:

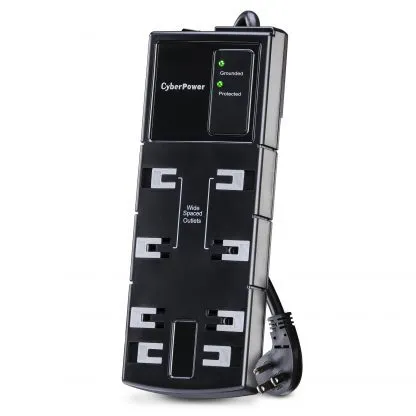

The CyberPower Essential Surge Protector CSB808 offers vital surge protection for common home and office devices such as computers and electronics. It prevents spikes in energy caused by storms and electrical power surges from reaching your electronic equipment. The CSB808 provides 1800 joules of protection, 8 outlets (4 widely spaced for transformer plugs), a power cord (8 ft.), and a right-angle plug with 45° off-set.

Features of the CSB808 include automatic shutdown, metal oxide varistor (MOV) technology, an EMI/RFI noise filter, LED status indicators, a cord management system, keyhole mounting slots, and impact-resistant casing. This surge suppressor comes with a Limited Lifetime Warranty and a Connected Equipment Guarantee.



Features:

  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Automatic Shutdown
    Protects connected electronics with the integrated circuit breaker which automatically switches off in the event of an overload that exceeds the model’s ability to suppress the signal.
  • EMI/RFI Noise Filter
    Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
  • Metal Oxide Varistor (MOV) Technology
    Allows normal current to pass through the device, while diverting any surges/spikes through the ground circuit, to safeguard connected electronics and the surge suppressor.
  • LED Indicators
    Light to indicate the model’s status: Protected and Grounded.
  • Transformer-Spaced Outlets
    Accommodate transformer-based plugs without compromising the access of other outlets.
  • Right-Angle Plug with 45° Off-set
    Enables convenient installation, even in tight environments.
  • Cord Management System
    Keeps cords neat and organized.
  • Impact-Resistant Casing
    Ensures maximum durability and prolongs the life of the model.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
  • Limited Lifetime Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
Input
Circuit Breaker15 A
Cord Length8 ft (2.4 m)
Input Plug TypeNEMA 5-15P
Maximum Input Current15A
Plug StyleRight Angle – 45° Offset
Output
Outlet Type8 – NEMA 5-15R
Outlets – Total8
Outlets – Widely Spaced4
USB Charge PortNo
Surge Protection & Filtering
Attenuation32 dB
Clamping Voltage400V (H-N, H-G, N-G)
Coax Protection RG6None
EMI/RFI Filtration150 KHz
100 MHz
Yes
Maximum Surge Current90000 A
Maximum Surge Current H-G30000 A
Maximum Surge Current H-N30000 A
Maximum Surge Current N-G30000 A
Maximum Surge Voltage6000 V
Response Time<1 Nanosecond
Surge Suppression (Joules)1800 J
Physical
ColorBlack
Cord ManagementYes
Form Factors SupportedKeyhole (Wall Mount or Under-counter Installation)
Keyhole Mounting SlotsYes
Material of ConstructionPlastic
Safety CoversYes
Dimensions
Physical Dimensions – (WxHxD) (cm)10.01 x 3.81 x 27.15 (cm)
Physical Dimensions – (WxHxD) (in)3.94 x 1.5 x 10.69 (in)
Physical Dimensions – (WxHxD) (mm)100 x 38 x 272 (mm)
Physical Weight (kg)0.43
Physical Weight (lb)0.95
Dimensions – Shipping
Shipping – Weight (kg)0.82
Shipping – Weight (lb)1.8
Shipping Dimensions – (WxHxD) (cm)3.18 x 37.47 x 15.88 (cm)
Shipping Dimensions – (WxHxD) (in)1.25 x 14.75 x 6.25 (in)
Shipping Dimensions – (WxHxD) (mm)31.75 x 374.65 x 158.75 (mm)
Certifications
EnvironmentalRoHS Compliant
SafetyUL1449 3rd Edition
Warranty
CEG Amount$250000
Connected Equipment GuaranteeLifetime
Product WarrantyLimited Lifetime Warranty
