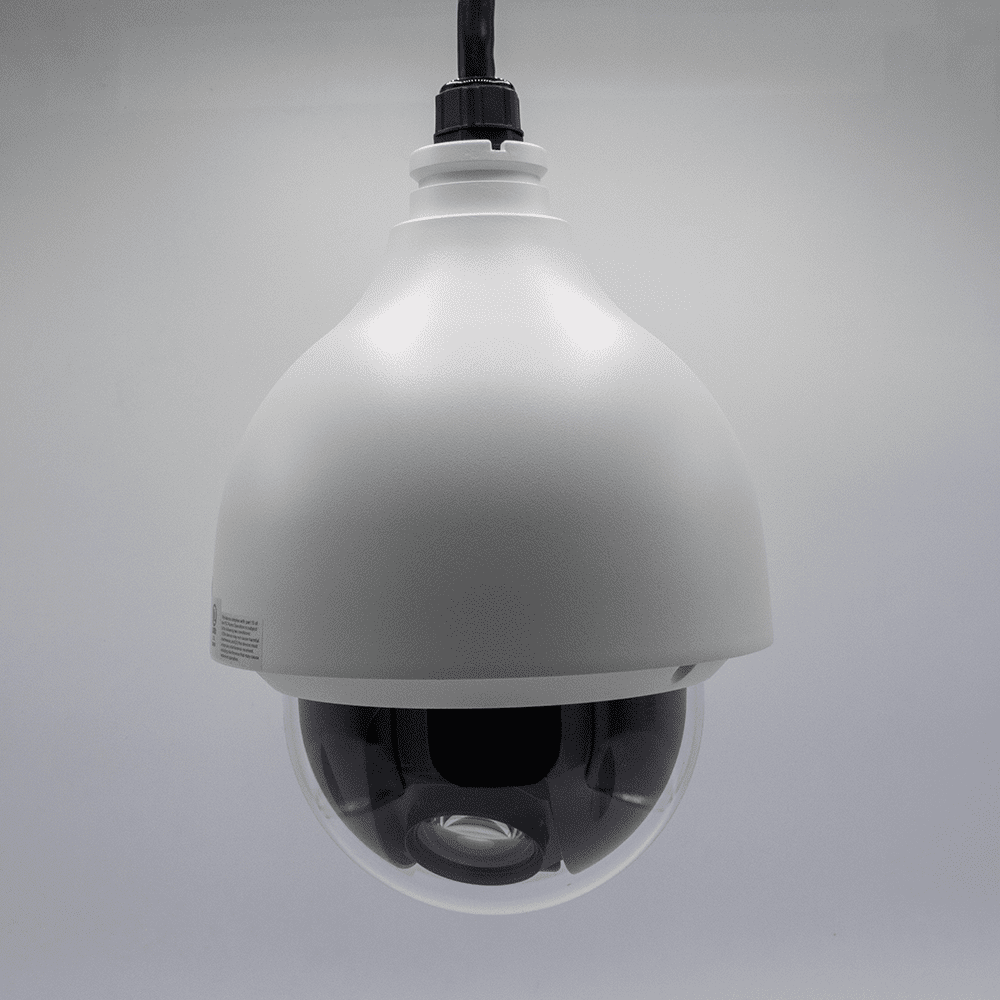

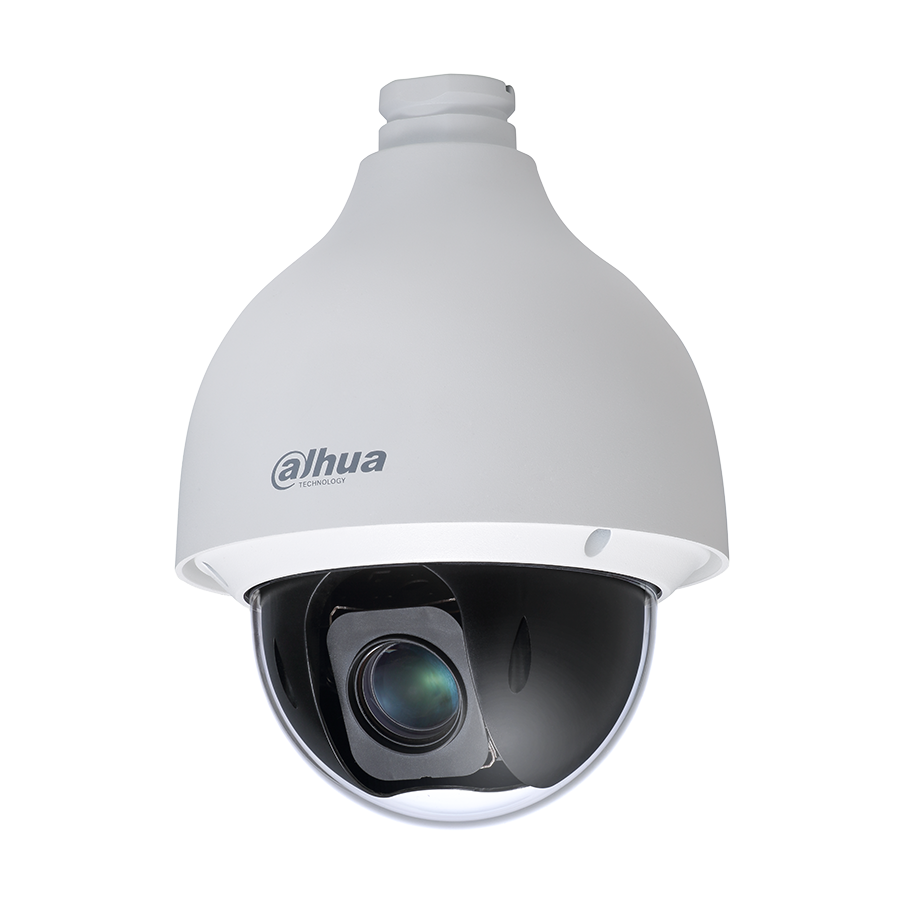

Dahua - 50432GBNR - 4MP Enhanced Starlight Network PTZ Camera (32x)
Part number:
50432GBNR
Price:
Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video security for outdoor applications. Together with infrared illumination and Enhanced Starlight Technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day and True WDR for locations with direct sunlight and glare.
Features:
- 1/2.8-in. 4MP STARVIS CMOS Sensor
- Powerful 32x Optical Zoom Lens
- AI Coding, Smart H.265+ and Smart H.264+ Dual Codec
- Enhanced Starlight Technology for Low-light Applications
- 4MP (2560 × 1440) at 30 fps
- True Wide Dynamic Range (120 dB) and True Day/Night IR Cut Filter
- Analytics+ Functions: Perimeter Protection, Face Detection, Smart Motion Detection+
- IP67 Ingress Protection, IK10 Vandal Resistance, TVS 6000 V Surge Protection
| Technical Specification | ||||||
| Camera | ||||||
| Image Sensor | 1/2.8-in. CMOS | |||||
| Effective Pixels | 2560 (H) × 1440 (V) | |||||
| RAM/ROM | 1 GB/4 GB | |||||
| Scanning System | Progressive | |||||
| Electronic Shutter Speed | 1/1 s to 1/30,000 s | |||||
| Minimum Illumination | Color | 0.005 lux at F1.6 | ||||
| B/W | 0.0005 lux at F1.6 | |||||
| Lens | ||||||
| Focal Length | 4.8 mm to 154.0 mm | |||||
| Maximum Aperature | F1.6 to F4.0 | |||||
| Angle of View | Horizontal | 55.8° to 2.3° | ||||
| Vertical | 31.9° to 1.3° | |||||
| Diagonal | 63.7° to 2.7° | |||||
| Optical Zoom | 32x | |||||
| Focus Control | Automatic, Semi-automatic, Manual | |||||
| Iris Control | Auto, Manual | |||||
| Close Focus Distance | 0.1 m to 1.5 m (0.33 ft to 4.9 ft) | |||||
| DORI1 Distance | Detect | Observe | Recognize | Identify | ||
| 3080.0 m (10105.0 ft) | 1216.6 m (3,991.5 ft) | 616.0 m (2,021.0 ft) | 308.0 m (1,010.5 ft) | |||
| PTZ | ||||||
| Pan/Tilt Range | Pan | 0° to 360° endless | ||||
| Tilt | 0° to 90°, Automatic Flip 180° | |||||
| Manual Control Speed | Pan | 0.1°/s to 350°/s | ||||
| Tilt | 0.1°/s to 250°/s | |||||
| Preset Speed | Pan | 500°/s | ||||
| Tilt | 500°/s | |||||
| Presets | 300 | |||||
| PTZ Mode | 5 Patterns, 8 Tours (Up to 32 Presets per Tour), 5 Scans | |||||
| Power Up Action | Auto restore to previous PTZ and lens status after power failure | |||||
| Idle Motion | Activate Preset/Scan/Tour/Pattern if there is no command in the specified period | |||||
| PTZ Protocol | DH-SD | |||||
| Video | ||||||
| Video Compression | AI Coding, H.264H, H.264B, Smart H.265+, H.264, H.265, MJPEG (Sub Stream), Smart H.264+ | |||||
| Streaming Capability | Three (3) Streams | |||||
| Resolution | 4MP (2560 × 1440), 3MP (2048 × 1536), 2304 × 1296, 1080p (1920 × 1080), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) | |||||
| Frame Rate | Main Stream | 4MP/3MP/1080p/1.3MP/720p at 1 to 30 fps | ||||
| Sub Stream 1 | D1/VGA/CIF at 1 to 30 fps | |||||
| Sub Stream 2 | 1080p/1.3M/720p at 1 to 30 fps | |||||
| Bit Rate Control | CBR/VBR | |||||
| Bit Rate | H.264 | 96 to 14,848 Kbps | ||||
| H.265 | 38 to 8,960 Kbps | |||||
| Day/Night | Auto (ICR), Color, B/W | |||||
| Backlight Compensation | BLC, True WDR (120 dB), HLC | |||||
| White Balance | Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Lamp | |||||
| Gain Control | Auto, Manual, Zoom Priority | |||||
| Noise Reduction | 2D, 3D | |||||
| Advanced Features | Region of Interest (RoI), Electronic Image Stabilization (EIS), Electronic Defog, Motion Detection | |||||
| Digital Zoom | 16x | |||||
| Image Rotation | 180° | |||||
| Privacy Masking | Up to 24 areas (8 areas allowed per view) | |
| S/N Ratio | ≥ 55 dB | |
| Audio | ||
| Compression | PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, G729, G723, AAC | |
| Network | ||
| Ethernet | One (1) RJ-45 Port (10/100 Base-T) | |
| Protocol | FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP | |
| Interoperability | CGI, SDK, ONVIF (Profile S, G, T), P2P | |
| Streaming Method | Unicast/Multicast | |
| Maximum User Access | 20 Users (Total Bandwidth 64 Mbps) | |
| Edge Storage | Micro SD Slot (Max. 512 GB), FTP/SFTP, NAS | |
| Browser | Safari (iOS 10 or Later), Microsoft Edge, Google Chrome 41 or Later, Firefox 50 or Later | |
| Management Software | DSS Pro, DMSS | |
| Mobile Client | iOS, Android | |
| Certifications | ||
| CE | EN55032, EN55024, EN50130-4 | |
| FCC | 47 CFR FCC Part15, Subpart B, ANSI C63.4 | |
| UL | UL62368-1 + CAN/CSA C22.2, No. 62368-1 | |
| Interface | ||
| Audio | Input | One (1) Channel |
| Output | One (1) Channel | |
| Alarm | Input | Two (2) Channels |
| Output | One (1) Channel | |
| Alarm Linkage | Capture, Recording, Send Email, Preset, Tour, Pattern, Alarm Digital Input | |
| Alarm Event | Motion/Tampering Detection, Audio Detection, Network Disconnection Detection, IP Conflict Detection, Memory Card State Detection, Memory Space Detection | |
| Electrical | ||

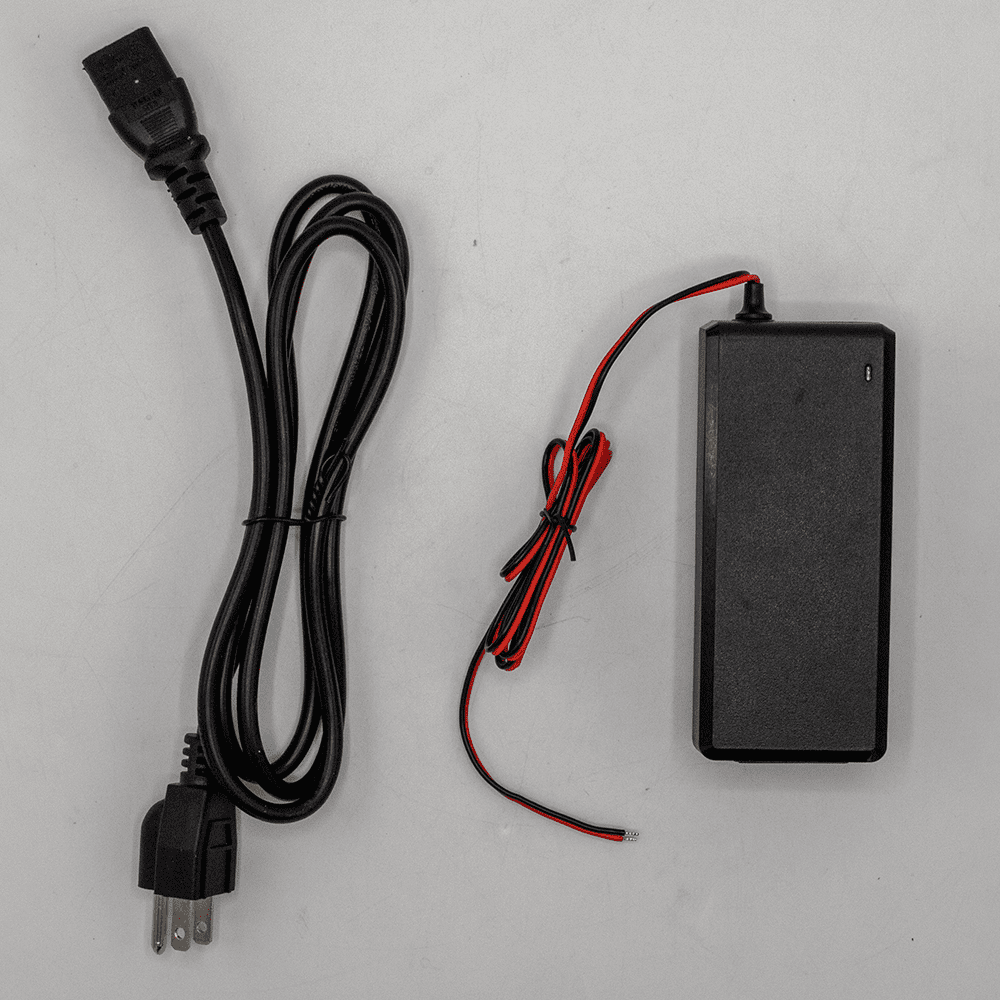

| Power Supply | 24 VDC, 2.5 A ± 25%, PoE+ (802.3at) | |
| Power Consumption | Basic | 13 W |
| Maximum | 16 W | |
| Environmental | ||
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F), ≤ 95% RH | |
| Ingress Protection | IP67 | |
| Vandal Resistance | IK10 | |
| Surge Protection | TVS 6000 V | |
| Construction | ||
| Product Dimensions | 186 mm × 253 mm (7.32 in. × 9.96 in.) | |
| Net Weight | 2.5 kg (5.51 lb) | |
| Gross Weight | 4.5 kg (9.92 lb) | |
| Analytics+ Functions | ||
| Face Detection | • Detects and captures a snapshot of a human face in a defined area within a scene. | |
| Smart Motion Detection+ | • Differentiates between and classifies human and vehicle objects. • Filters false alarms due to leaves, lights, animals, and other inconsequential objects. • Extracts human or vehicle objects from recorded video for quick target search and retrieval. | |
| Perimeter Protection | • Detects human violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter. • Monitors a combination of detection methods. | |
| Predictive Focus Algorithm (PFA) Technology | • Uses statistical analysis to stabilize the scene to preserve clarity when zooming • Performs real-time analysis and adjustment of subject distance for a rapid and stable transition from different subject distances . |
| Intelligent Video System (IVS) Functions | |
| IVS triggers an alarm and takes a defined action for the following events: | |
| Standard Features | Tampering with the camera. Error writing to an onboard Micro SD card. Error sending or receiving data over the network. Unauthorized access to the camera. |
| Premium Features | |
| Tripwire | A target crosses a user-defined line. |
| Intrusion | A target enters or exits a defined perimeter. |
| Abandoned/Missing Object | A target leaves an object in designated area, or a target removes an object from the same designated area. |
| Advanced Features | |
| Loitering Detection | Target is in motion inside a defined area longer than a specified amount of time. |
| Fast Moving | Target exceeds a set speed when exiting a defined area. |
| Parking Detection | Vehicle remains in a defined area without motion for a set period of time. |
| Crowd Gathering | Specified number of people remain inside a defined area for a set time. |
| Human/Vehicle Classification | Detects human or vehicle violations using Tripwire or Intrusion detection methods. |
| Auto-tracking | Controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. |
