59230UNI - EOL
Part number:
59230UNI
Price:

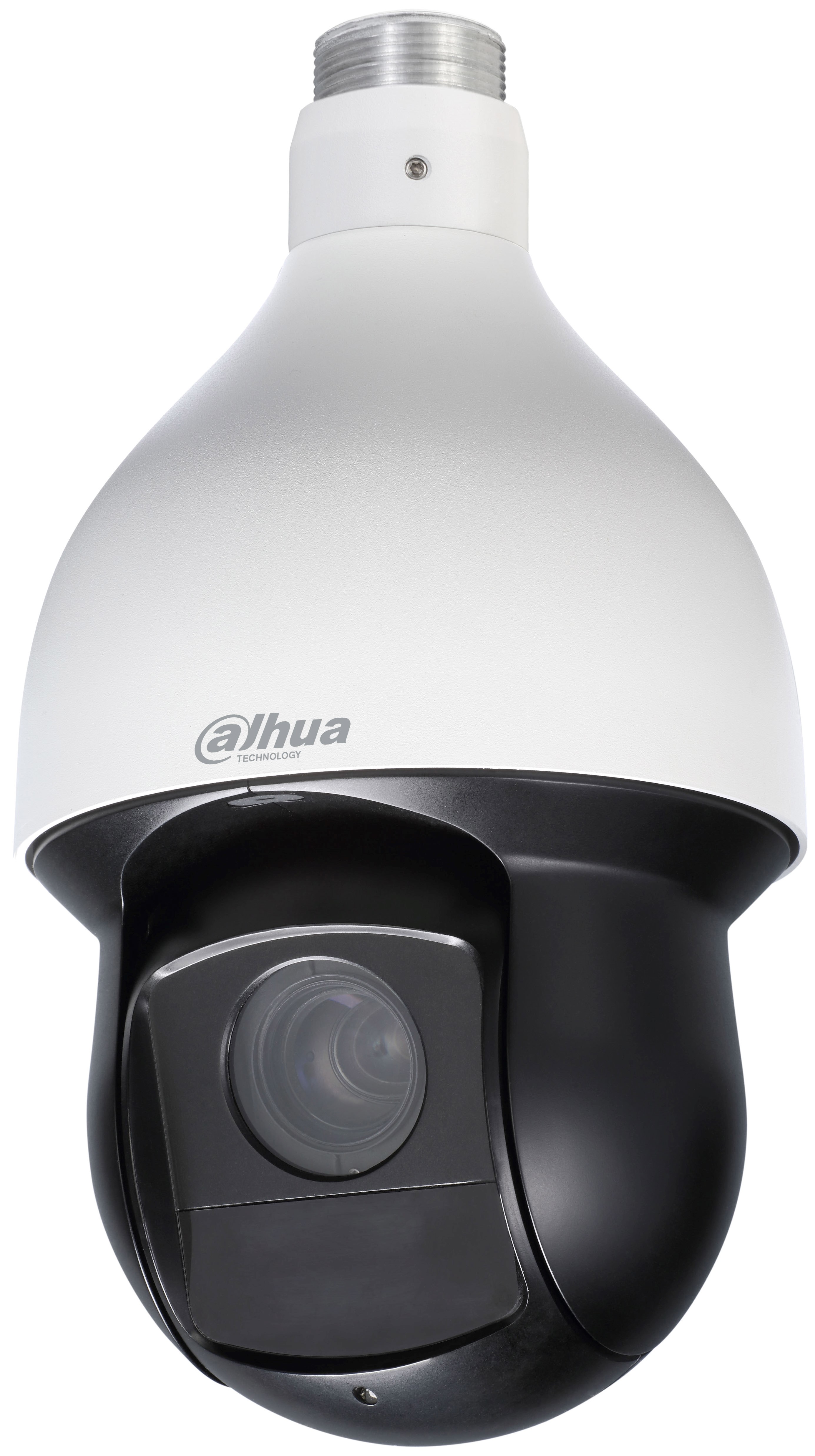

The 2MP PTZ camera features a 1/2.8-in. CMOS imager with a 30x optical zoom lens for capturing mid to long-distance video surveillance. The PTZ features Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. As a result, high quality video is maintained without straining the network.

Thanks to the camera’s true day/night IR cut filter and True WDR for applications with direct sunlight or glare, images are crisp and clear in both day or nighttime applications.

For a more efficient surveillance system, the camera features onboard analytics (IVS) so that violations to user-set rules can be quickly identified.



Features:



  • 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
  • Powerful 30x Optical Zoom
  • Starlight Technology for Ultra-low Light Sensitivity
  • Triple-stream Encoding
  • Smart H.265+ and H.264 Dual Codec
  • 1080p at 60 fps or 720p at 30/60 fps Maximum Resolution
  • Intelligent Video System (IVS) Analytics with Auto-tracking
  • Maximum IR Distance up to 150 m (492 ft)
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • IP66 Ingress Protection
  • Designed for Extreme Temperature Environments

Camera

Image Sensor1/2.8-in. STARVIS™ CMOS Sensor
Effective Pixels1920(H) x 1080(V), 2MP
RAM/ROM512 MB / 128 MB
Scanning SystemProgressive
Electronic Shutter Speed1/1 s to 1/30,000 s
Minimum IlluminationColor: 0.005 lux at F1.6
B/W: 0.0005 lux at F1.6
S/N RatioMore than 55 dB

Lens

Focal Length4.5 mm to 135.0 mm
Max. ApertureF1.6 to F4.4
Angle of ViewHorizontal: 67.8° to 2.4°
Optical Zoom30x
Focus ControlAuto, Manual
Close Focus Distance100 mm to 1000 mm

Video

CompressionSmart H.265+, H.265, Smart H.264+, H.264
Streaming CapabilityThree (3) Streams
Resolution1080p (1920 x 1080), 1.3 MP (1280 x 960),
720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
Frame RateMain Stream: 1080p, 1.3 MP, or 720p at 60 fps
Sub Stream 1: D1 or CIF at 30 fps
Sub Stream 2: 1080p, 1.3 MP, 720p, D1, or CIF at 30 fps
Bit Rate ControlCBR, VBR
Bit RateH.265/H.264: 448 K to 8192 Kbps
Day/NightAuto (ICR), Color, B/W
Backlight CompensationBLC, HLC, True WDR (120 dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto, Manual
Noise ReductionUltra DNR (2D/3D)
Advanced FeaturesMotion Detection, Region of Interest, Electronic Image Stabilization (EIS), Defog
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas

PTZ

Pan/Tilt RangePan: 0° to 360° endless
Tilt: –15° to 90°
Auto Flip 180°
Manual Control SpeedPan: 0.1° to 300° /s
Tilt: 0.1° to 200° /s
Preset SpeedPan: 400° /s
Tilt: 300° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented Focal Length, Speed Adaptation
Power up ActionAuto restore to previous PTZ and lens status after
power failure
Idle MotionActivate Preset, Scan, Tour, Pattern if there is no
command in the specified period
ProtocolDH-SD

Network

EthernetRJ-45 (10 Base-T/100 Base-TX)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge StorageNetwork Attached Storage (NAS) Local PC for instant recording Micro SD card, up to 128 GB
Web ViewerIE 10, Firefox, Safari
Management SoftwareSmart PSS, DSS
Smart PhoneIOS, Android, Windows
