DH-HAC-HDBW2241FN-M 2.8mm - EOL
This product has been discontinued.
Part number:
DH-HAC-HDBW2241FN-M 2.8mm
Price:

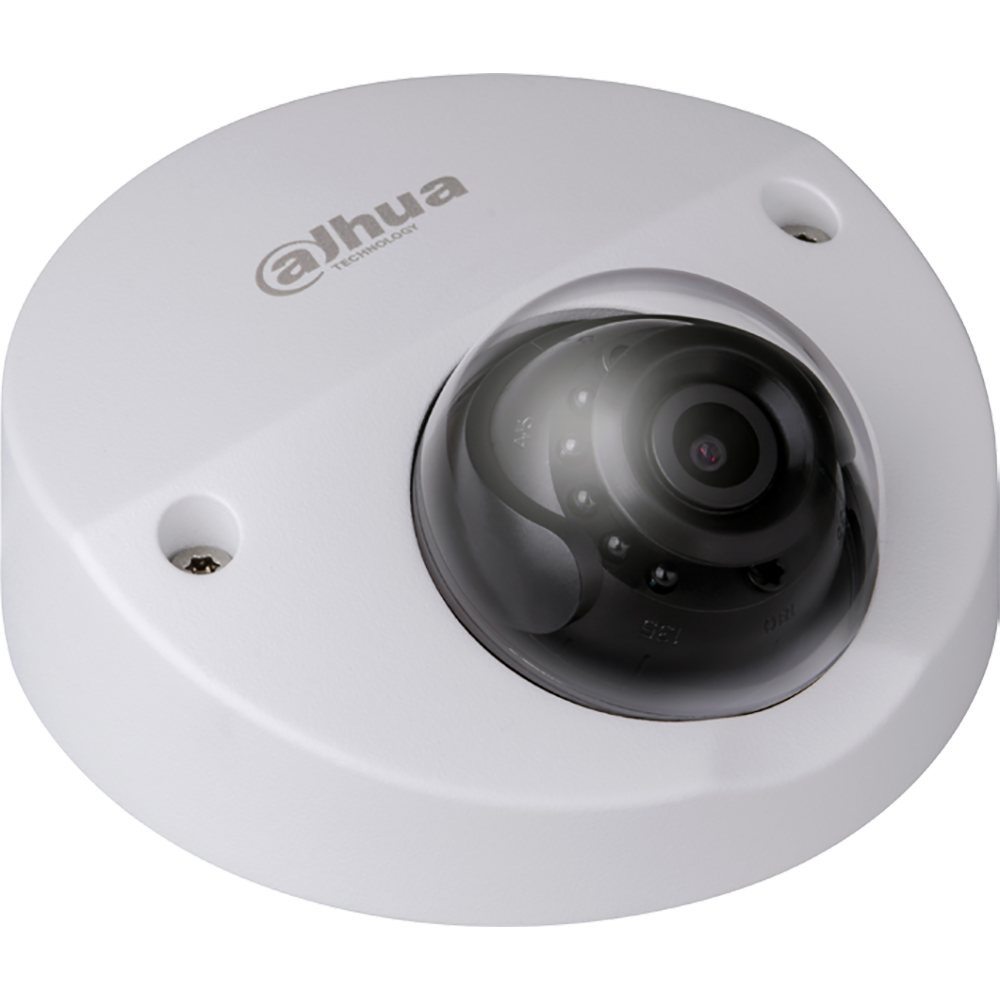

Dahua Mobile Solutions offers a durable mobile video surveillance solution that provides reliable security for transit agencies. The Mobile Solution cameras operate across different transportation networks. The fixed dome camera provides Full HD 1080p image quality in real-time.The camera features Smart IR technology to deliver clear images in near total darkness and is suitable for interior or exterior applications.



Features :

  • 1/2.8-in Progressive-scan CMOS Sensor
  • 1080p at 30 fps Maximum Resolution

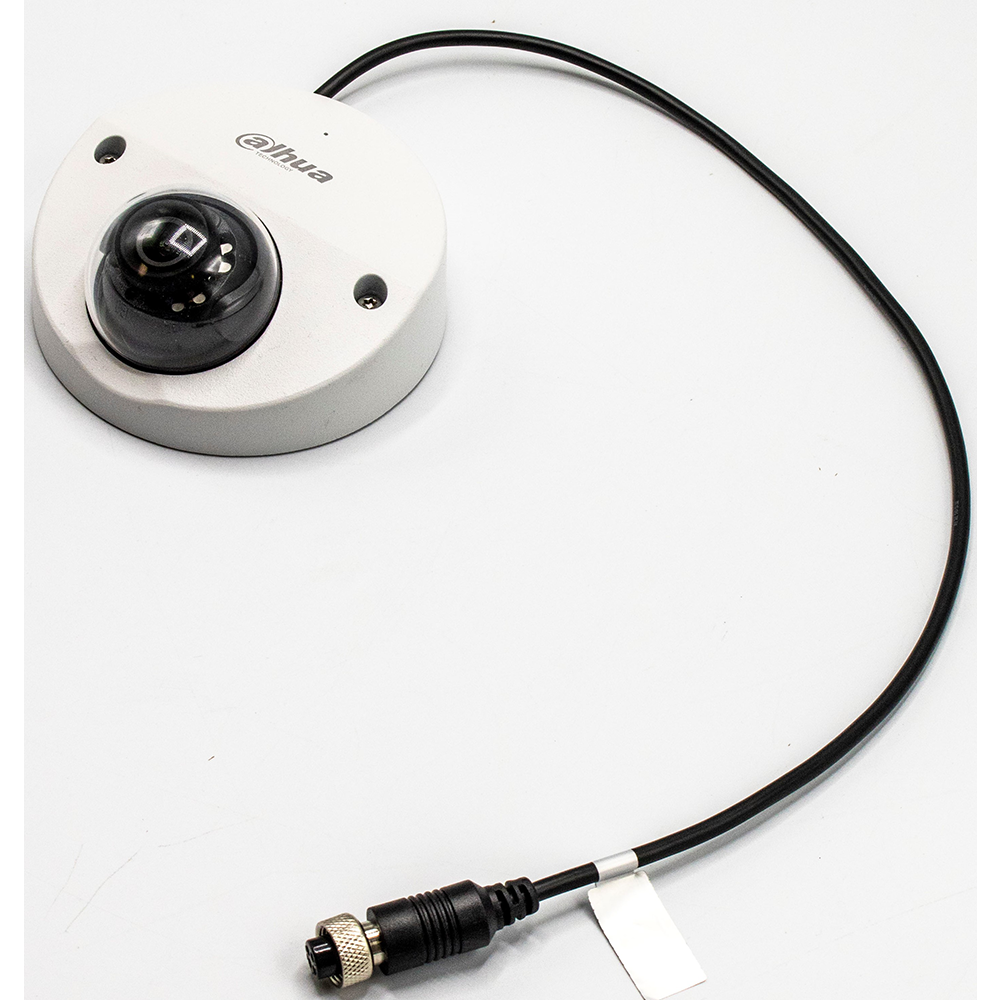

  • M12 A-coded Connector for HDCVI Output
  • 2.8 mm Fixed Lens Options
  • True Wide Dynamic Range (120 dB)
  • Starlight Technology for Low-light Applications
  • Audio Input Plus a Built-in Microphone
  • Maximum IR Distance 20 m (66 ft) with Smart IR
  • IP67 and IP6K9K Ingress Protection and IK10 Vandal Resistance
  • 5-year Warranty (for products sold through an authorized Dahua dealer)
Camera
Image Sensor 1/2.8-in. CMOS
Effective Pixels 1920(H) x 1080(V), 2 MP
Scanning System Progressive
Electronic Shutter Speed 1/3 s to 1/100,000 s
Minimum Illumination 0.004 lux at F1.6, 30 IRE
0 lux with IR on
S/N Ratio More than 65 dB
IR Distance Up to 20 m (65.62 ft)
IR On/Off Control Auto, Manual
IR LEDs Eight (8)
Lens
Lens Type Fixed Lens / Fixed Iris
Mount Type Board-in
Focal Length 2.8 mm or 3.6 mm
Max Aperture F1.6
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Quick Installation Guide
0.8mb
