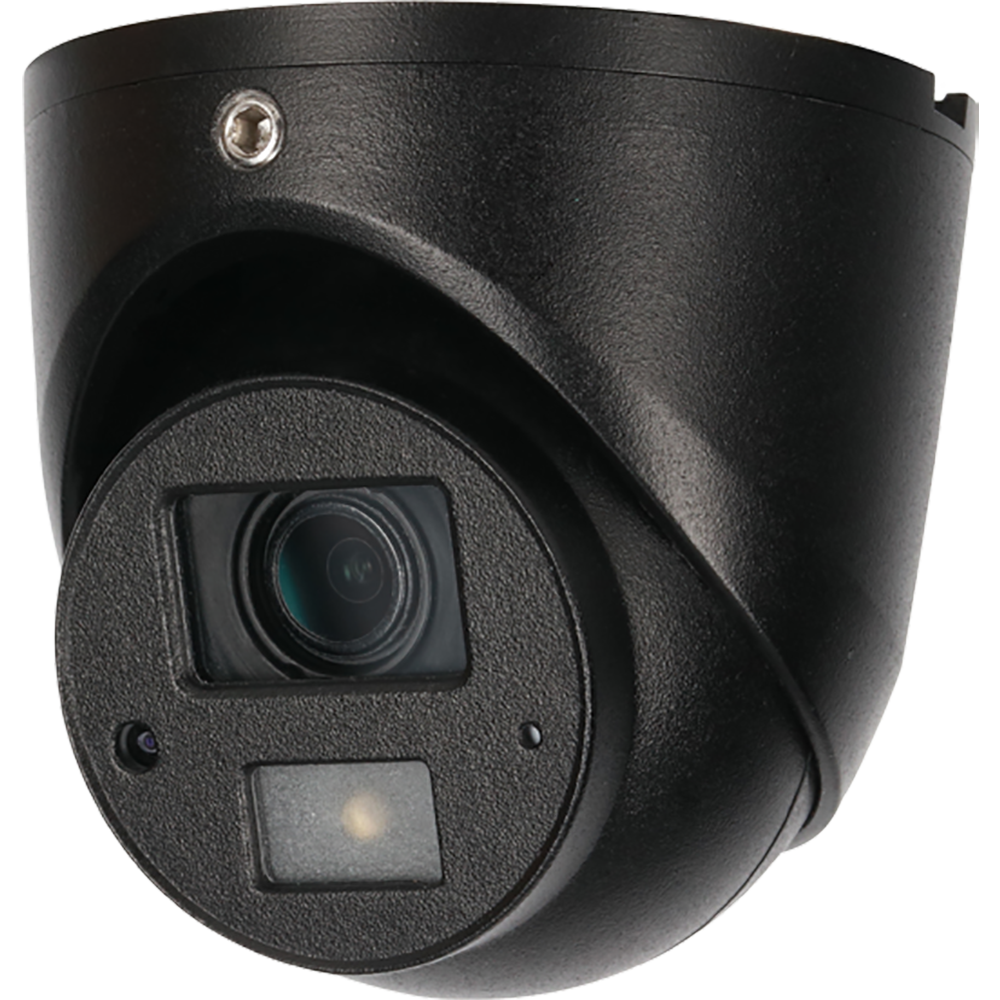

Dahua - DH-HAC-HDW1220GN-M 3.6mm - 2MP HDCVI Fixed Eyeball Camera
Part number:
DH-HAC-HDW1220GN-M 3.6mm
Price:
Dahua Mobile Solutions offers a durable mobile video surveillance solution that provides reliable security for transit agencies. The Mobile Solution cameras operate across different transportation networks. The fixed dome camera provides Full HD 1080p image quality in real-time. The camera features Smart IR technology to deliver clear images in near total darkness and is suitable for interior or exterior applications.
Features:
- 1/2.9-in. Progressive-scan CMOS Sensor
- Maximum 1080p at 30 fps Resolution
- Aviation Connector for HDCVI Output
- 3.6 mm or 6 mm Fixed Lens Options
- Built-in Microphone
- Maximum IR Distance 20 m (66 ft) with Smart IR
- IP67 Ingress Protection and Shock-proof
- 5-year Warranty (for products sold through an authorized Dahua dealer)
| Camera | |
| Image Sensor | 1/2.9-in. CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2.0 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/30 s to 1/100000 s |
| Minimum Illumination | 0.02 Lux at F2.0 0 Lux (with IR on) |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 20 m (65.62 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | One (1) |
| Lens | |
| Lens Type | Fixed Lens / Fixed Iris |
| Mount Type | Board-in |
| Focal Length | 3.6 mm or 6.0 mm |
| Max Aperture | F2.0 |
| Angle of View, Horizontal | 3.6 mm Lens: 82.8° 6 mm Lens: 51.2° |
| Close Focus Distance | 3.6 mm: 800 mm (31.50 in.) 6 mm: 1900 mm (74.80 in.) |
