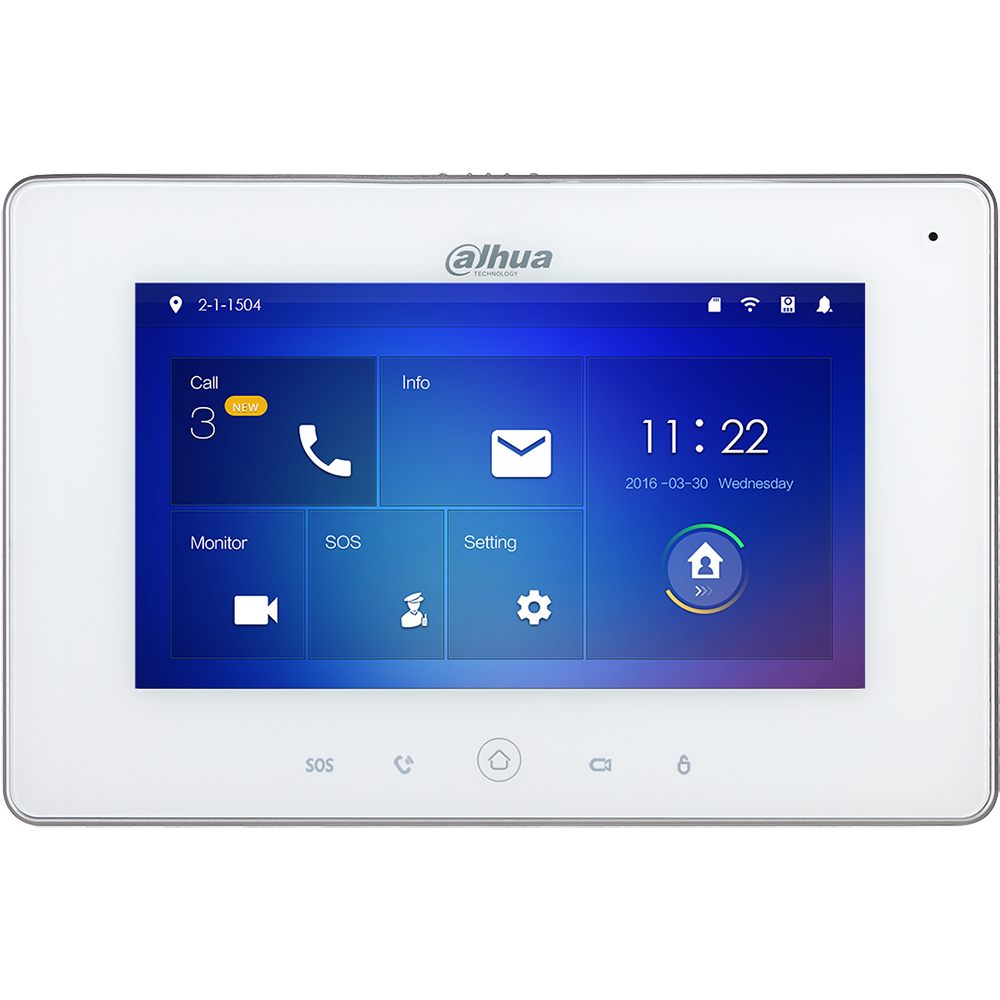

DHI-VTH5221DW-S - EOL
This product has been discontinued.
Part number:
DHI-VTH5221DW-S
Price:

The DHI-VTH5221-S Series indoor monitors allow tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor or remotely using the iDMSS or gDMSS app. The DHI-VTH5221 Series indoor monitors are used as part of a video intercom solution with compatible outdoor stations.



Features:

  • 7-inch Capacitive Touch Screen, 1024 x 600 Resolution
  • Simplified Connection and Setup
  • Supports Alarm Integration with 3rd Party Intrusion Devices
  • Monitor up to 32 IP Cameras
  • Integrated Micro SD Card Slot, maximum 32 GB
  • Perform Call Session Recordings and Take Snapshots of Live Video (requires SD card)
  • WiFi-enabled and PoE Power Supply
  • Setup and Activate up to Six (6) Alarm Inputs and One (1) Alarm Output
  • Surface-mounted

System

Main Processor Embedded Micro Processor
Operating System Embedded Linux

Display

Viewing Area 7-in. TFT, Capacitive
Resolution 1024 x 600 (WVGA)
Input Touchscreen Display

Interface

Audio Input: Omnidirectional Microphone
Output: Built-in Speaker
Two-way Talk
Audio Compression G.711
Wired Zones Six (6) On-board Zones
Wireless Zones Eight (8)
Alarm Out One (1) Channel
RS485 One (1) Port
Memory Micro SD Slot, 32 GB maximum
Name
Description
Size
Downloads
File
Datasheet
0.9mb
File
Quick Start Guide
1.5mb
