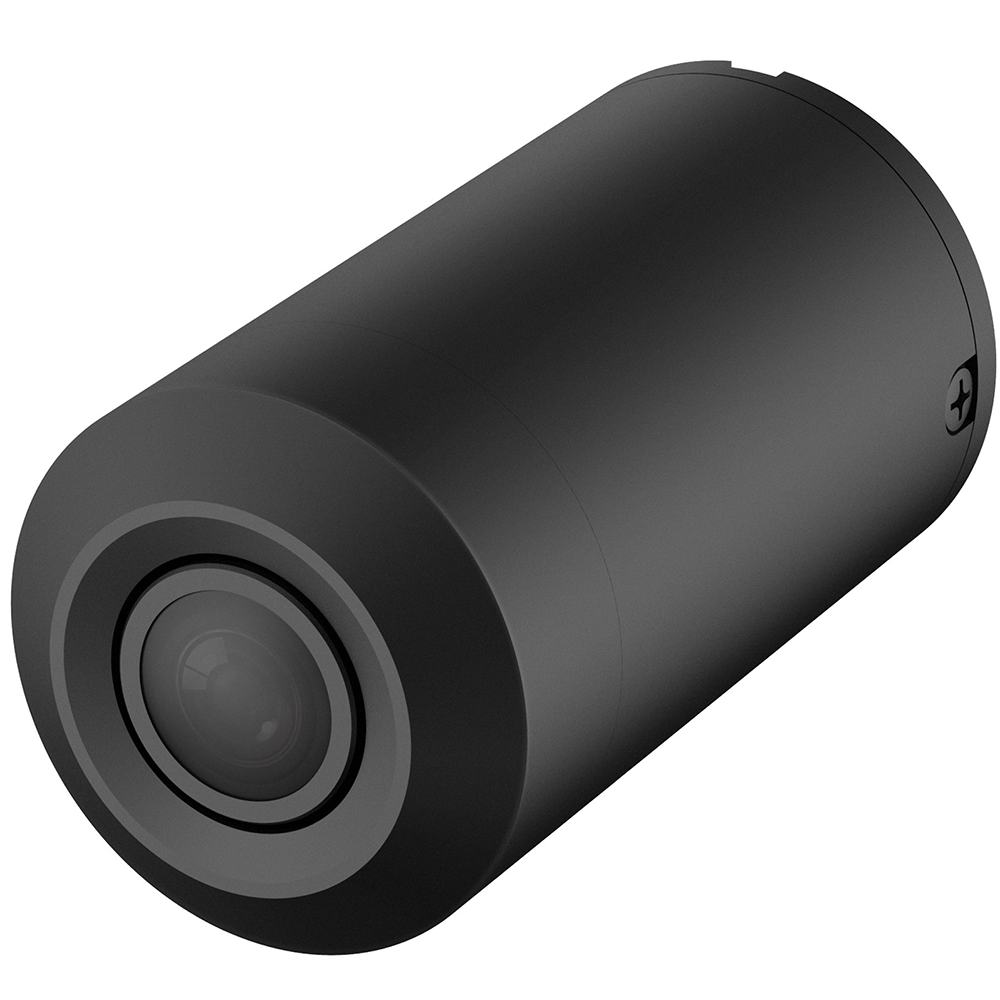

Dahua - IPC-HUM8431-L3 - 4MP Covert Network Pinhole Camera System
Part number:
IPC-HUM8431-L3
Price:
The Dahua IPC-HUM8431-L3 is the camera/lens unit for the Network Pinhole Camera system. This camera features a 4 MP progressive-scan sensor and 2.8 mm fixed lens. The IPC-HUM8431-L3 offers clear images in difficult lighting conditions thanks to its light sensitivity and True Wide Dynamic Range. This camera in conjunction with the DH-IPC-HUM8431N-E1 processing unit delivers a covert camera system suitable for banks, offices, and anywhere that discrete video surveillance is required.
Features:
- Camera/Lens Unit for DH-IPC-HUM8431N-E1 Covert Network Pinhole Processing Unit
- 1/2.7-in. 4 MP Progressive-scan CMOS Sensor
- 2.8 mm Fixed Lens
- True Wide Dynamic Range (120 dB)
- Electronic Day/Night Filter
- 8 m (26.25 ft) Cable
- IP67 Ingress Protection
- Requires DH-IPC-HUM8431N-E1 Covert Network Pinhole Processing Unit
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Camera
| Image Sensor | 1/2.7-in. 4 MP Progressive-scan CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100000 s |
| Minimum Illumination | Color: 0.006 lux at F1.8 (1/3 s, 30 IRE) Color: 0.04 lux at F1.8 (1/30 s, 30 IRE) B/W: 0.003 lux at F1.8 (1/3 s, 30 IRE) B/W: 0.02 lux at F1.8 (1/30 s, 30 IRE) |
Lens
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.8 |
| Angle of View | Horizontal 109° Vertical 60° |
| Focus Control | Fixed |
Name
Description
Size
Downloads
File
Data Sheet
0.5mb
File
Quick Start Guide
1.1mb
