N484E62S - EOL Replacement: N484E62B
Part number:
N484E62S
Price:

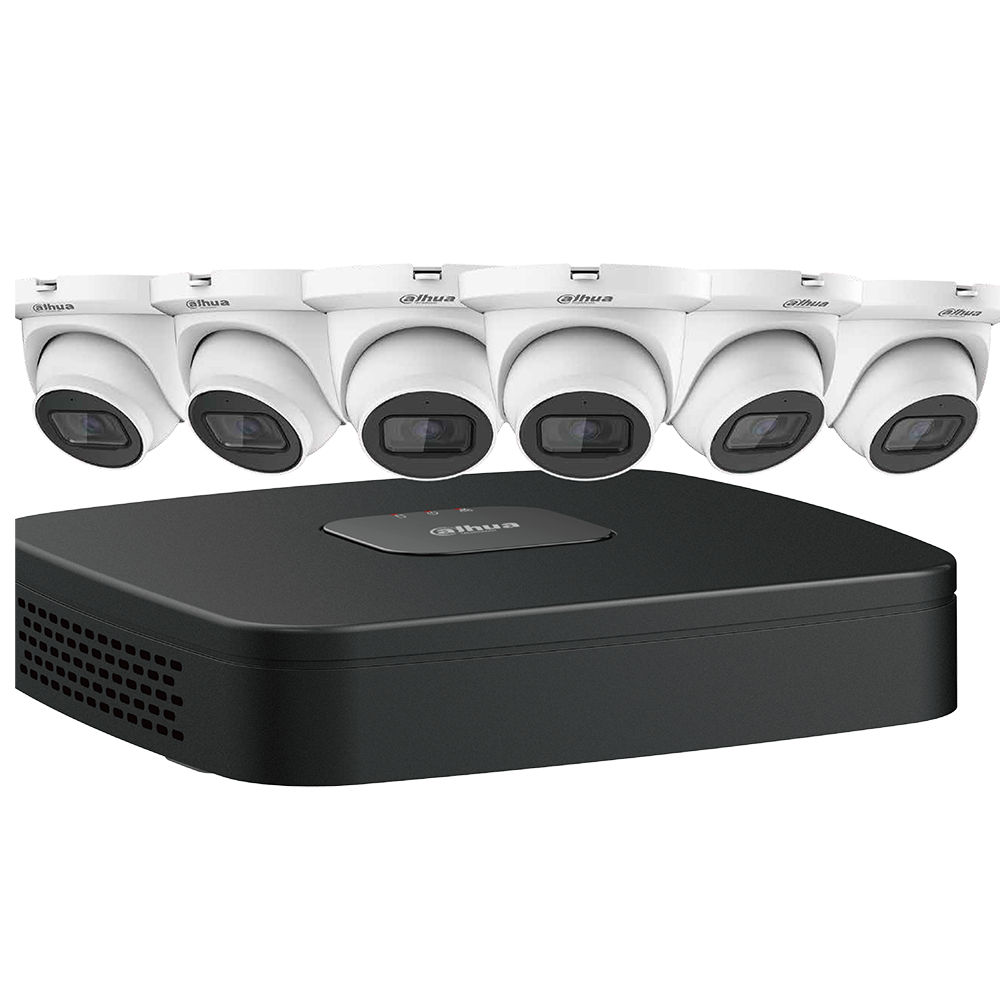

Six (6) 4 MP Eyeball Network Cameras with One (1) 8-channel 4K NVR

The Dahua Network Security System provides all the components to quickly install, configure, and employ a complete video surveillance solution. The IP cameras offer the clarity of 4 MP video, and the NVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The NVR also features Plug and Play technology to connect quickly to cameras on the same network. Each component accepts a PoE power supply to facilitate installation.



Features:

  • 2 TB Pre-installed Had Disk Drive
  • Embedded Quad-core Processor
  • H.265 and H.264 Dual Codec
  • Up to 8 MP Resolution for Preview and Playback
  • 80 Mbps Incoming Bandwidth

4 MP Network Cameras

  • 4 MP (2560 x 1440) at 30 fps Maximum Resolution
  • 2.8 mm Fixed Lens
  • Maximum IR Length 30 m (98 ft) with Smart IR
  • Starlight Technology for Ultra Low-light Applications
  • Built-in Microphone
  • Intelligent Video System
  • IP67 Environmental Protection

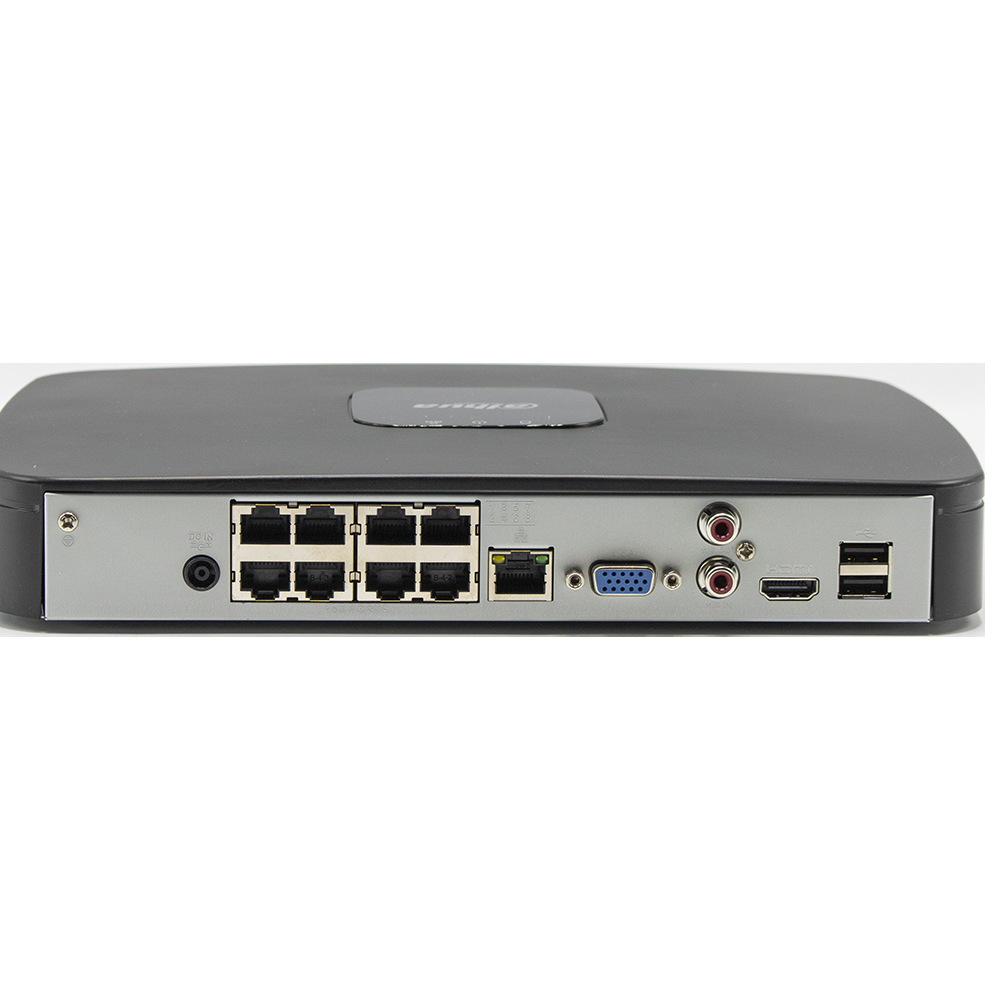

4K Network Video Recorder

  • 2 TB Pre-installed Had Disk Drive
  • Embedded Quad-core Processor
  • H.265 and H.264 Dual Codec
  • Up to 8 MP Resolution for Preview and Playback
  • 80 Mbps Incoming Bandwidth

Camera

Image Sensor1/3-in. CMOS
Effective Pixels2688 (H) x 1520 (V), 4 MP
ROM/RAM128 MB / 128 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto, Manual: 1/30 s to 1/100000 s
Minimum IlluminationColor: 0.008 lux at F1.6
0 Lux with IR on
IR DistanceUp to 30.0 m (98.43 ft)
IR On/Off ControlAuto, Manual
IR LEDsTwo (2)

Lens

Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm
Max ApertureF1.6
Angle of ViewHorizontal: 102°
Vertical: 55°
Diagonal: 121°
IrisFixed Aperture
Close Focus Distance0.90 m (2.95 ft)
