Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.
PathFinder
Easy and secure remote connection with NAT Traversal (STUN/TURN) support without opening ports.
C3 CMS
C3 CMS takes video management to the next level. You are in complete command to control all your video surveillance systems in one intuitive interface. Easy-to-program alerts let you take action in real-time and manage the health of your devices.

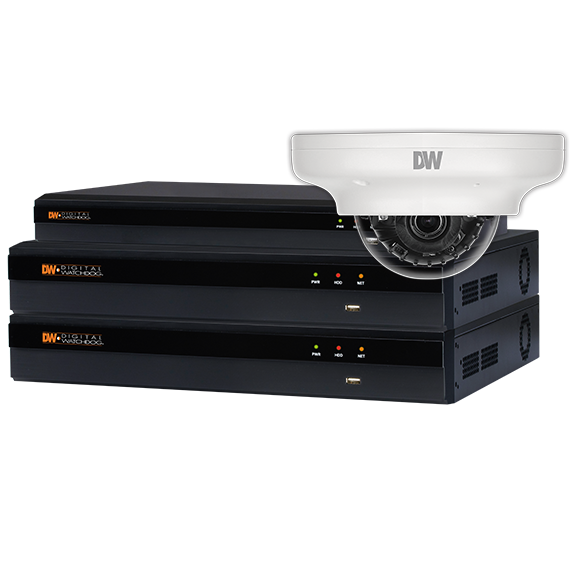

Ultra Low-Profile Vandal Dome Housing
The micro dome cameras are small and discrete, ideal for high-end applications where the cameras integrate into the overall design. HD video surveillance in a small and sleek design allows for discrete installations.
Features
- Kits w/ 2TB, 3TB and 4TB of storage capacity.
- Supports all ONVIF conformant IP cameras.
- Record/manage single-sensor IP cameras up to 4K, with 160Mbps maximum throughput.
- Local power for 4 IP cameras via resident PoE switch.
- Kits w/ 4, 8, or 16 ultra low-profile vandal dome IP cameras with 2.8mm fixed lens.
- Smart IR, D-WDR, H.265, H.264, MJPG.
| Operating system | Embedded Linux |
| Video compression | H.265, H.264 |
| Channel | 9 channel |
| Number of PoE | 4 Ch |
| Maximum resolution | IP camera maximum 4K (3840×2160) |
| Communication protocol | ONVIF |
| PoE type | 100Mbps, 802.3at |
| Speed | 270fps |
| Screen mode | 1, 4 and 9 |
| Monitor | True HD and VGA |
| Resolution | 1024x768, 1280x720, 1280x1024, 1920x1080, 2560x1600, 3840×2160 (4K) |
| Recording speed | Up to 270fps up to 4K resolution |
| Maximum throughput | 80 Mbps |
| Maximum HDD bay | 2x HDDs, up to 32TB storage |
| Recording resolution | Dual-stream |
| Recording modes | Continuous, scheduled, sensor and motion detection, pre- and post-alarm, emergency, quick backup |
| Speed | x1, x2, x4, x8, x16, x32, x64, x99 |
| Function | Timeline, calendar (date and time), event search, thumbnail search, smart motion search |
| Audio input/output | 1 output |
| Alarm input/relay output | 4 inputs/1 output |
| PTZ control | RS-485, ONVIF |
| Transaction verification | Text-in Based (USB to Serial support, TCP/IP Network) |
| LAN | Gigabit Ethernet (RJ45) |
| Web viewer | Live, playback and configuration up to 10 multiple connections |
| Client monitoring software | Mac, C3 CMS, DW Mobile Plus mobile app |
| Backup device | Local backup by USB, network backup by CMS |
| System recovery after power failure | Auto-reboot and journaling file system |
| Firmware upgrade | FTP, USB and CMS over Network |
| Back-up | Import and export settings, watermark and AVI file backup |
| Special features | Local PoE switch Snapshot Notify: Programmable interval camera image verification sent to an email Event notifications via email, text and C3 CMS and push notifications to mobile devices Real-time temp alert Digital zoom in live and playback |
| Mobile client | DW Mobile Plus app, DW Witness |
| Health check | Real-time system, network and PoE status monitoring |
| System operation | IR remote controller (sold separately), USB mouse, PTZ control by keyboard (optional) |
| Power requirements | 48V D/C |
| Power consumption | 90W total power budget, 1.875A 19W per PoE channel (simultaneous) |
| Total PoE power budget | 76W |
| Maximum power per port | 30W |
| Operating temperature and humidity | 41~104 °F (5~40 °C) / 20~90% RH |
| Dimension (W x D x H) | 14.96” x 12.4” x 2.02” (380 × 315 × 51.5 mm), 1U |
| Certification | CE , FCC, KCC, WEEE, RoHS |
| Warranty | 5 year limited |
