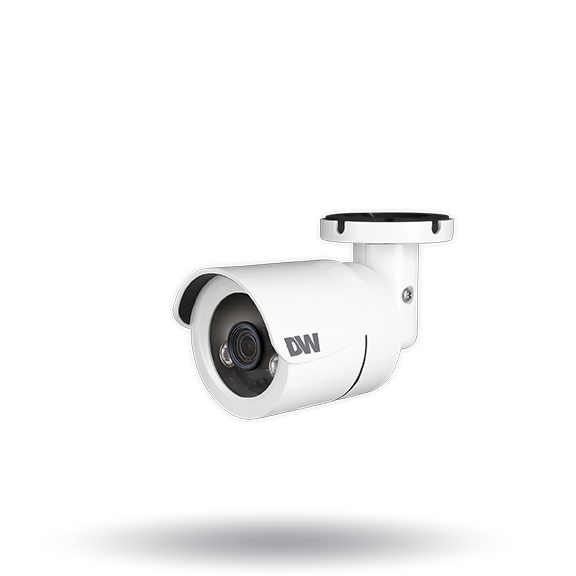

Digital Watchdog - DWC-B7553WTIRW - Star-Light Plus Universal HD Series, Weatherproof Bullet, 5MP@20fps/4MP@30fps, HD-Analog, HD-TVI, HD-CVI and all Legacy Resolutions, 4mm Lens, T-WDR, 70ft IR, TDN with IR Cut Filter, Smart 3D-DNR, OSD Control Via C
Part number:
DWC-B7553WTIRW
Price:
Featuring Star-Light Plus color in near-total darkness, 5MP Star-Light Plus Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI. The weather resistant bullet cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax cameras are engineered to work with our VMAX A1 Plus DVRs using your existing coax infrastructure for a cost effective, high resolution surveillance solution
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 4.0mm fixed lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 70' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog extreme weather image compensation
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- UL listed
- IP66 environmental-rated dust-tight and water-resistant
- NDAA compliant
- 5 year warranty
| IMAGE | |
|---|---|
| Active Pixels | 2608 (H) x 1960 (V) |
| Frequency | 50Hz, 60Hz |
| Image sensor | 5MP 1/2.8" CMOS sensor |
| Maximum resolution | 5MP, HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps, HD-Analog, HD-TVI and HD-CVI: 2.1MP/1080p @ 30fp, HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps, HD-Analog, HD-TVI and HD-CVI: 720p @ 30fp |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.16 lux (color) |
| Scanning System | Progressive scan |
| Signal technology | HD-Analog, HD-CVI, HD-TVI, Universal HD over Coax® technology |
| LENS | |
| Focal Length | 4.0mm |
| Horizontal Field of View (HFOV) | 82° |
| IR Distance | 70' range Smart IR™ |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 60° |
| OPERATIONAL | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Camera Control | Pelco C, UTC |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Gamma | 0.45 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Privacy Zones | 24 programmable provacy zones |
| Sharpness | Yes |
| Shutter Mode | Auto |
| Shutter Speed | 1/30 ~ 1/30000 |
| Star-Light (sense up) | Off, x2-x32 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| ENVIRONMENTAL | |
| Compliance |    |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| MECHANICAL | |
| Camera Dimensions (H X W X D) | 6.41" x 2.65" (163 x 67.5 mm) |
| Camera Weight | 1.10 lbs (0.5kg) |
| Housing | Bullet |
| Housing Color | White |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting |
| ELECTRICAL | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V (LED on): 3.9W, 333mA, DC12V (no LED): 2.0W, 176mA |
| GENERAL | |
| Warranty | 5 Year Warranty |
