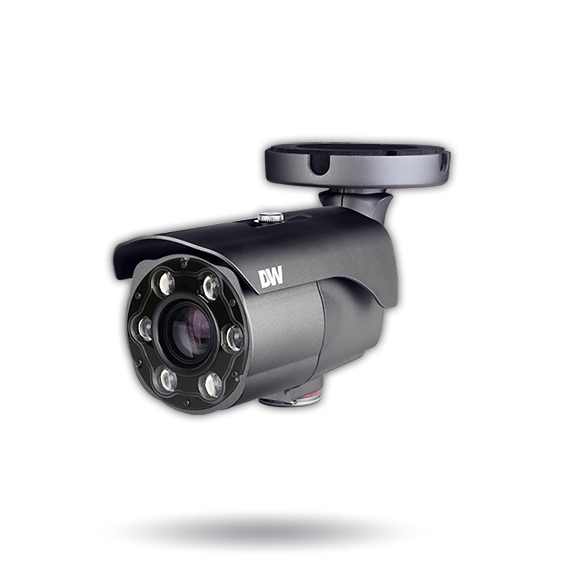

This MEGApix IP camera provides 5MP resolution at real-time 30fps. It includes a 2.7~13.5mm vari-focal auto-focus lens with motorized zoom, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus color in near-total darkness technology for quality video in any lighting condition, all in an IP66-rated weather resistant bullet housing. All MEGApix® cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 5MP 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- Cold start -40°F (-40°C)
- 140' Smart IR with intelligent camera sync
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
IMAGE | ||
| Image sensor | 5MP 1/2.8” CMOS | |
| Total pixels | 2592 (H) × 1944 (V) | |
| Minimum scene illumination | 0.08 lux (color) | |
| 0.0 lux (B/W) | ||
| Video output | Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio | |
LENS | ||
| Focal length | 2.7 ~ 13.5mm, F1.4 | |
| Lens type | Vari-focal p-iris lens with motorized-zoom and auto-focus | |
| Field of view (FoV) | 85° ~ 31° | |
| IR distance | 140ft range | |
| Optical zoom | x5 optical zoom | |
I/O | ||
| Audio in / out | 1/1 | |
| Audio compression | G.711 | |
| Alarm in / out | 1/1 | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, anti-flicker, slow shutter | |
| Shutter speed | 1/30 ~ 1/32,000 | |
| Slow shutter | 1/2,1/3,1/5,1/6,1/7.5, 1/10 | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W) | |
| Smart DNR™ 3D digital noise reduction | 3D DNR | |
| Wide dynamic range (WDR) | True WDR (T-WDR) On, Off | |
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zones | 16 programmable privacy masks | |
| Mirror and flip | Yes | |
| Alarm notifications | Notifications via e-mail, FTP, alarm output and SD card recording | |
| Memory slot | Micro SD / SDHC / SDXC (card not included) | |
NETWORK | ||
| LAN | RJ45 (10/100Base-T) | |
| Video compression type | H.265, H.264, MJPEG | |
| Resolution | H.265: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | H.264 / H.265 : 32Kbps ~ 14Mbps MJPEG : 1Mbps ~ 40Mbps | |
| Bitrate control | H.265 dual-stream or simultaneous H.265 / H.264 / MJPEG | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4, IPv6 | |
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF | |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66 certified | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) | |
| Power consumption | DC12V: max 9W PoE: max 10.5W | |
MECHANICAL | ||
| Material | Aluminum bullet housing | |
| Dimensions | 9.73” x 3.8” (247.2 x 96.7mm) *Dimensions based on the position of the sun shield cover | |
| Weight | 1.98 lbs (0.9kg) | |
| Warranty | 5 year warranty | |
