ELK - E27SYS1 - Alarm Engine E27 System Kit with Metal Enclosure
Part number:
E27SYS1
Price:

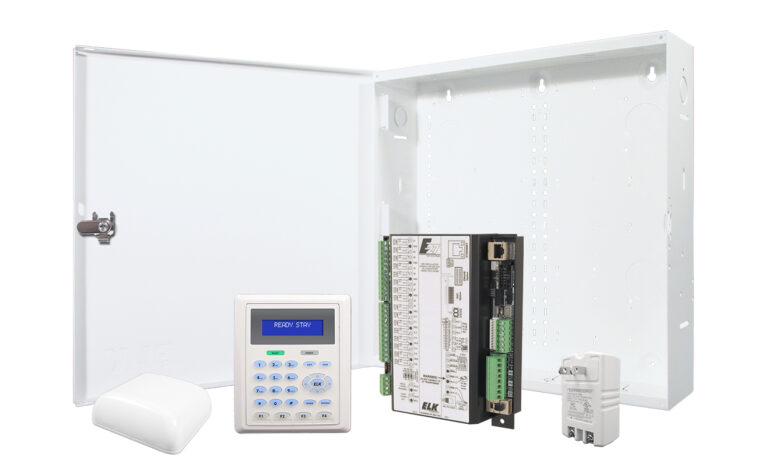

E27 Alarm Engine Kit with Metal Enclosure - ELK-E27SYS1, This package includes:
E27 Alarm Engine Control Board, AEKP LCD Keypad, SWB14 Metal Enclosure, P1426 Power Supply, 73 Echo Paintable Interior Speaker.
Features:
Intrusion & Safety
- Comprehensive detection and reporting with hybrid flexibility - wired, wireless, or both.
Wireless Detection
- Supports Two-Way Wireless or 319.5 MHz wireless sensors
Wi-Fi Connectivity
- For ease of installation when a wired network connection is not available
ElkConnect
- Advanced app and cloud portal streamlines system configuration, management, and control
Automation
- Simplified scheduling and dynamic rules engine for unrestricted customization
Z-Wave Integration
- Easy configuration and intelligent control of lights, thermostats, locks, and more
| Specification: | |
| Large zone capacity | 16 on-board zones expandable to 128 |
| Wireless capability | Up to 128 zones |
| Areas/partitions | Up to 8 |
| Users | Up to 199 |
| User groups | Up to 10 |
| On-board Outputs | 2 Alarm Outputs, 1 form “C” relay and 10 voltage (12VDC, 50mA) outputs |
| Z-Wave Support | 64 Lights, 8 Door Locks, 4 Thermostats, 4 Garage Doors, On-board Ethernet port, Wi-Fi Support with optional Wi-Fi adapter |
Name
Description
Size
Downloads
File
Hardware Guide
0.4mb
File
E27 Alarm Engine Flyer
0.6mb
File
Quick Start Guide
1.4mb
